A/C Schematic - Manual Revision

90ford19 ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1988 - A/C-HEATER SCHEMATIC UPDATED

ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - A/C-HEATER SCHEMATIC UPDATED
Article No. 90-12B-5
FORD: 1988-89 TEMPO

LINCOLN-MERCURY: 1988-89 TOPAZ












ISSUE: The schematic on page 60 of the 1988 and 1989 Tempo/Topaz EVTM does not show all applications for the entire circuit. The schematic also shows an incorrect color code for circuit # 758.

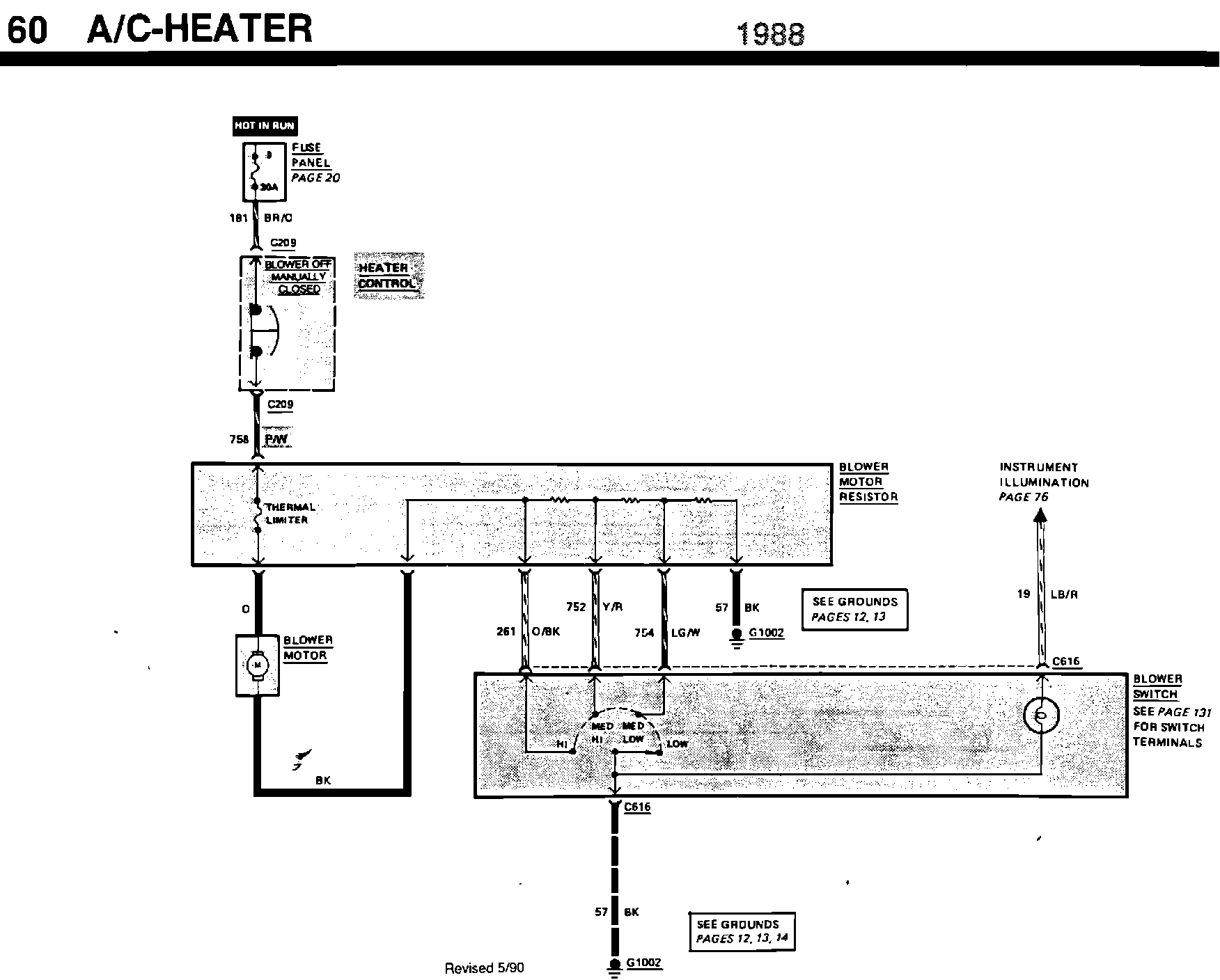

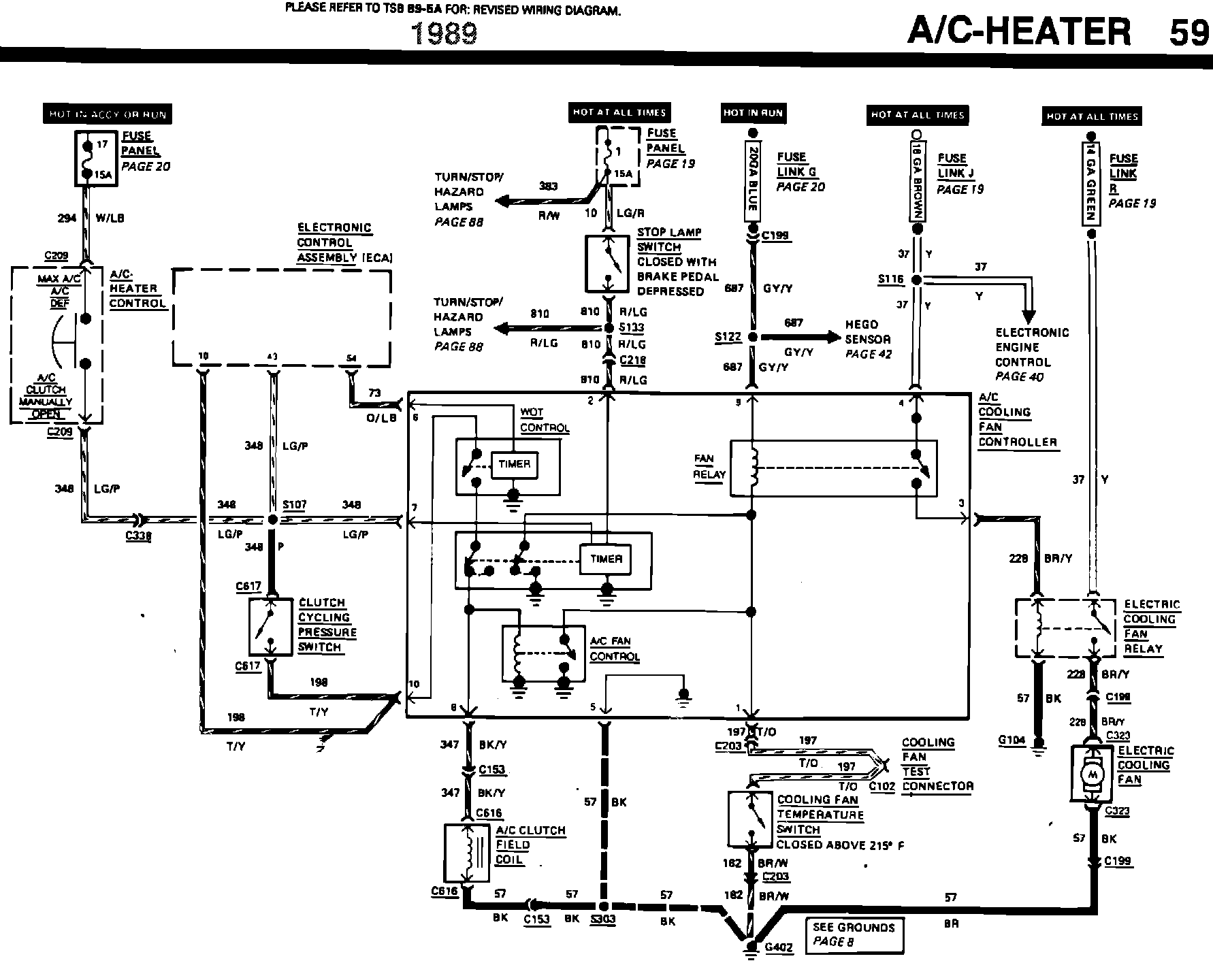

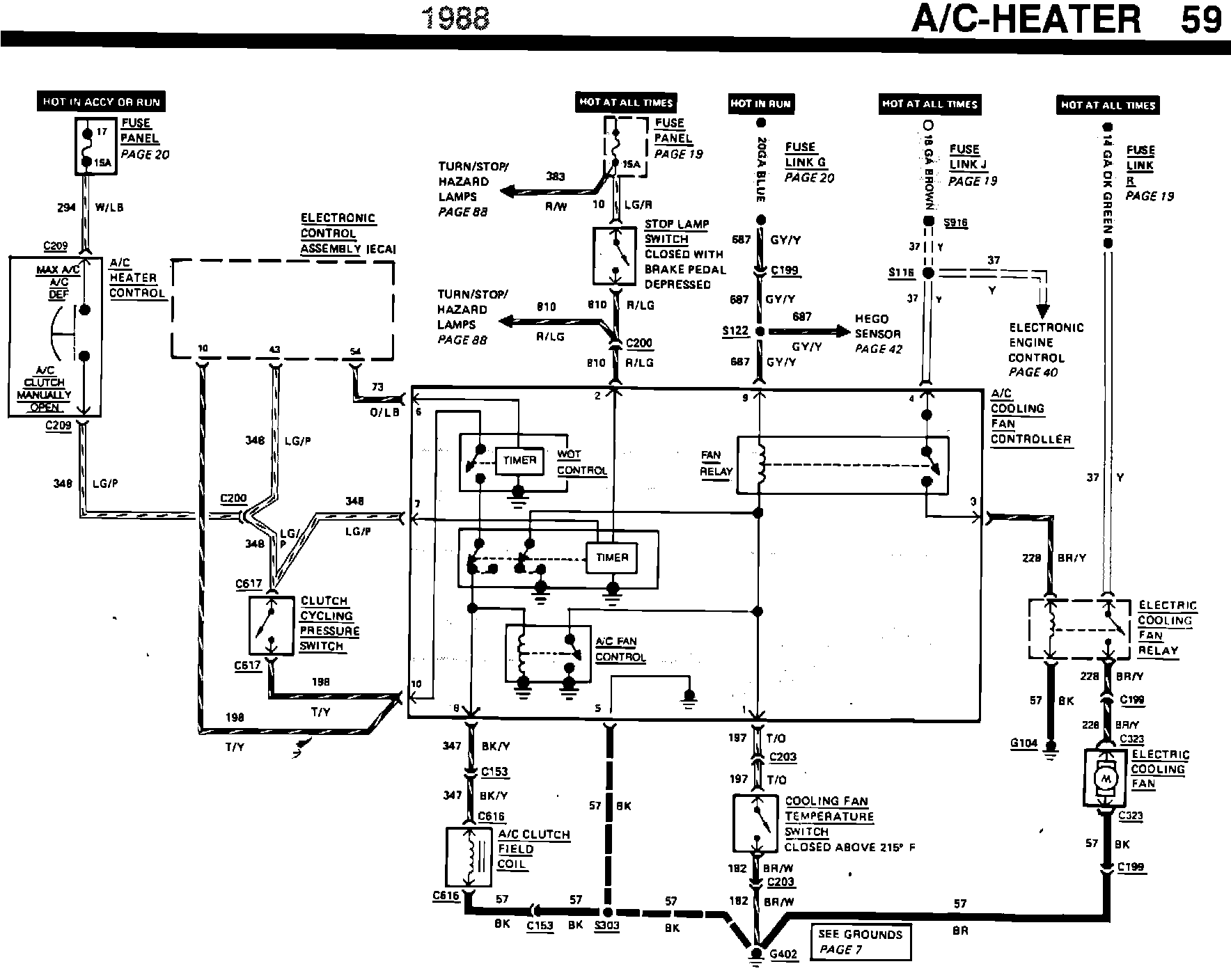

ACTION: Refer to the pages following this TSB article for the updated schematic.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
