Removal

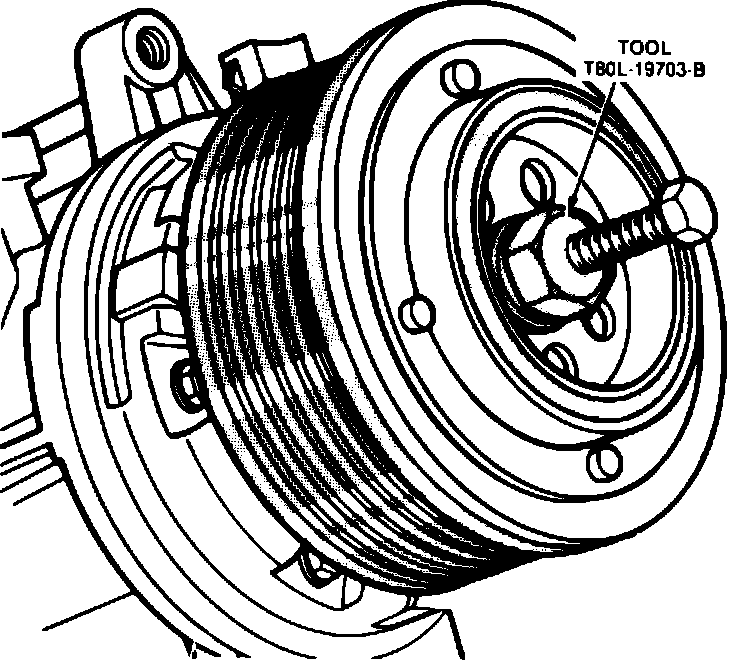

Fig. 1 Clutch hub removal:

1. Remove clutch hub retaining nut using spanner wrench T81P-19623-MH or equivalent.
2. Remove clutch hub and shims from compressor shaft with tool T80L-19703-B or equivalent, Fig. 1. Holding tool with 1 inch wrench, tighten bolt with 1/2 inch wrench.

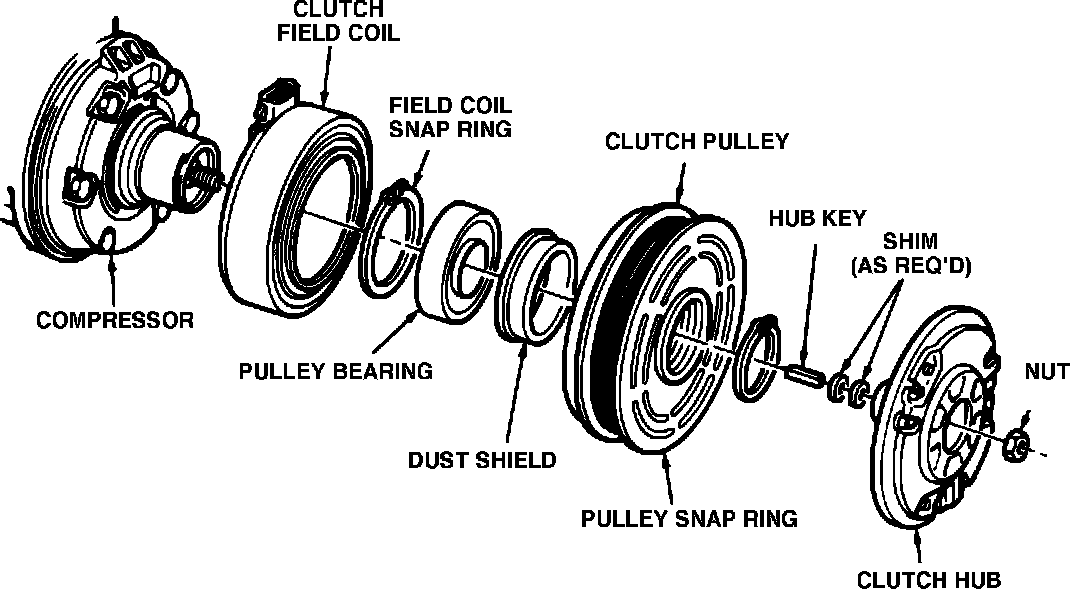

Fig. 2 Disassembled view of clutch assembly. FS-6:

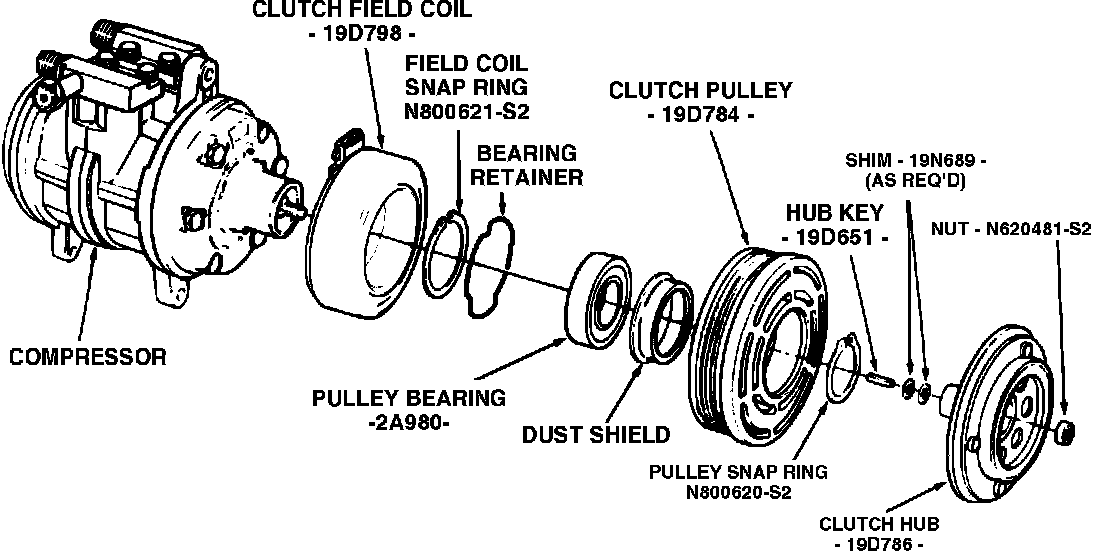

Fig. 3 Disassembled view of clutch assembly. 6P148:

3. Remove clutch pulley retaining snap ring, Figs. 2 and 3.

Fig. 4 Clutch pulley removal:

4. Remove pulley and bearing assembly from compressor. If pulley and bearing assembly cannot be removed by hand, use a suitable puller, Fig. 4.
