Blower Motor: Service and Repair

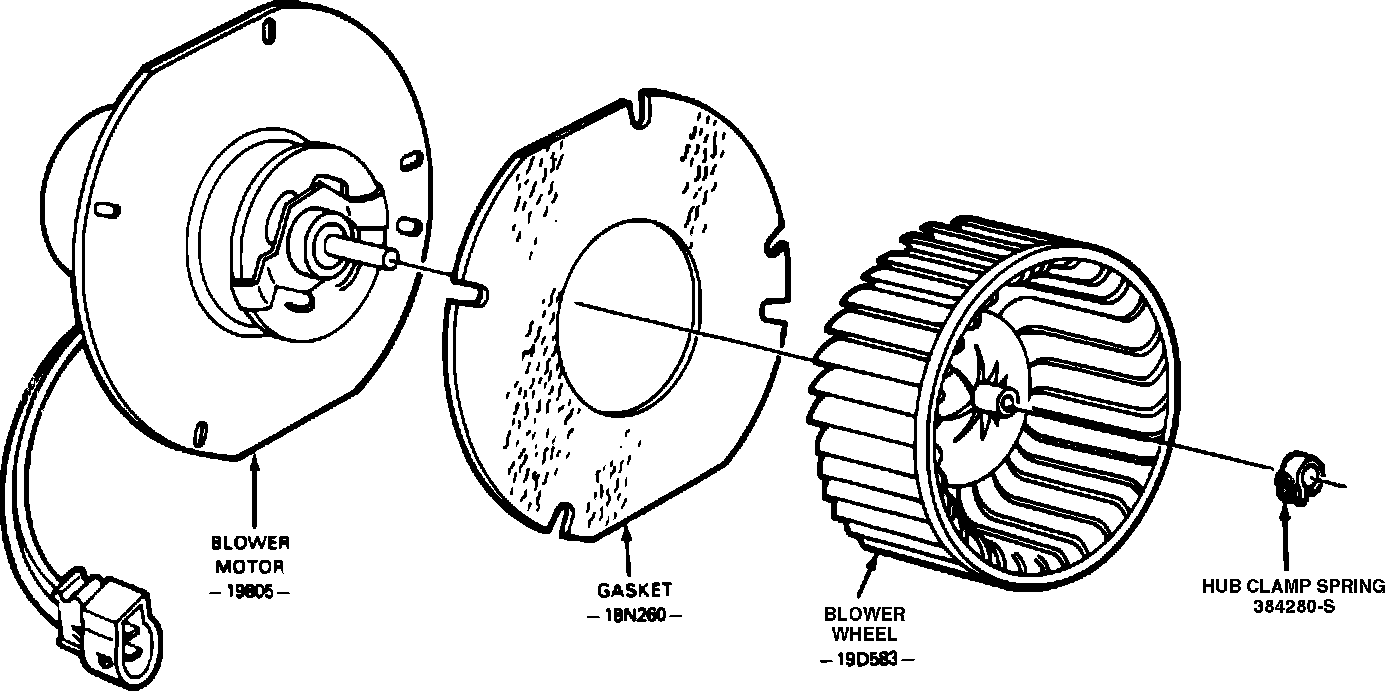

Fig. 33 Blower motor & wheel assembly removal:

1. Disconnect battery ground cable.
2. Remove glove compartment door.
3. Disconnect blower motor wires from the blower motor resistor.
4. Loosen instrument panel at lower righthand side prior to removing motor through glove compartment opening.
5. Remove four screws attaching the blower motor and mounting plate to evaporator case.
6. Rotate the motor until mounting plate flats clear edge of glove compartment opening and remove motor.
7. Remove hub clamp spring from blower wheel hub, Fig. 33.
8. Remove blower wheel from the motor shaft.
9. Reverse procedure to install.
