Engine Mount: Service and Repair

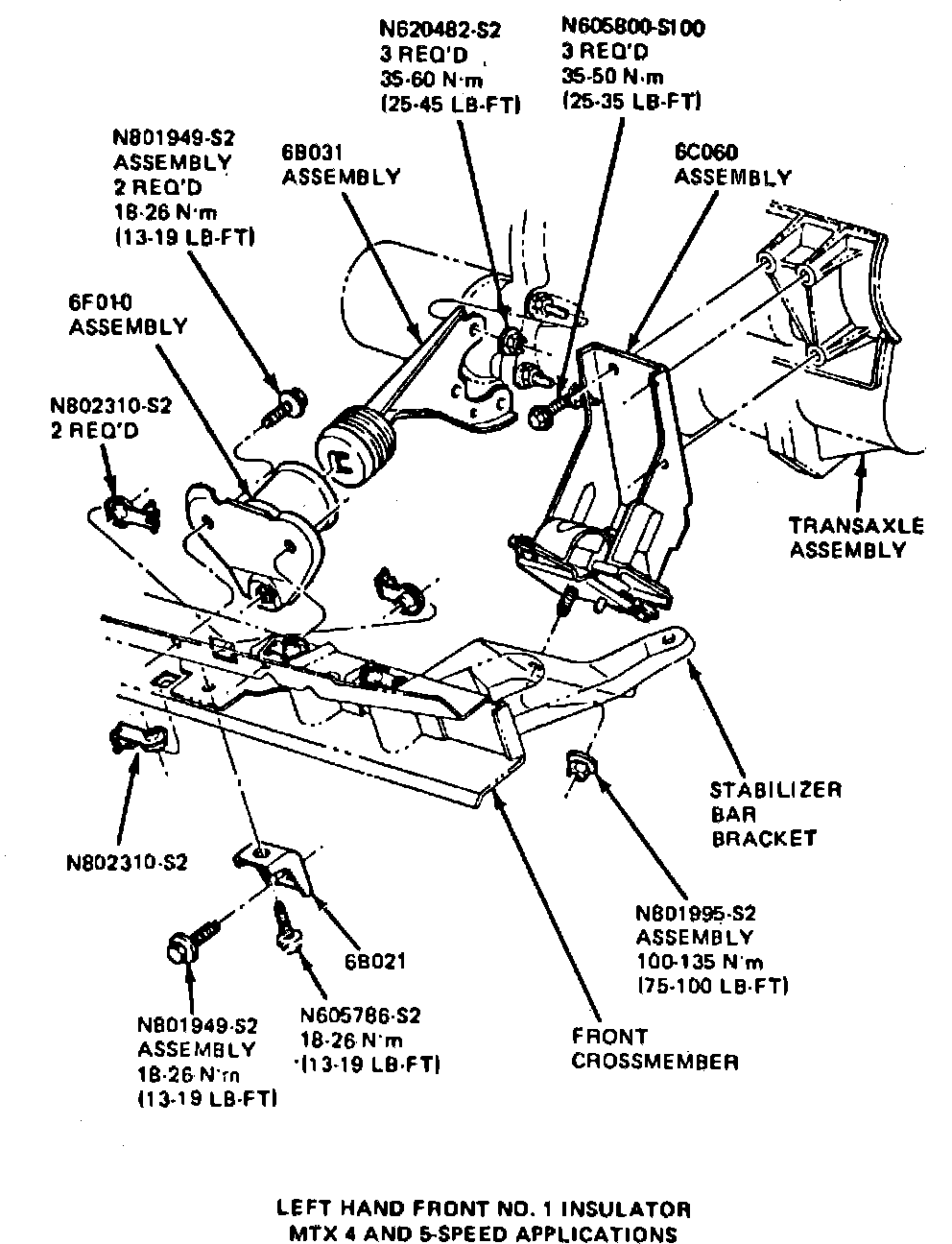

Fig. 1 Lefthand front No. 1 insulator. 4 & 5 speed manual transaxle:

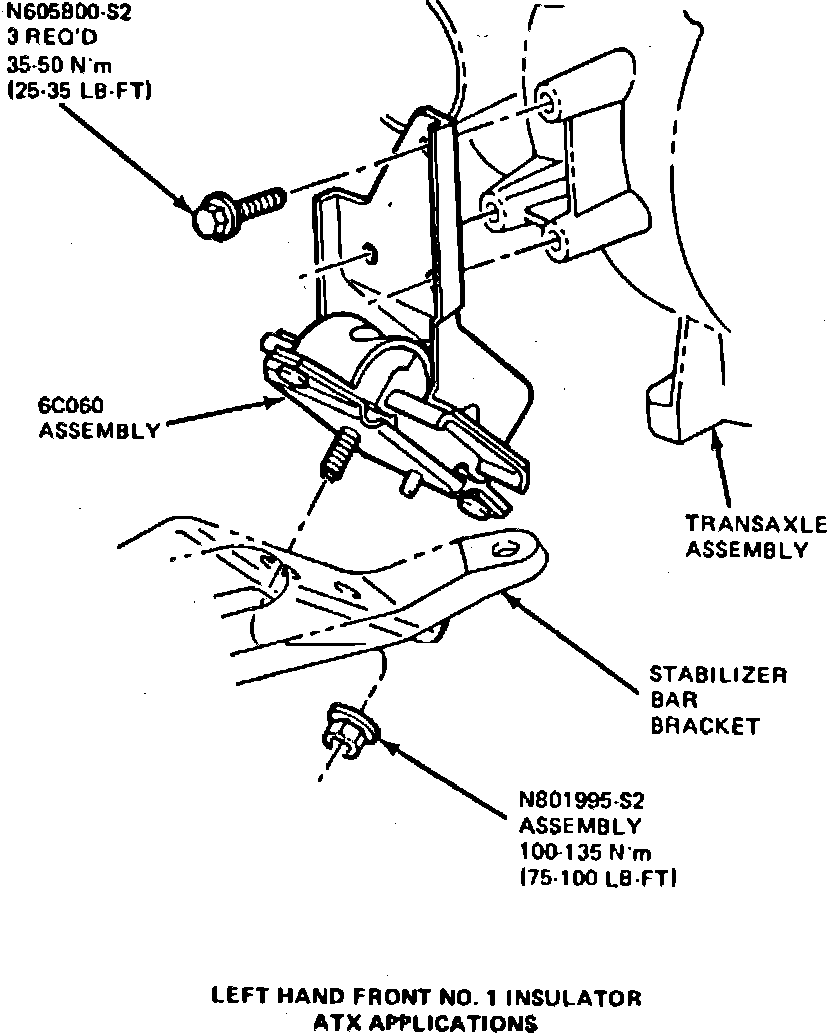

Fig. 2 Lefthand front No. 1 insulator. Automatic transaxle:

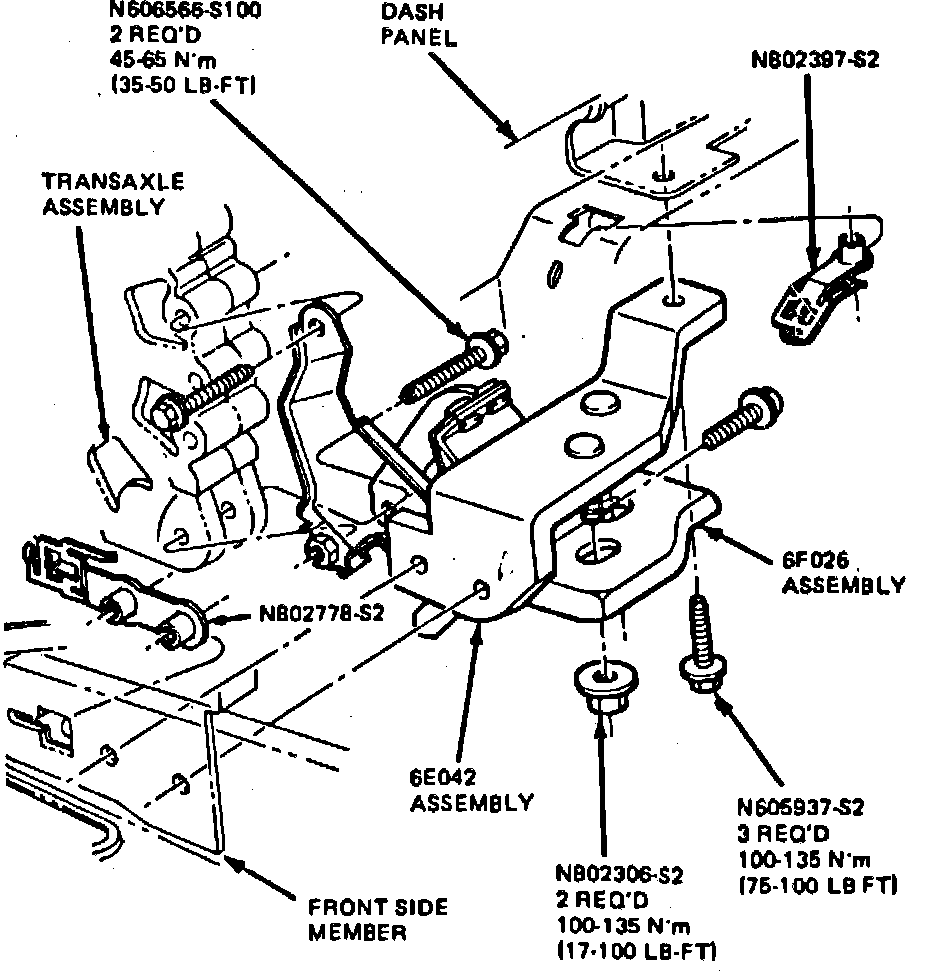

Fig. 3 Lefthand rear No. 4 insulator. 4 speed manual transaxle:

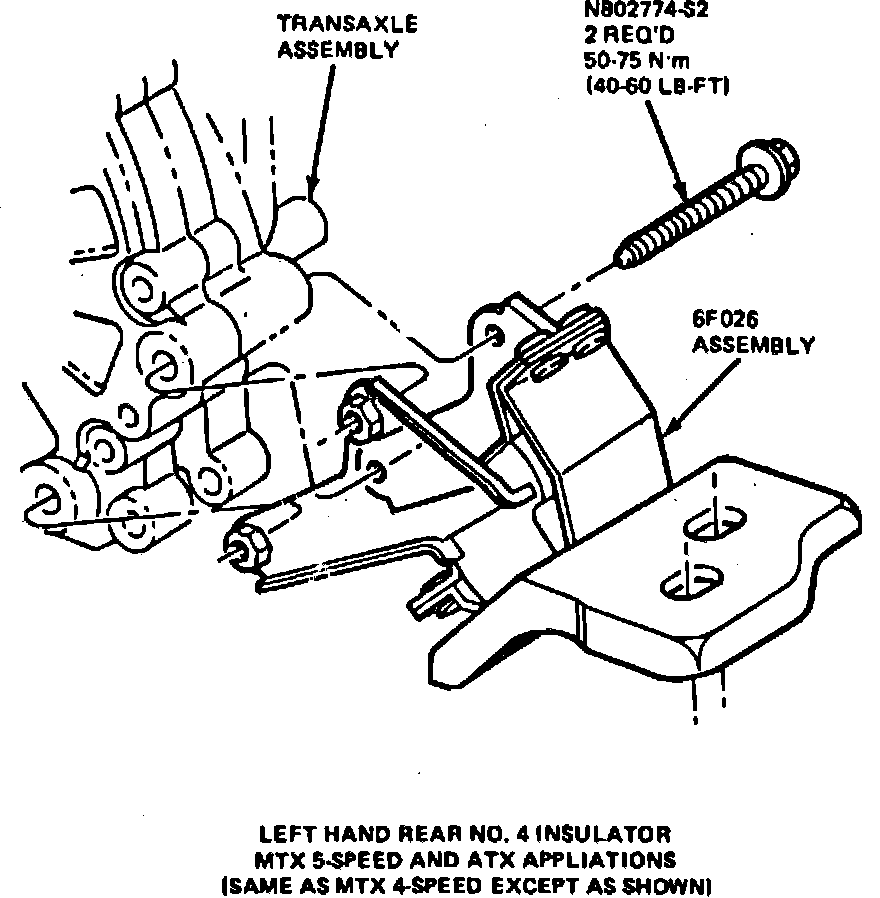

Fig. 4 Lefthand rear No. 4 insulator. 5 speed manual & automatic transaxle:

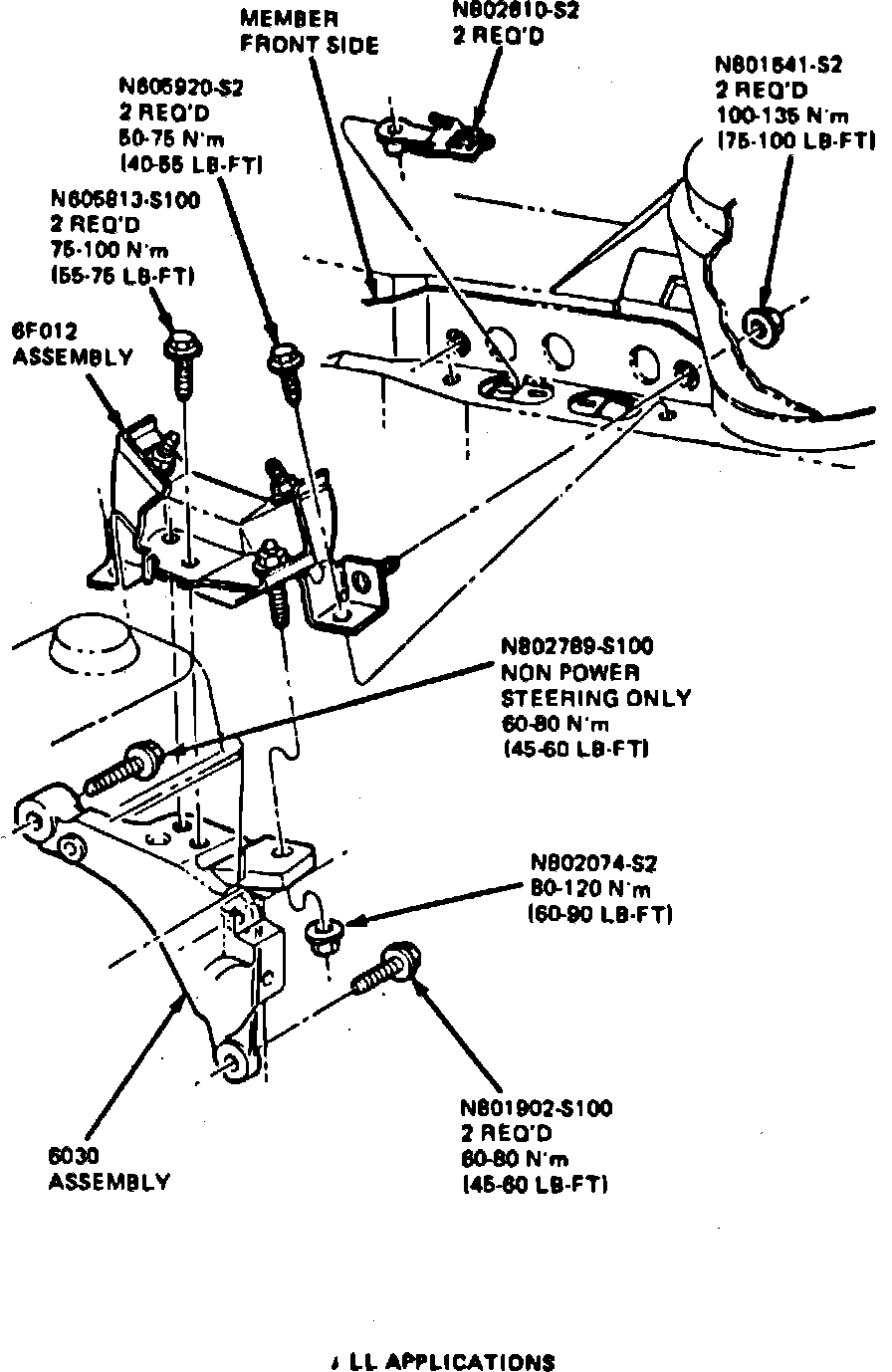

Fig. 5 Righthand No. 3A insulator. All:
