Seatbelt Retractor Wiring Circuit

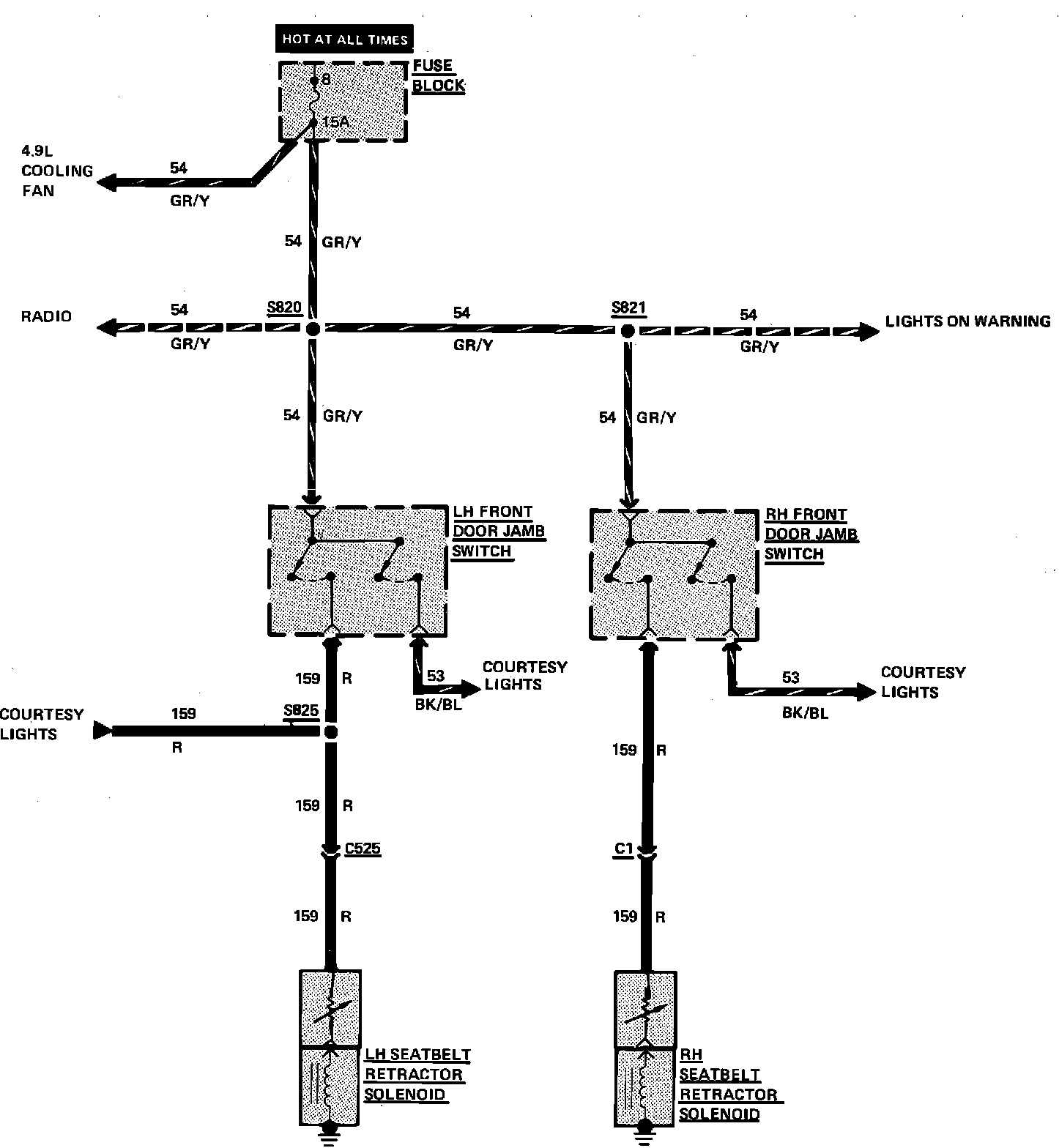

Fig. 54 Seatbelt Retractor Wiring Circuit:

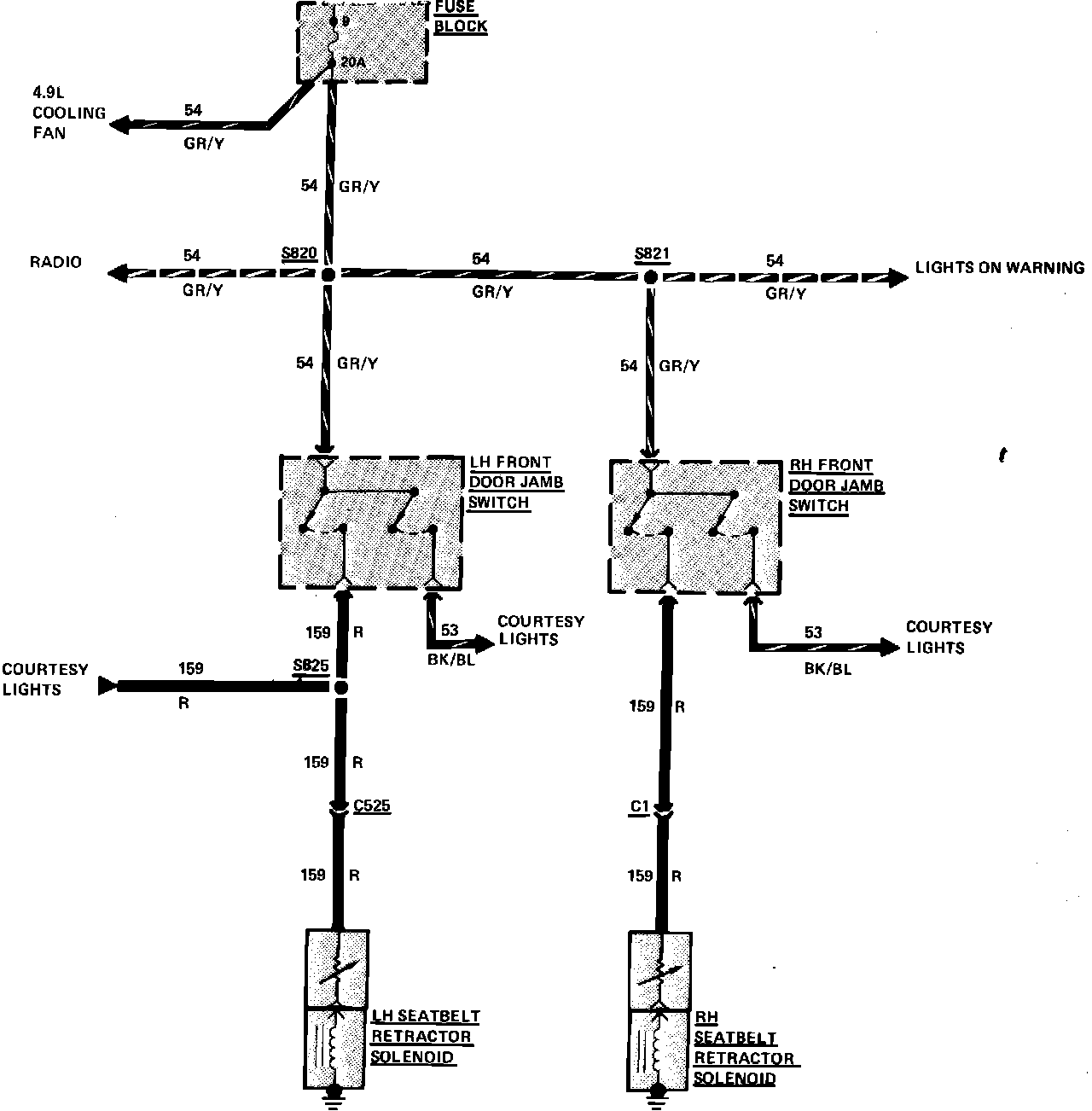

Seatbelt Retractor Wiring Circuit:
