Home >> Mercury >> 1988 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> 2 Door

2 Door

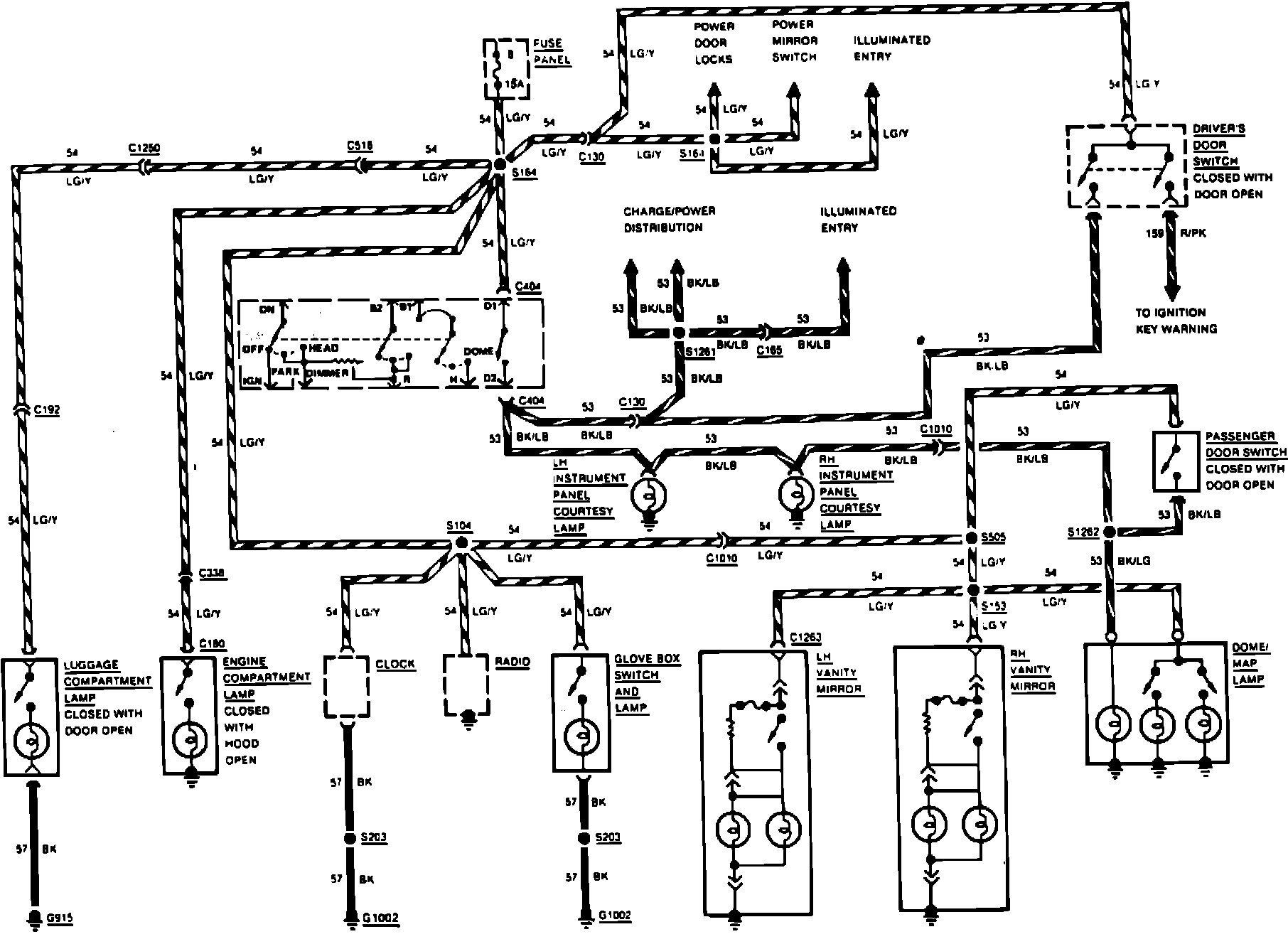

Fig. 9 Courtesy Lamps Wiring Circuit. 2 Door Models:
