Home >> Mercury >> 1988 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X53 - X55

X53 - X55

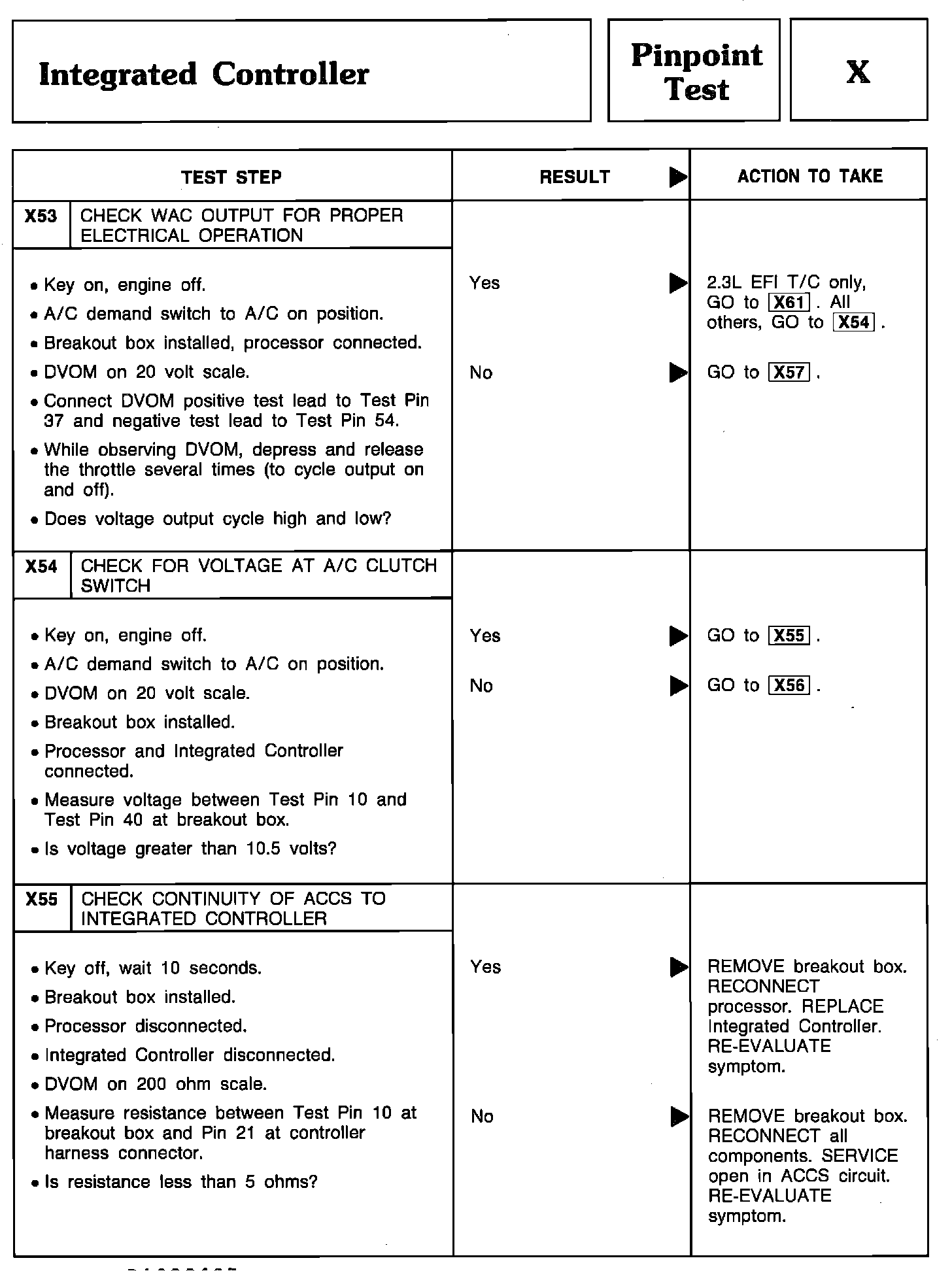

Pinpoint Test X53 Thru X55 - Integrated Controller:
