DD16 - DD18

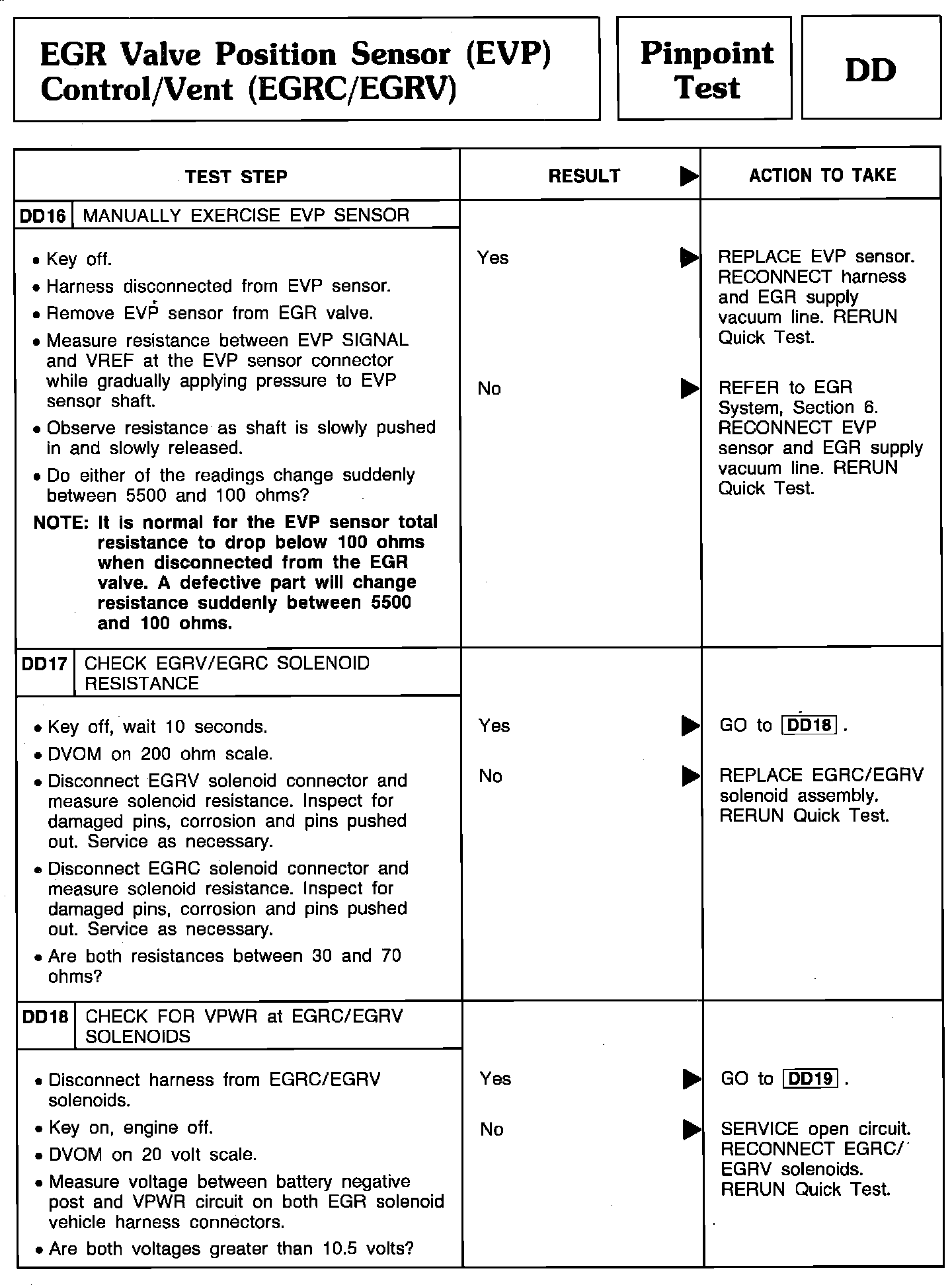

Pinpoint Test DD16 Thru DD18 - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV):
