Home >> Mercury >> 1988 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DA - Vane Air Temperature Sensor (VAT) >> DA10 - DA11

DA10 - DA11

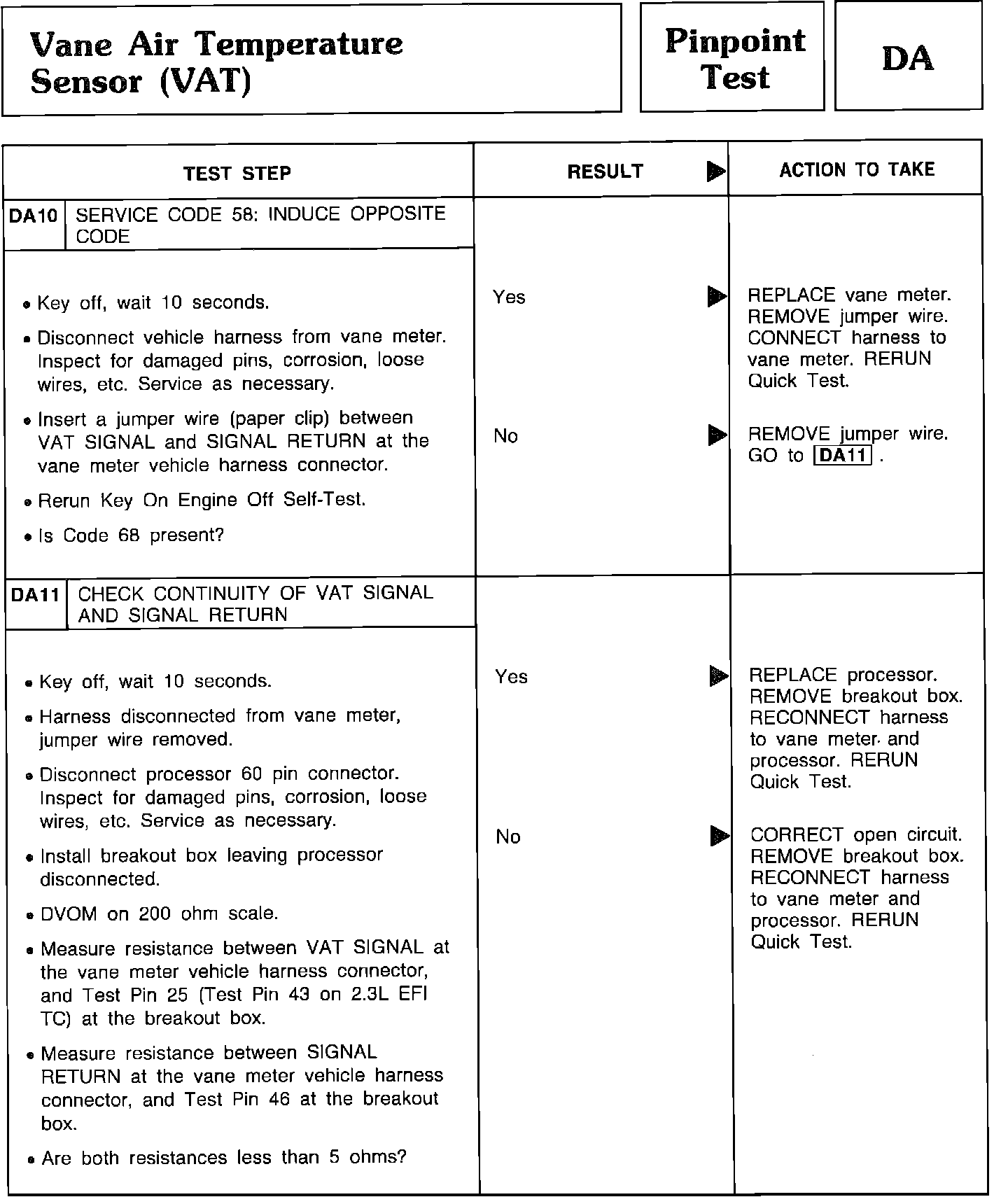

Pinpoint Test DA10 & DA11 - Vane Air Temp. Sensor (VAT):
