Engine Mount: Service and Repair

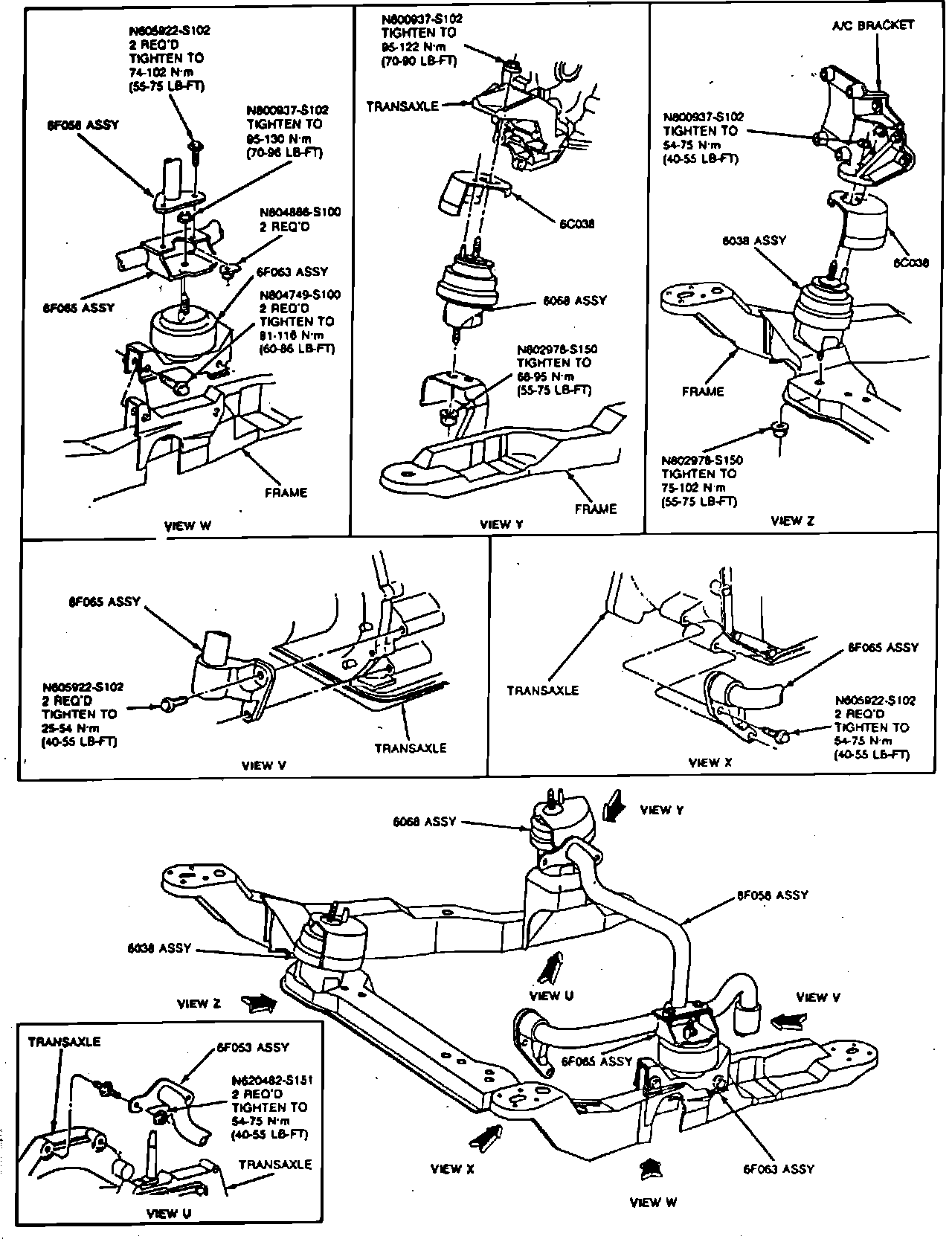

Fig. 1 Engine Mounts:

LH Insulator & Support Assembly

1. Raise and support vehicle.
2. Remove left front tire and wheel assembly, then support transaxle using suitable jack and block of wood.
3. Remove insulator to support attaching nuts, Fig. 1.
4. Remove insulator-to-frame through bolts, Fig. 1, then raise transaxle enough to unload insulator.
5. Remove support assembly to transaxle attaching bolts, then the insulator and/or support assembly.
6. Reverse procedure to install.

RH FRONT

1. Remove A/C compressor and position aside. Do not discharge A/C system.
2. Raise and support vehicle.
3. Remove engine mount-to-A/C compressor bracket attaching nut.
4. Temporarily attach A/C compressor to A/C bracket using two lower bolts.
5. Support engine using suitable jack and block of wood.
6. Remove RH front and LH rear insulator-to-frame attaching nut, Fig. 1.
7. Raise engine enough to unload insulator, then remove insulator.
8. Reverse procedure to install.

RH Rear

1. Raise and support vehicle.
2. Loosen RH front and RH rear insulator attaching nuts, Fig. 1.
3. Remove catalytic converter, then lower vehicle.
4. Using suitable engine support equipment, raise engine one inch and support.
5. Raise and support vehicle.
6. Loosen four sub-frame attaching bolts, then remove insulator attaching nut and insulator.
7. Reverse procedure to install.
