Home >> Mercury >> 1988 >> Sable V6-232 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster >> Analog >> W/Diagnostic Warning Indicators (Part 1 of 2)

W/Diagnostic Warning Indicators (Part 1 of 2)

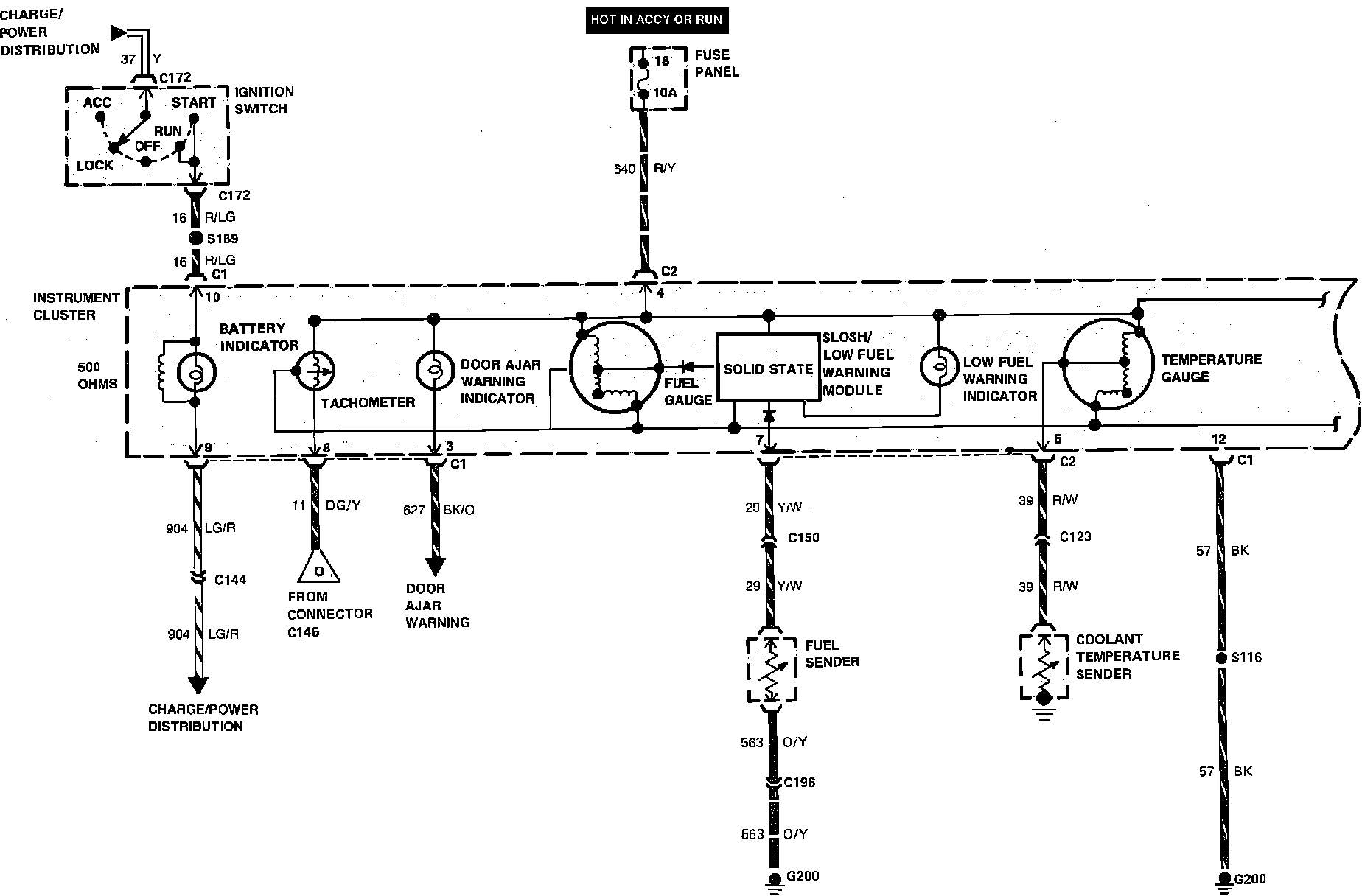

W/Diagnostic Warning/Warning Indicators Part 1 of 2:
