Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Exterior Lighting Module >> Diagrams >> Electrical Diagrams >> With Diagnostic Warning

With Diagnostic Warning

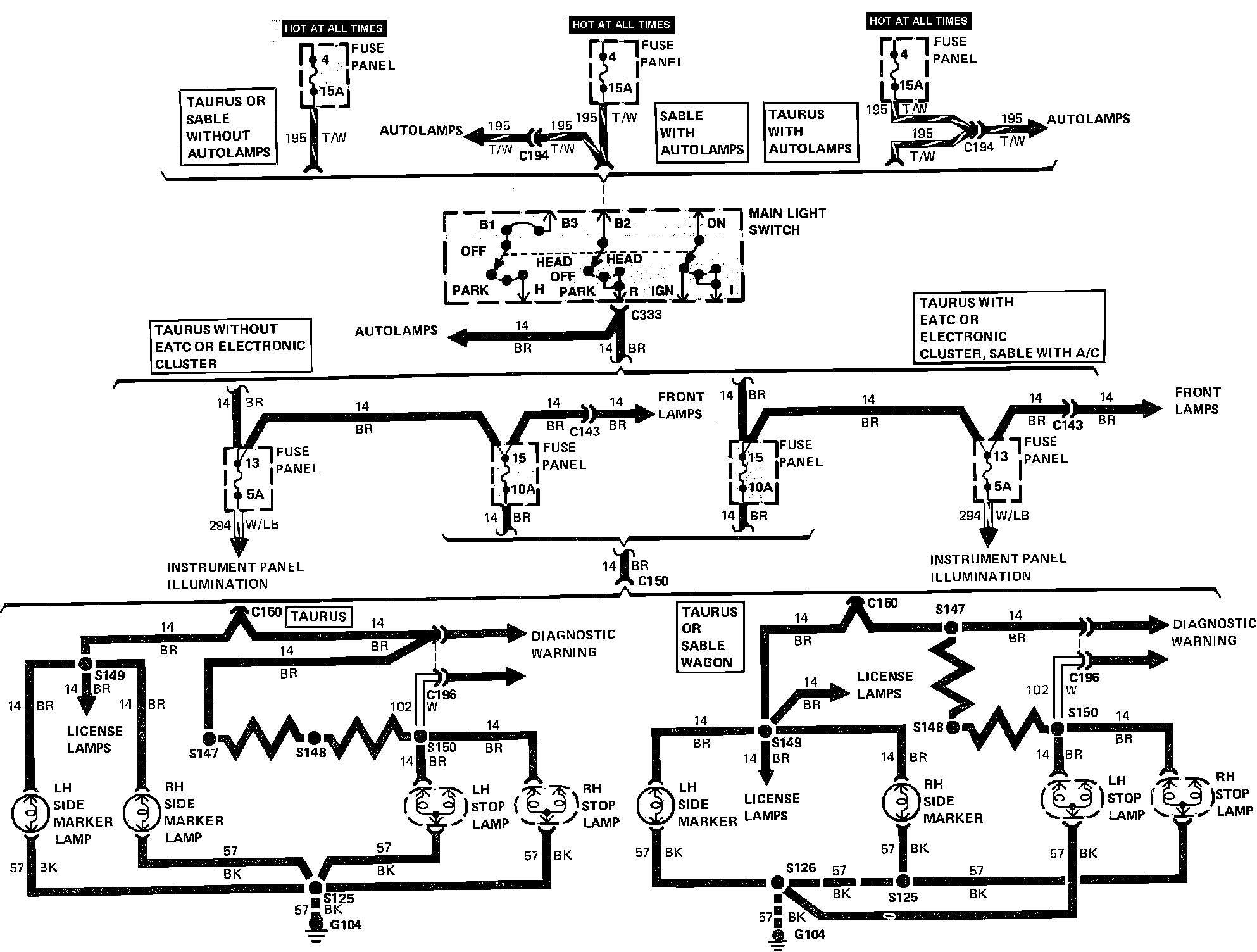

Taurus & Sable Wagon w/Diagnostic Warning:

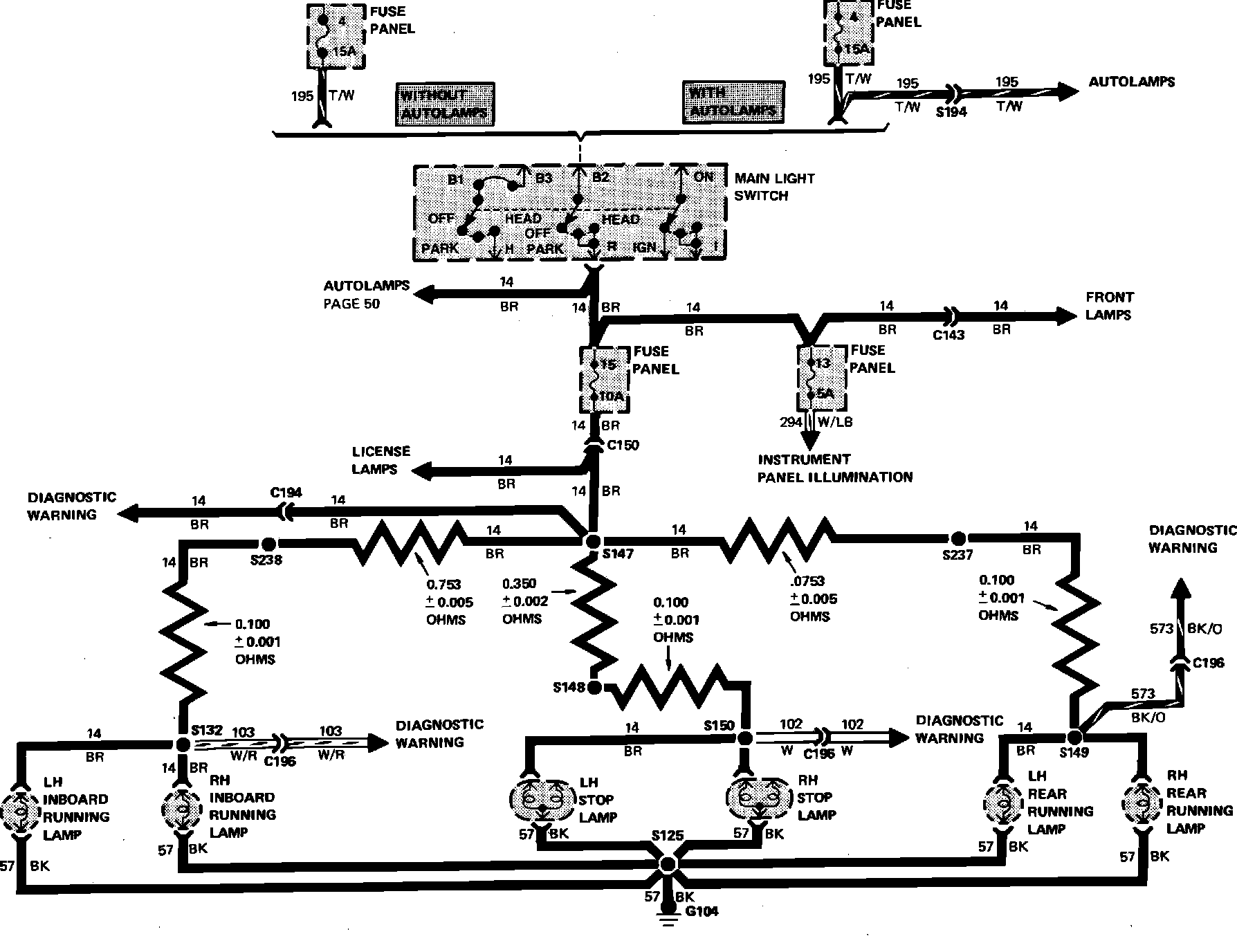

Fig. 18 Exterior Lamps Wiring Circuit. Sable w/Diagnostic Warning:
