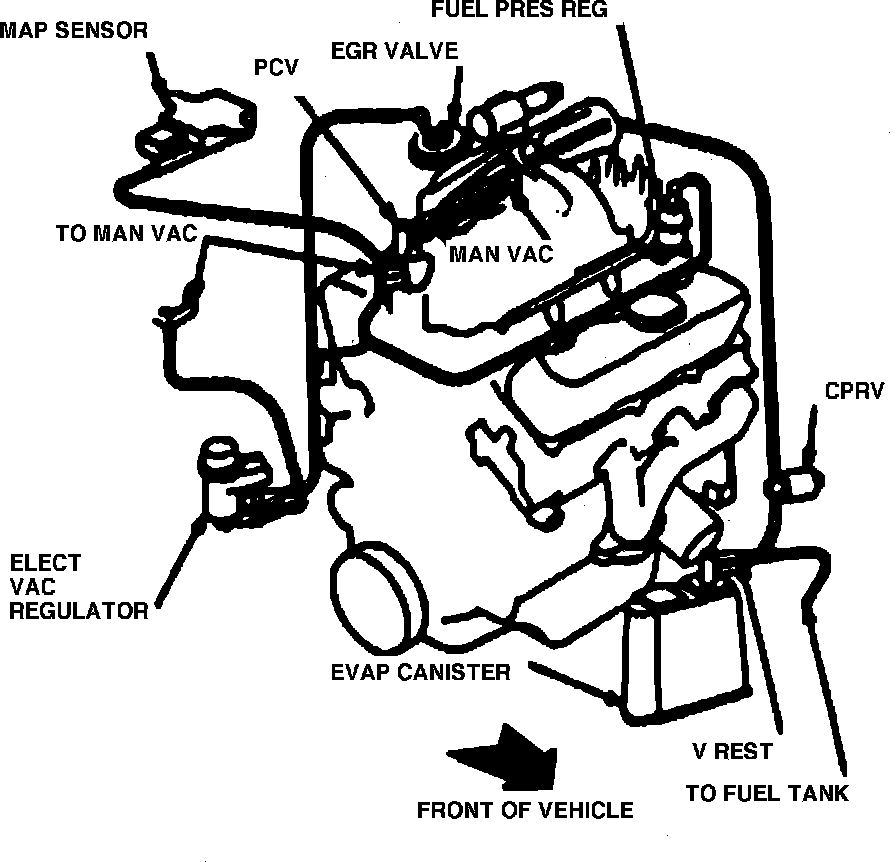

Fig. 13 Calib. Code W/EFI, 8-10S-R00 Calif.
Fig. 13 Calib. Code W/EFI, 8-10S-R00 Calif.
FIG. 13 Calib. Code W/EFI, 8-10S-ROO Calif.:
