Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> X - Integrated Relay Control Module >> X70 Thru X73

X70 Thru X73

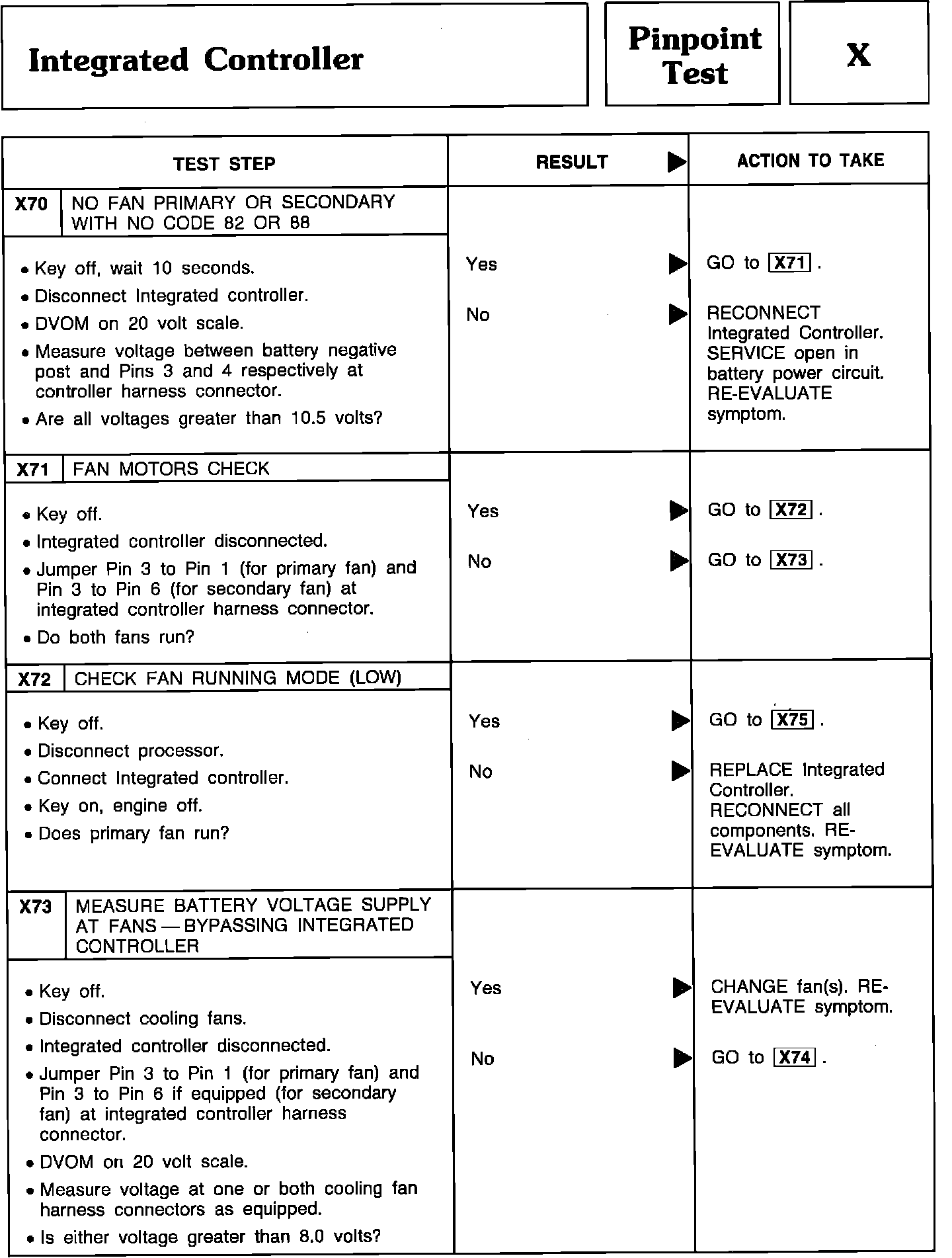

Pinpoint Test X70 Thru X73 - Integrated Controller:
