Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> QC - Output State Check Not Functioning >> QC1 - QC2

QC1 - QC2

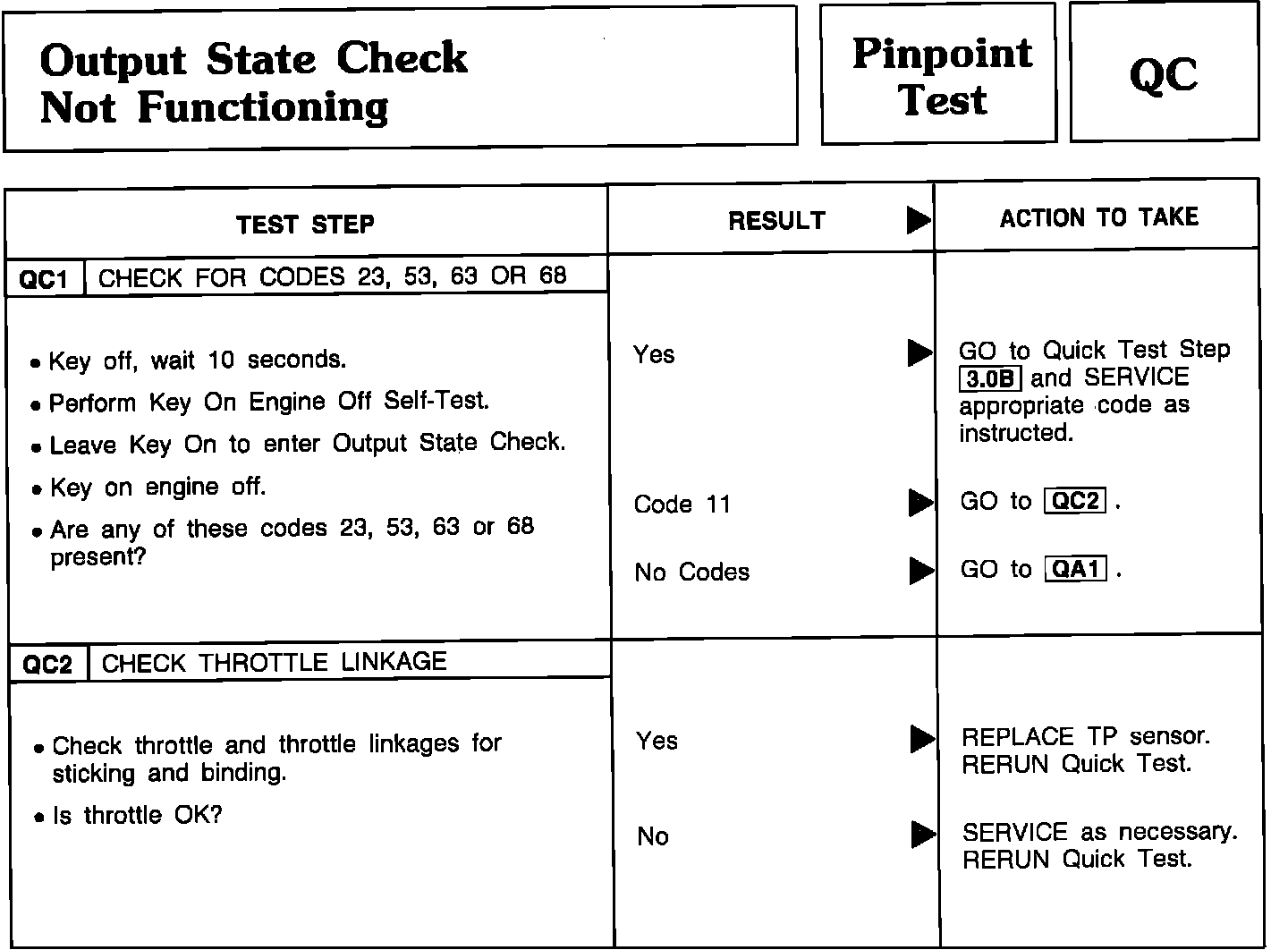

Pinpoint Test QC1 & QC2 - Output State Check Not Functioning:
