Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> N - Ignition Diagnostic Monitor (IDM) >> N4 - N5

N4 - N5

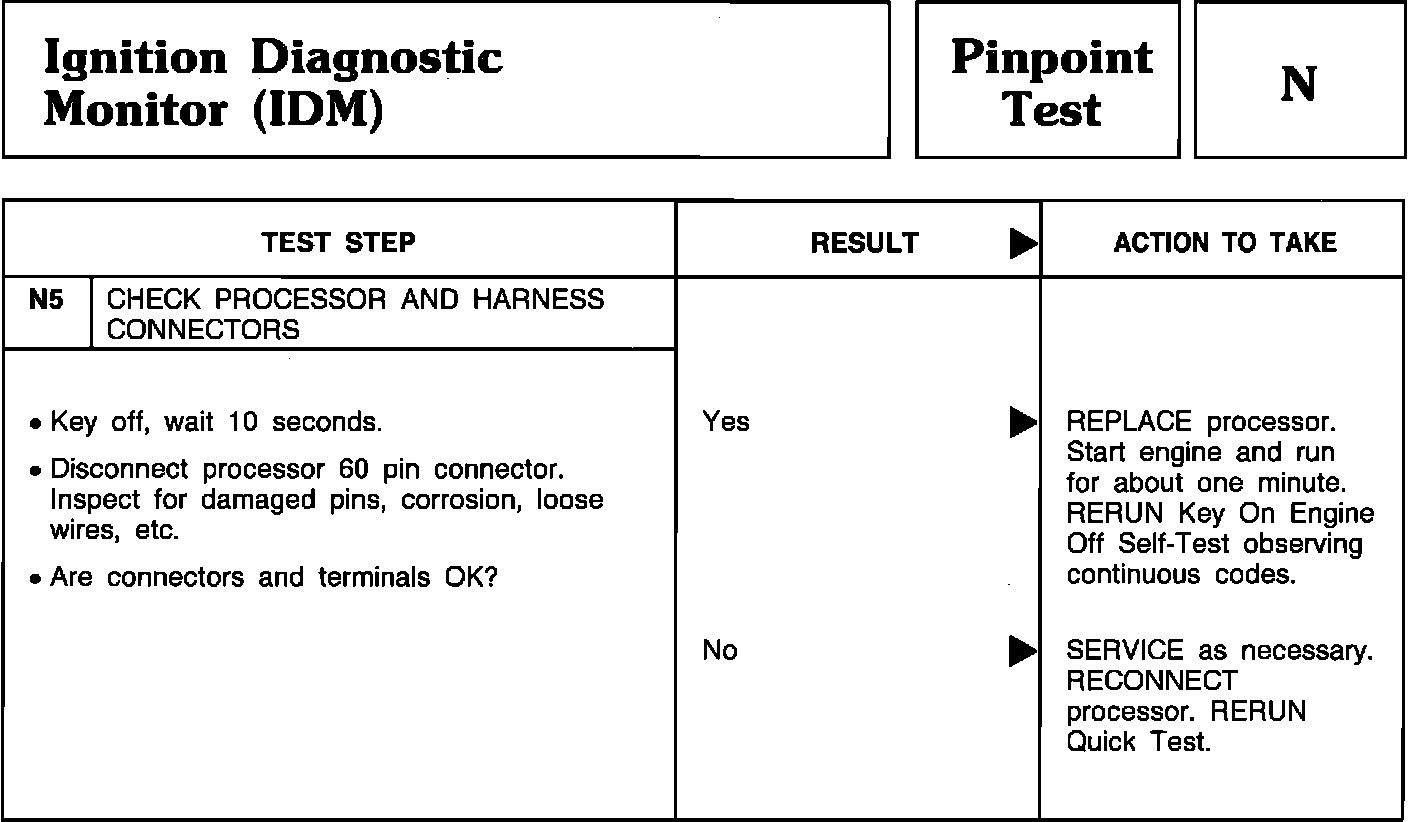

Pinpoint Test N5 - Ignition Diagnostic Monitor (IDM):
