FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1988
>>
Sable V6-182 3.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
KR - Converter Clutch Override/Shift Solenoid 3/4-4/3
>>
KR5 - KR11
KR5 - KR11

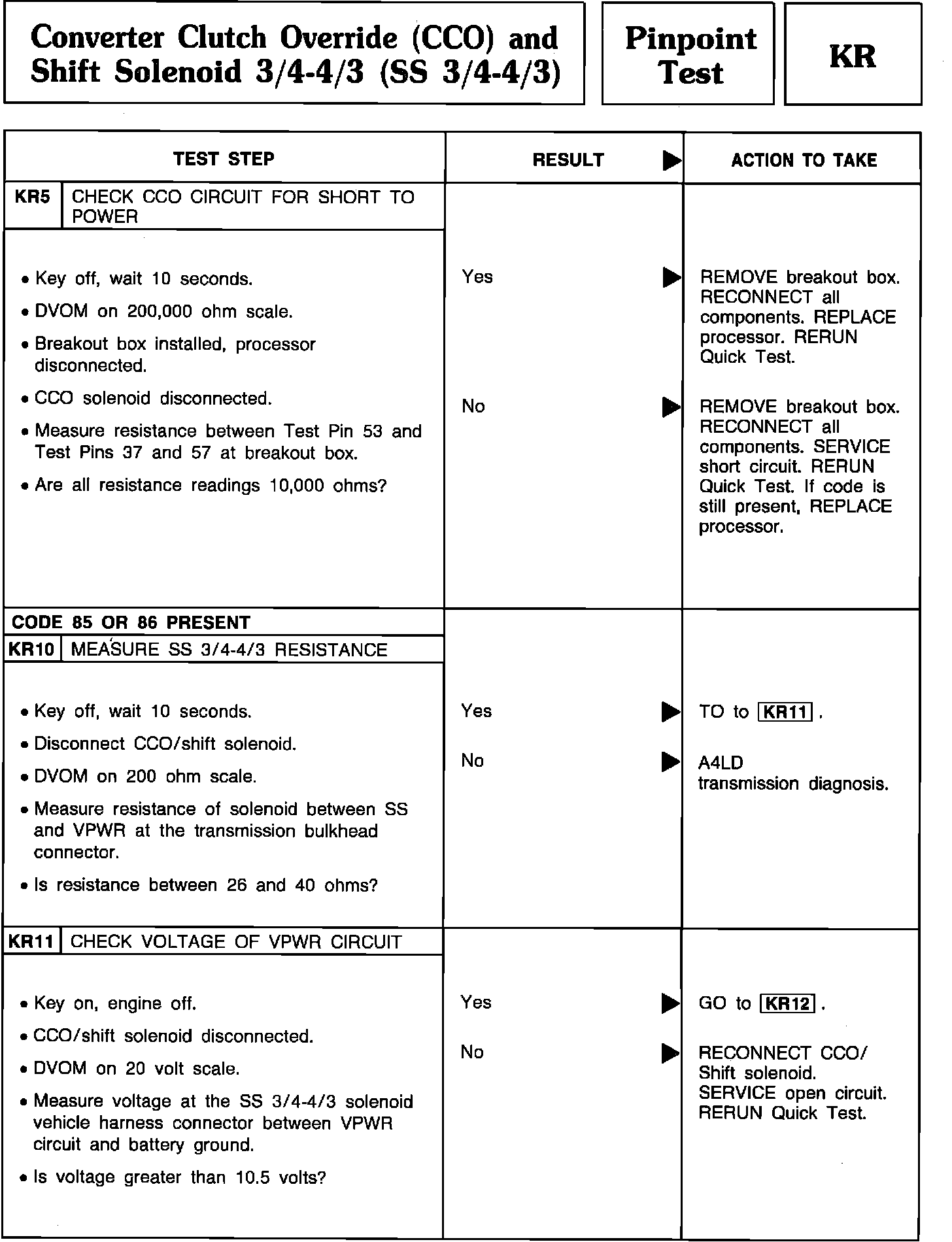

Pinpoint Test KR5 Thru KR11 - Converter Clutch Override (CCO)/Shift Solenoid 3/4-4/3 (SS 3/4-4/3):
