Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KM - WOT A/C Cut-Off (WAC) A/C Demand >> KM - Wiring Diagram

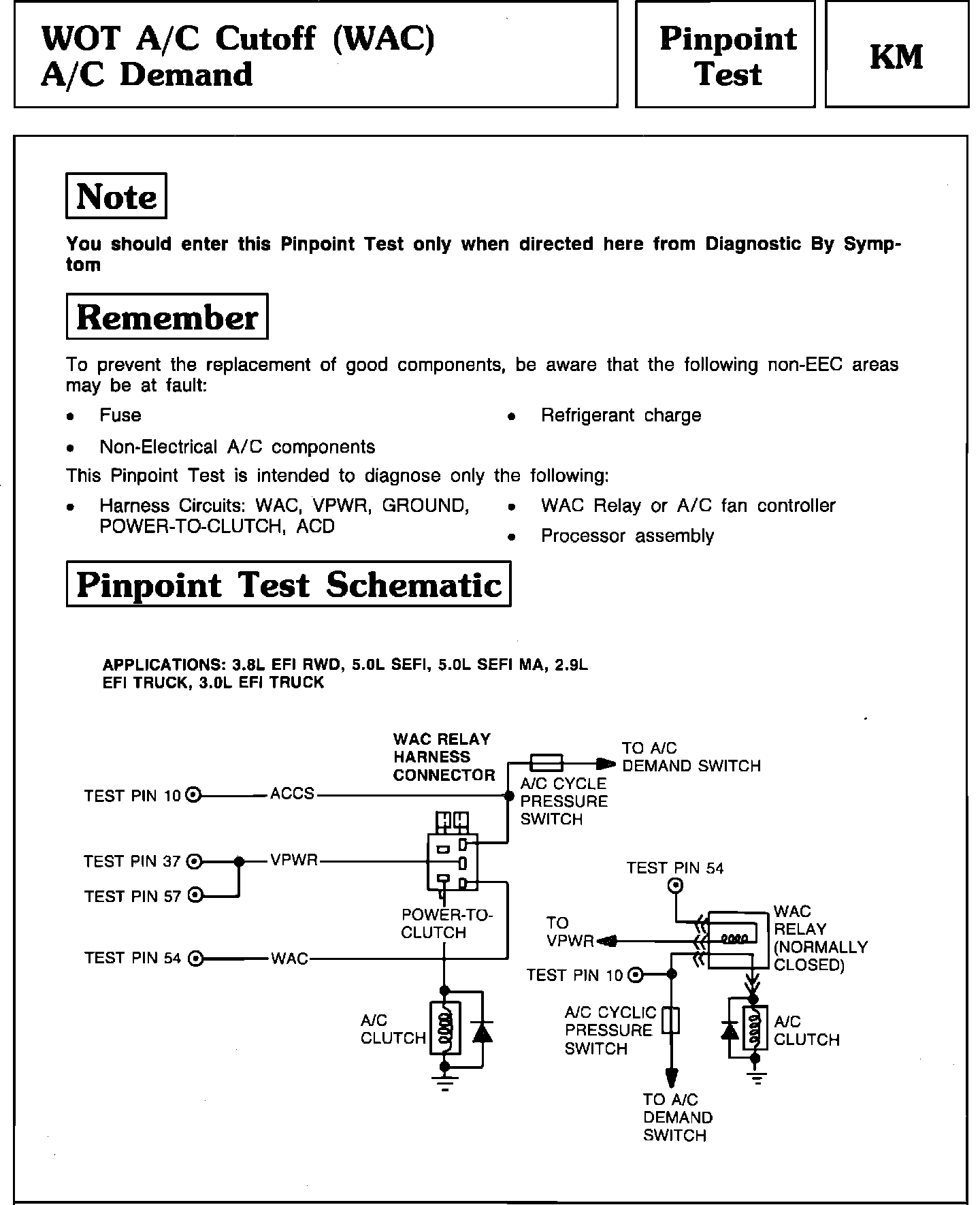

KM - Wiring Diagram

Pinpoint Test KM - WOT A/C Cutoff (WAC) A/C Demand:
