Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> KD - Canister Purge (CANP) Solenoid >> KD8 - KD10

KD8 - KD10

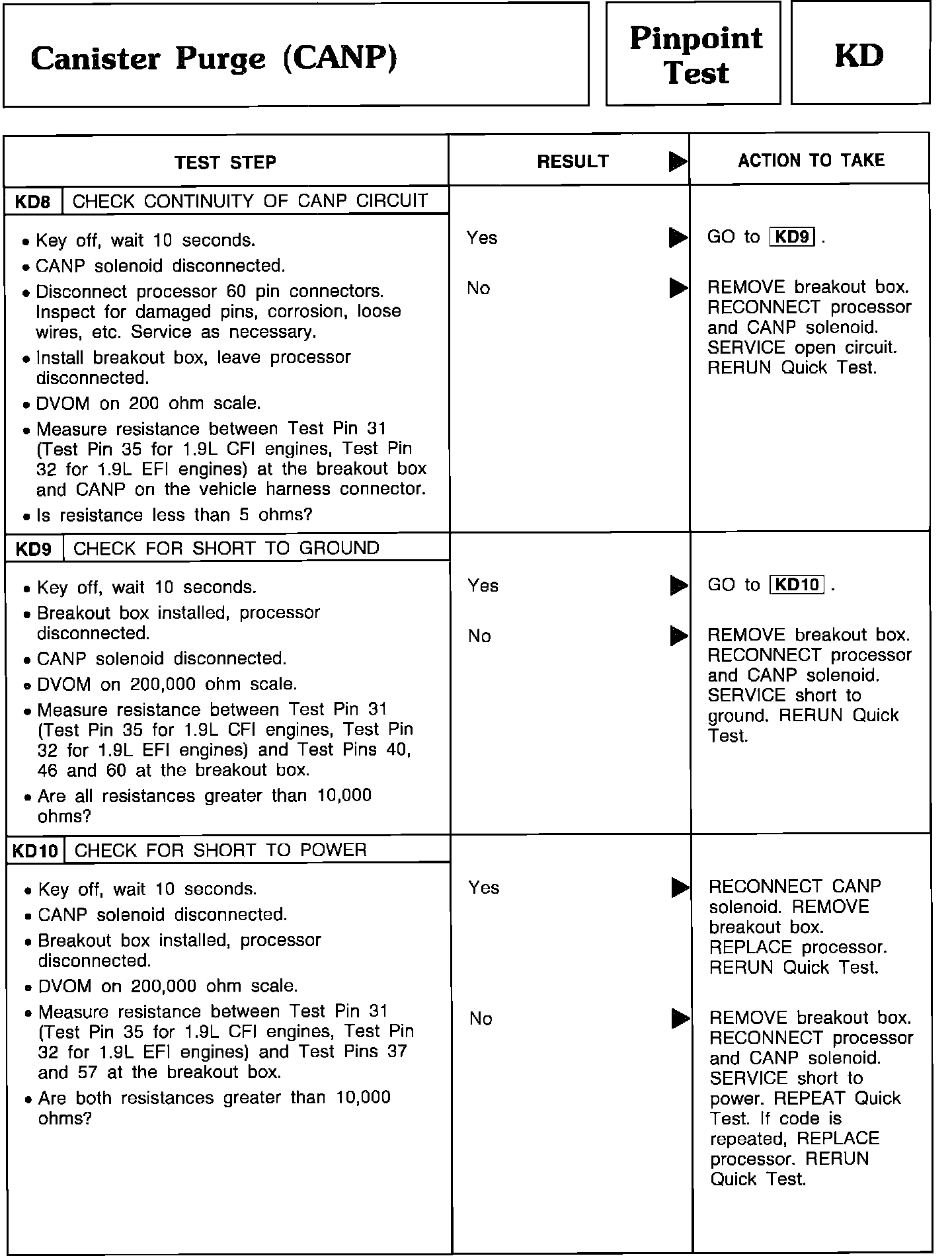

Pinpoint Test KD8 Thru KD10 - Canister Purge (CANP):
