Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF - Power Steering Pressure Switch (PSPS) >> FF8 - FF9

FF8 - FF9

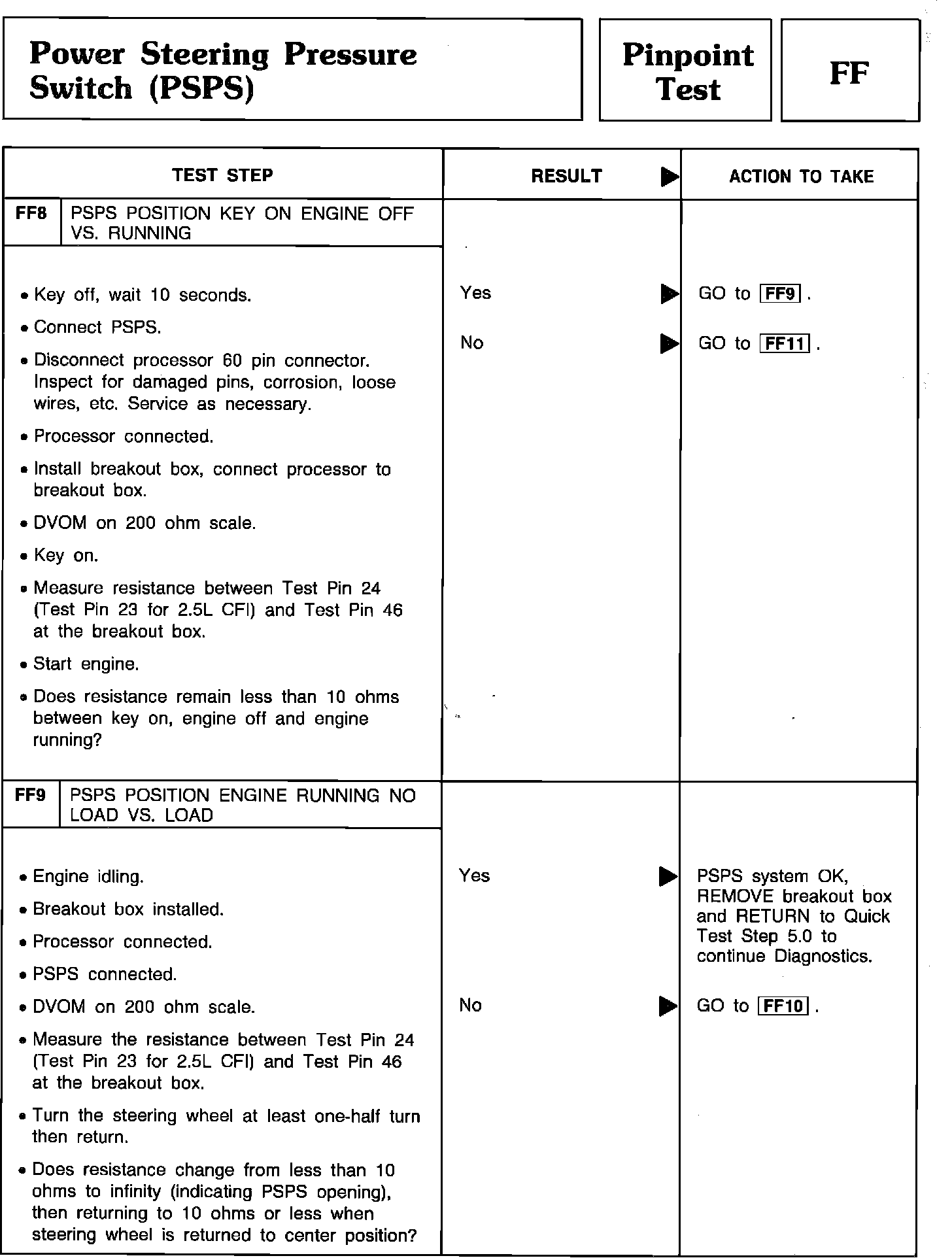

Pinpoint Test FF8 & FF9 - Power Steering Pressure Switch (PSPS):
