Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> FF - Power Steering Pressure Switch (PSPS) >> FF1 - FF3

FF1 - FF3

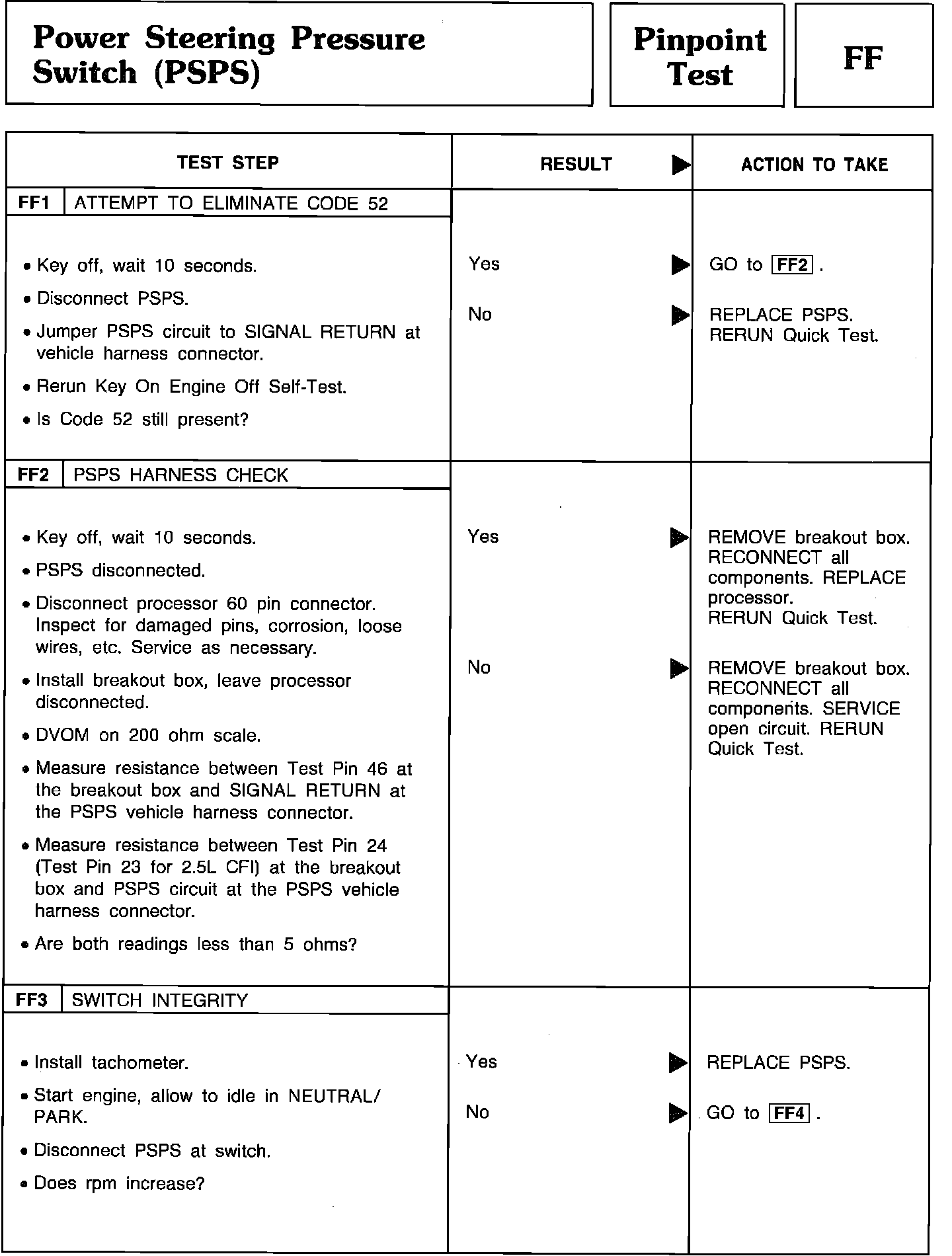

Pinpoint Test FF1 Thru FF3 - Power Steering Pressure Switch (PSPS):
