Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DL - Pressure Feedback EGR (PFE) & EGR Valve Regulator (EVR) >> DL32 - DL90

DL32 - DL90

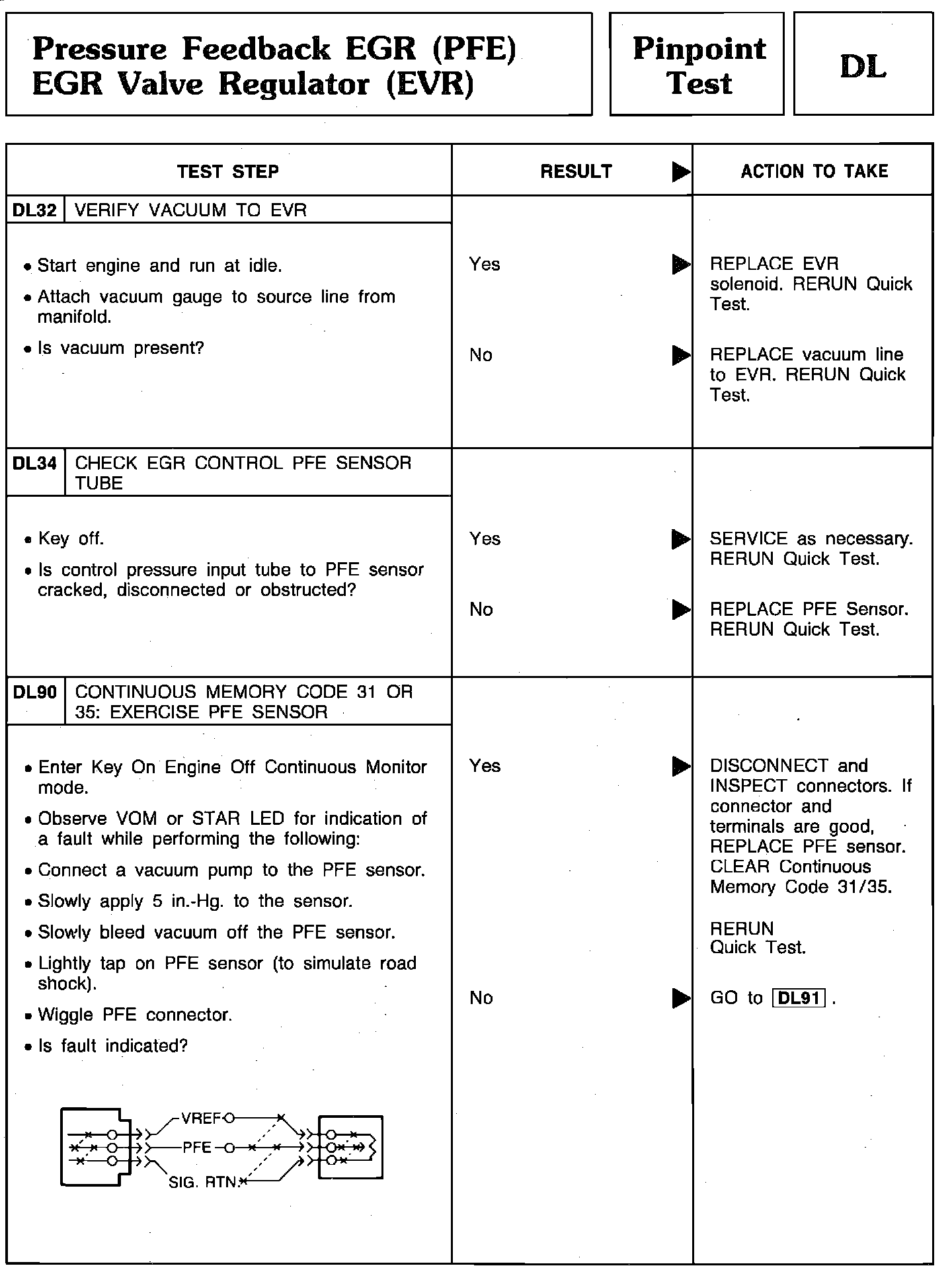

Pinpoint Test DL32 Thru DL90 - Pressure Feedback EGR (PFE)/EGR Valve Regulator (EVR):
