DF4 - DF5

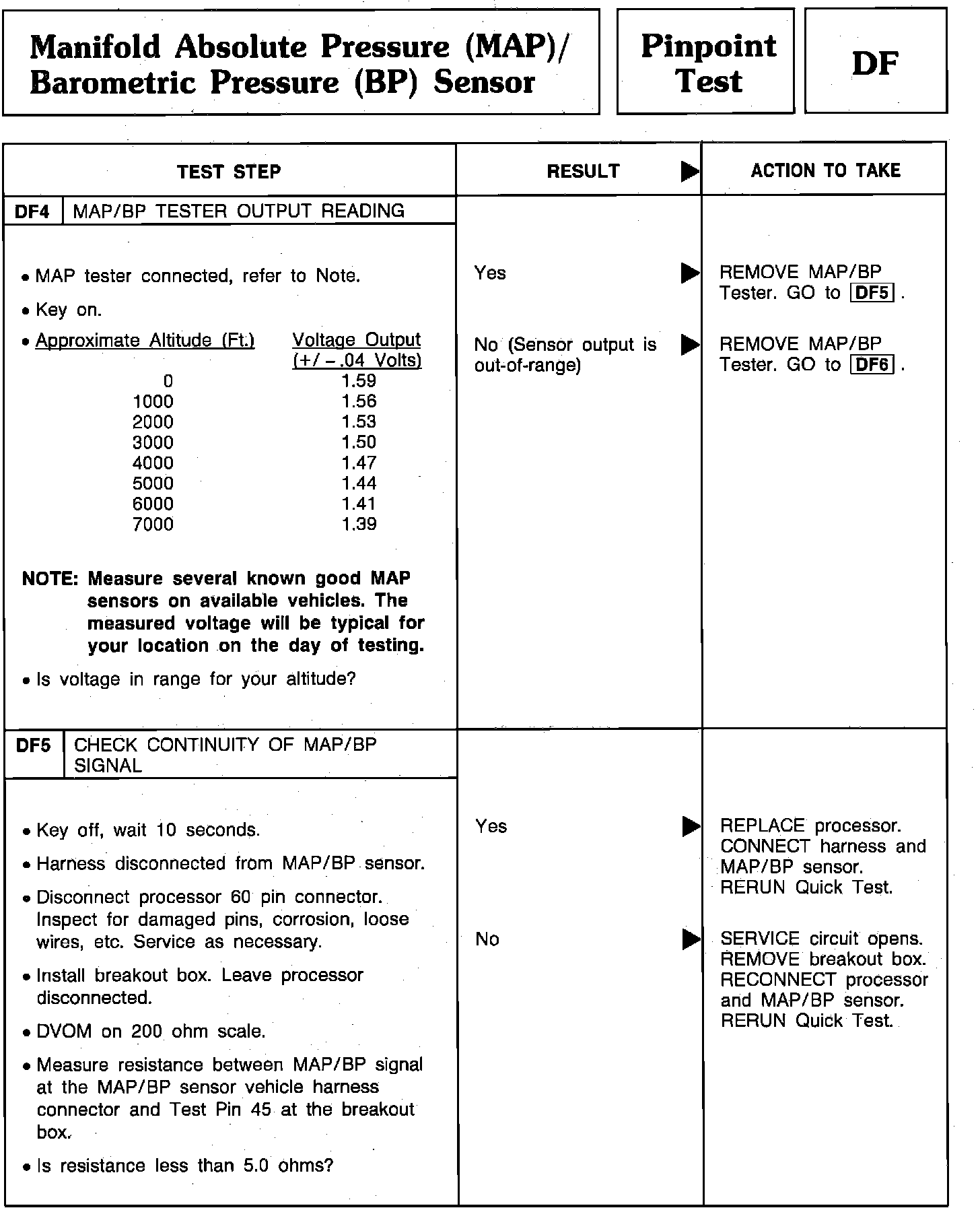

Pinpoint Test DF4 & DF5 - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
