DF1 - DF3

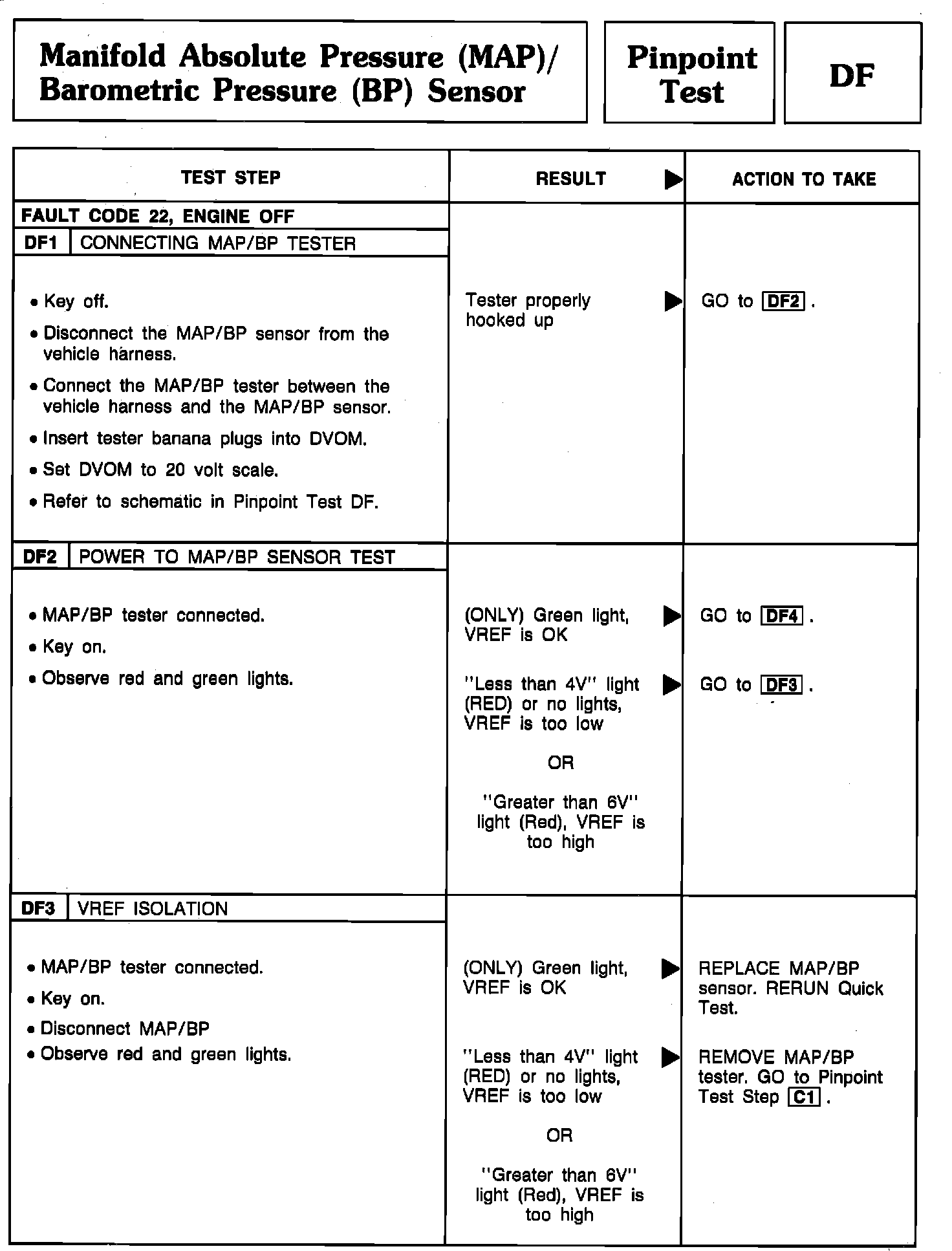

Pinpoint Test DF1 Thru DF3 - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) Sensor:
