Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DE - Engine Coolant Temperature Sensor (ECT) >> DE10 - DE11

DE10 - DE11

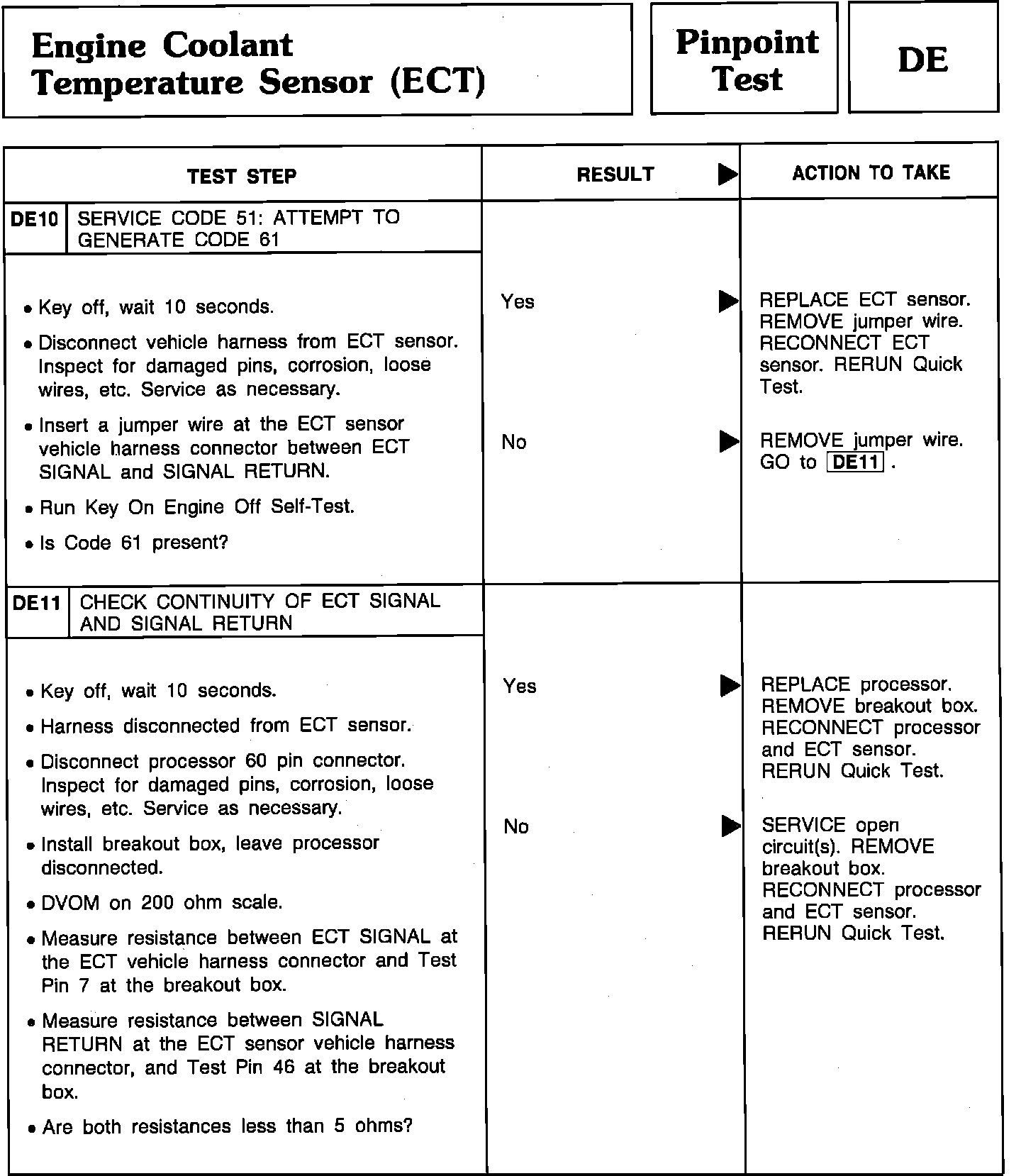

Pinpoint Test DE10 & DE11 - Engine Coolant Temperature Sensor (ECT):
