Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV) >> DD1 - DD3

DD1 - DD3

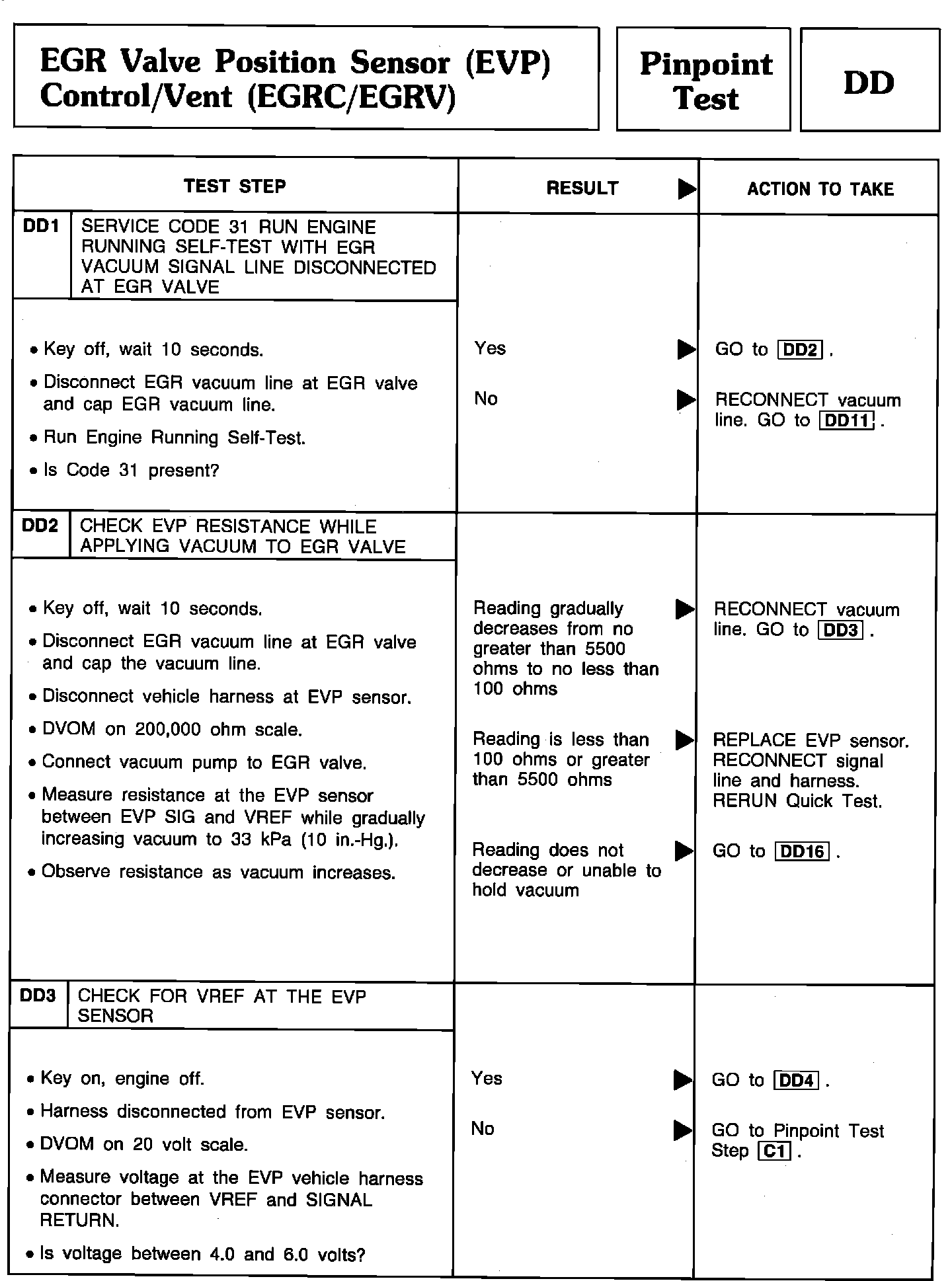

Pinpoint Test DD1 Thru DD3 - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV):
