Compressor Clutch Diagnosis (cc)

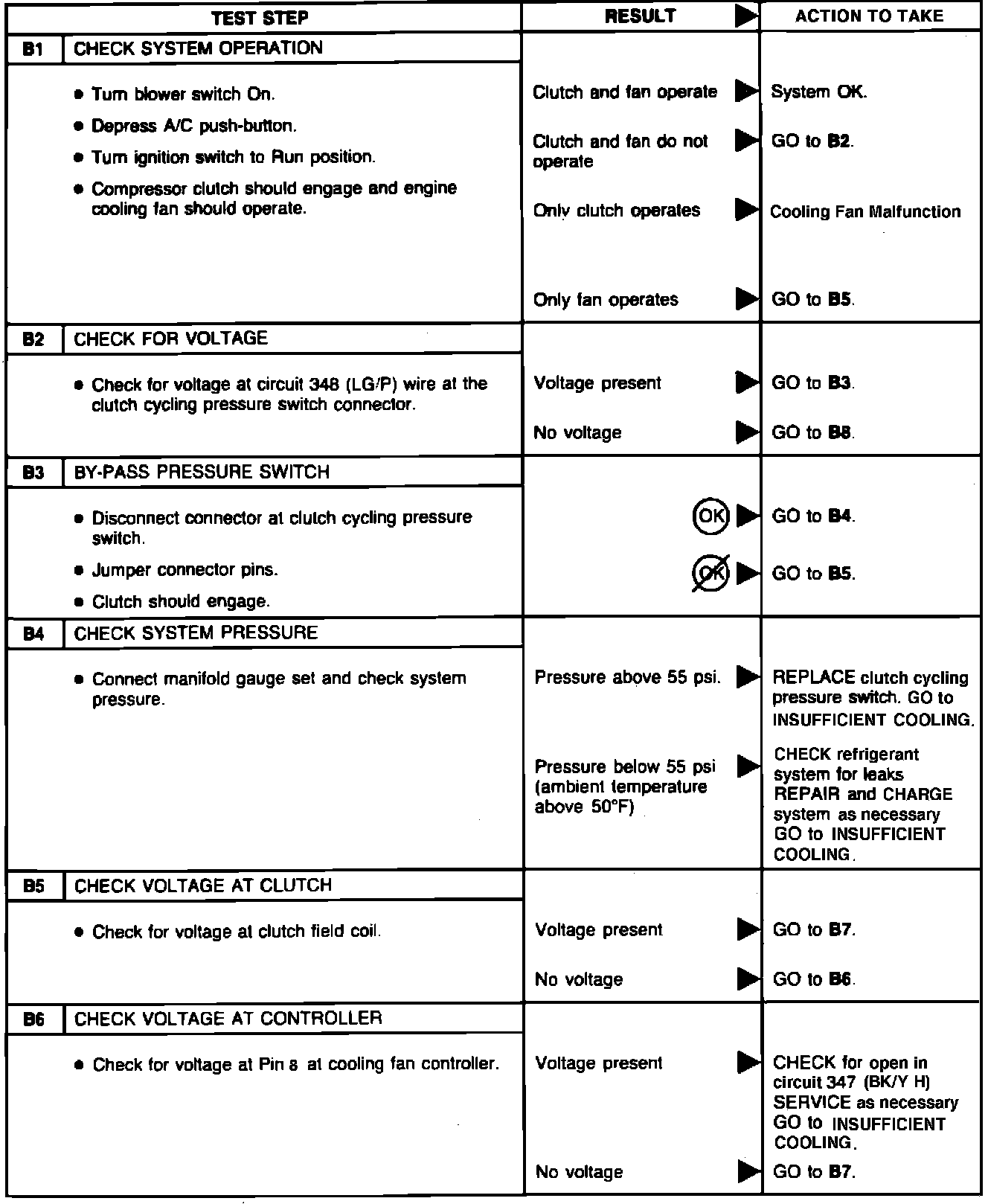

Compressor clutch diagnosis (Part 1 of 2).:

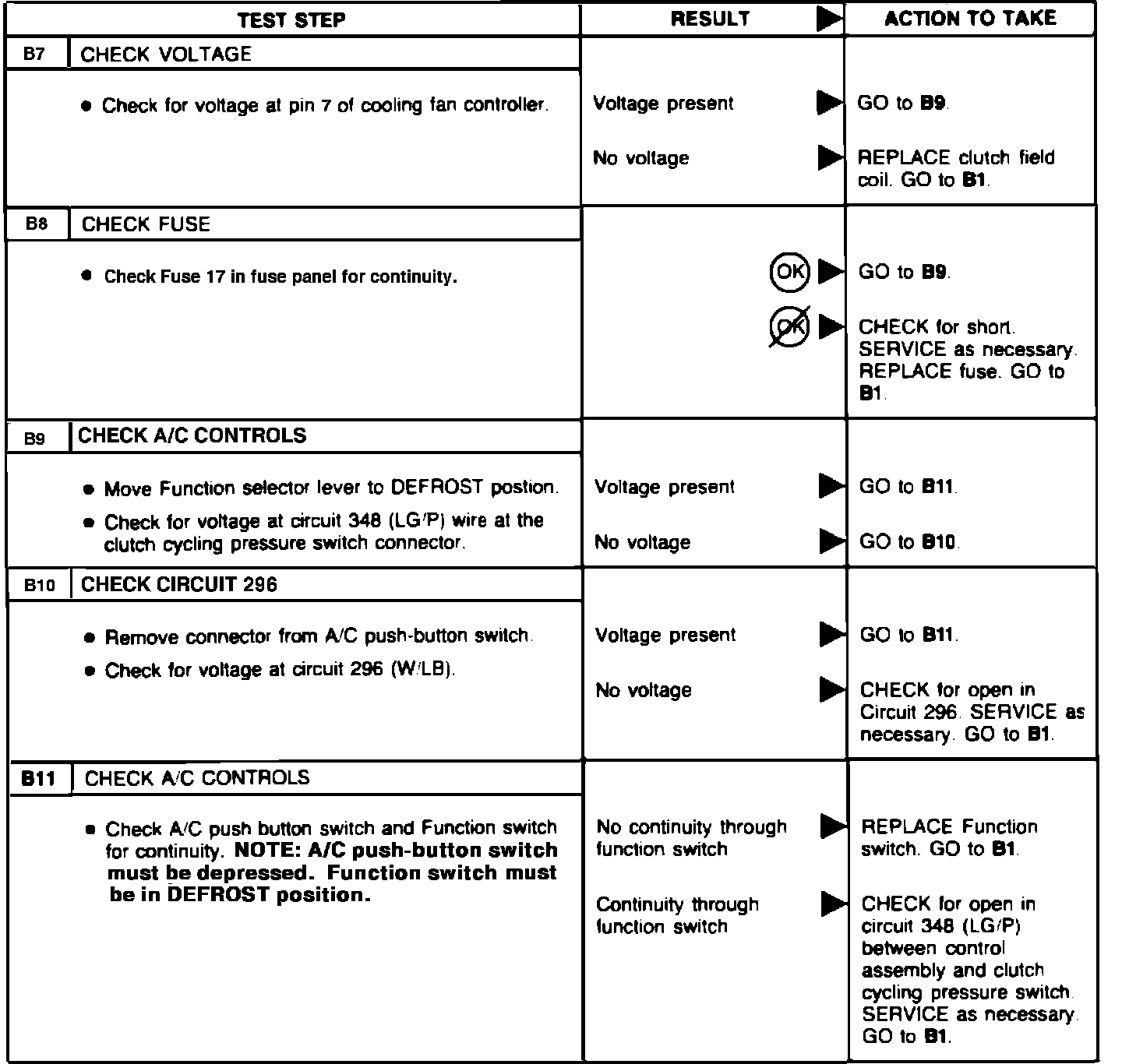

Compressor clutch diagnosis (Part 2 of 2):
