FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Component Tests >> Electronic Climate Control >> Clutch >> Clutch Will Not Engage

Clutch Will Not Engage

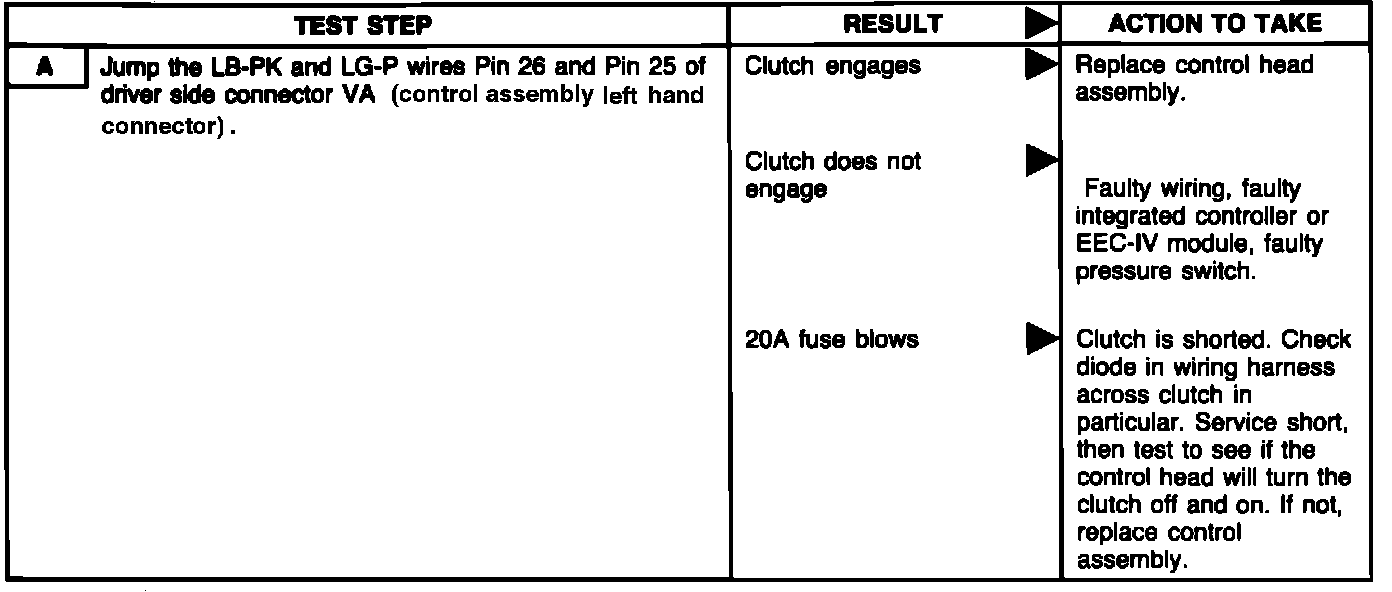

Fig. 62 No clutch operation diagnosis.:
