Home >> Mercury >> 1988 >> Sable V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Courtesy Lamp >> Vehicles Built to April, 1987 Part 2 of 4

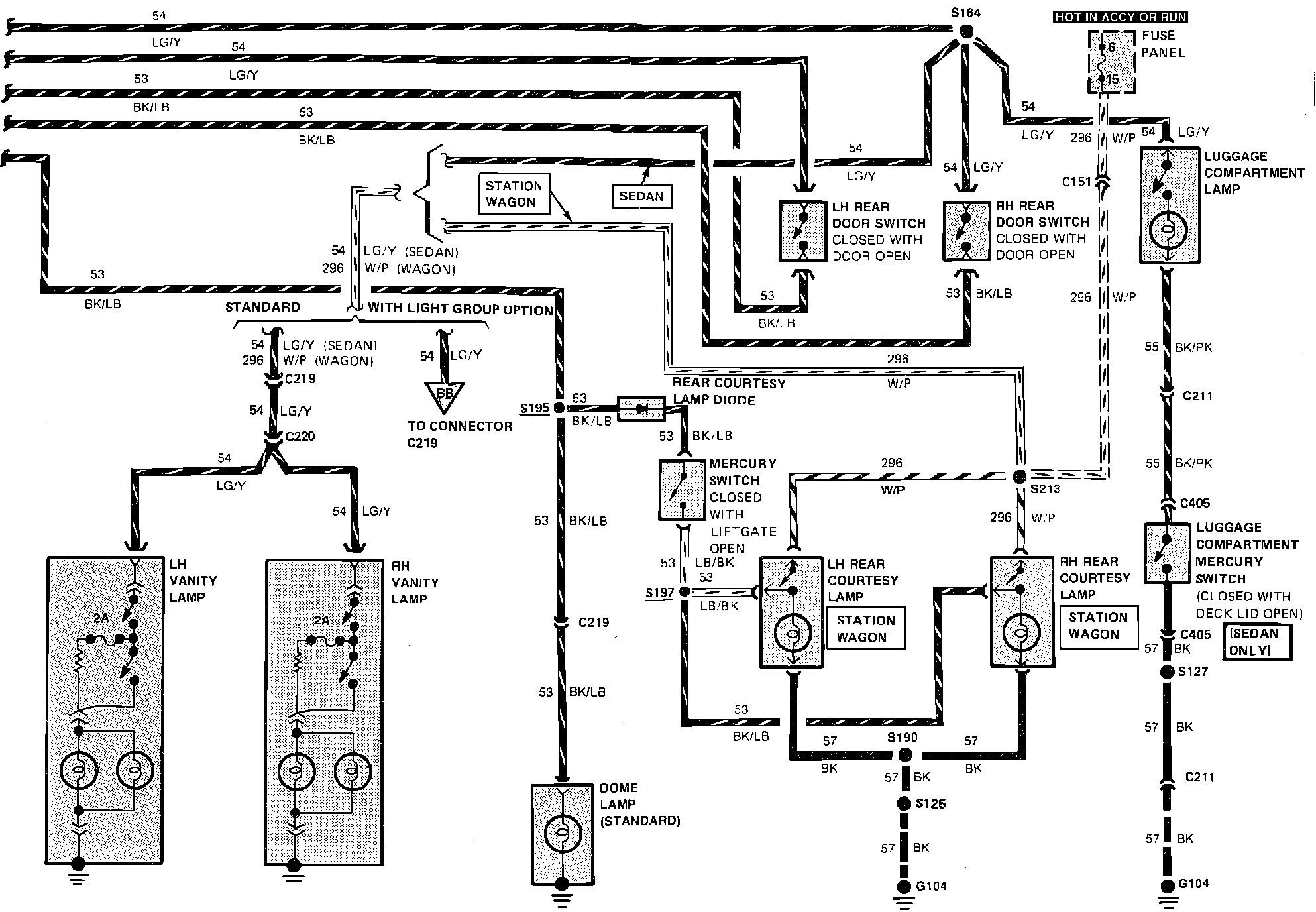

Vehicles Built to April, 1987 Part 2 of 4

Vehicles Built To April, 1987:
