Electronic Climate Control
Electronic Climate Control
***THIS ARTICLE INCLUDES UPDATES MADE BY TSB #91-5B-12, DATED MARCH 1991***

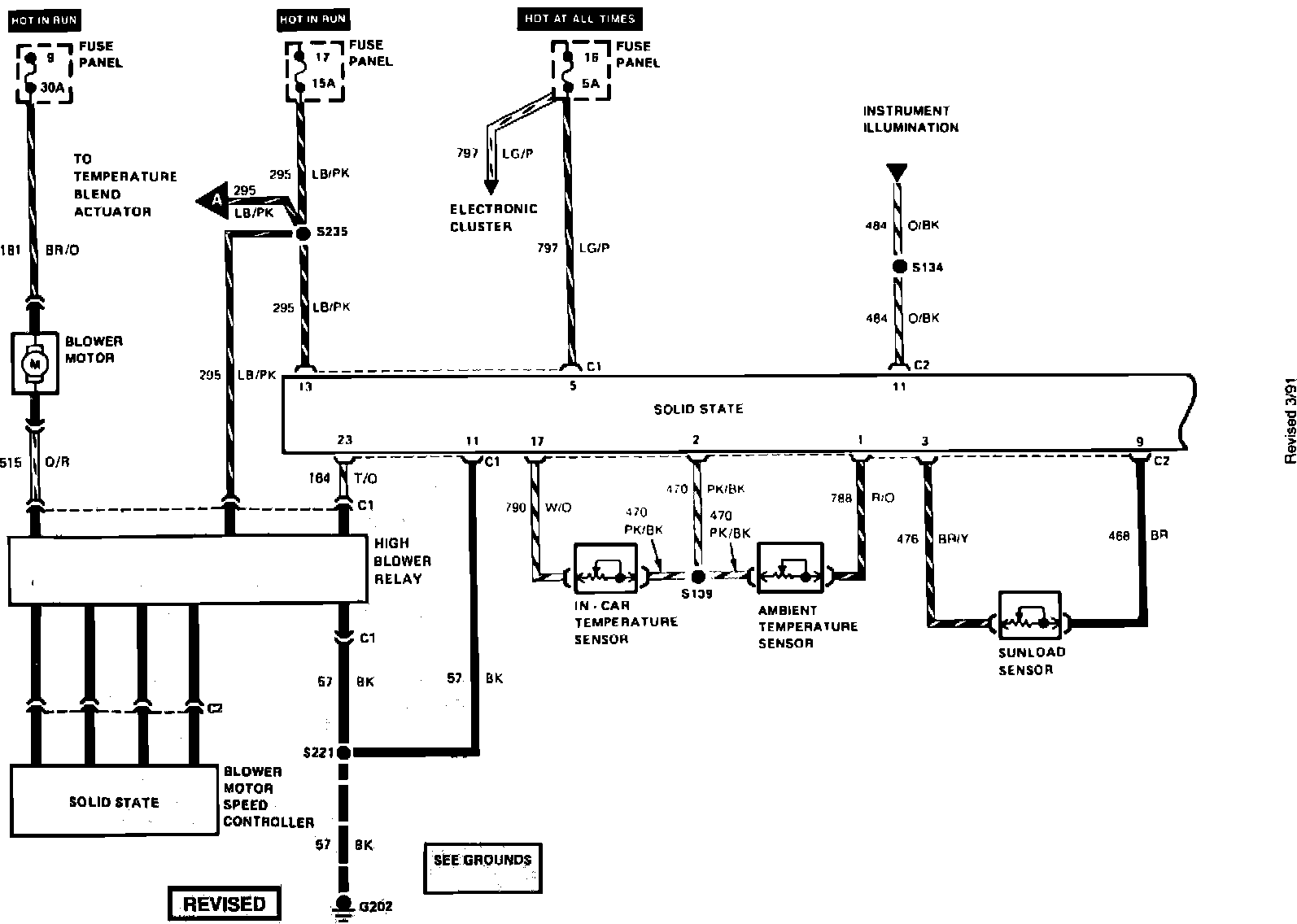

Auto Temp Control Cont.:
