G902 Instrument Panel W/Electronic Cluster
G902 Instrument Panel W/Electronic Cluster

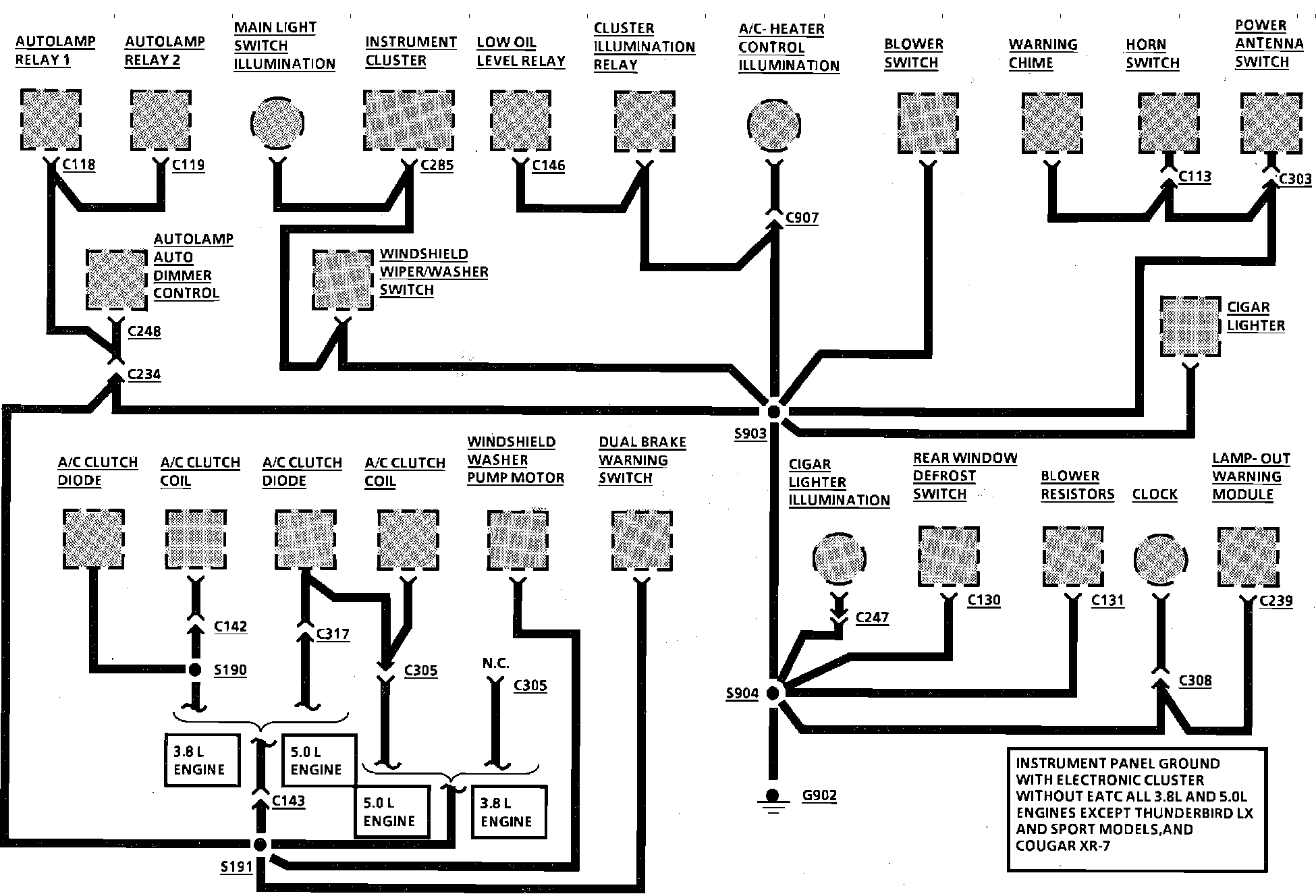

Ground Distribution Wiring Circuit. G902 Instrument Panel w/Electronic Cluster:
