Refrigerant Pressure Sensor / Switch: Locations

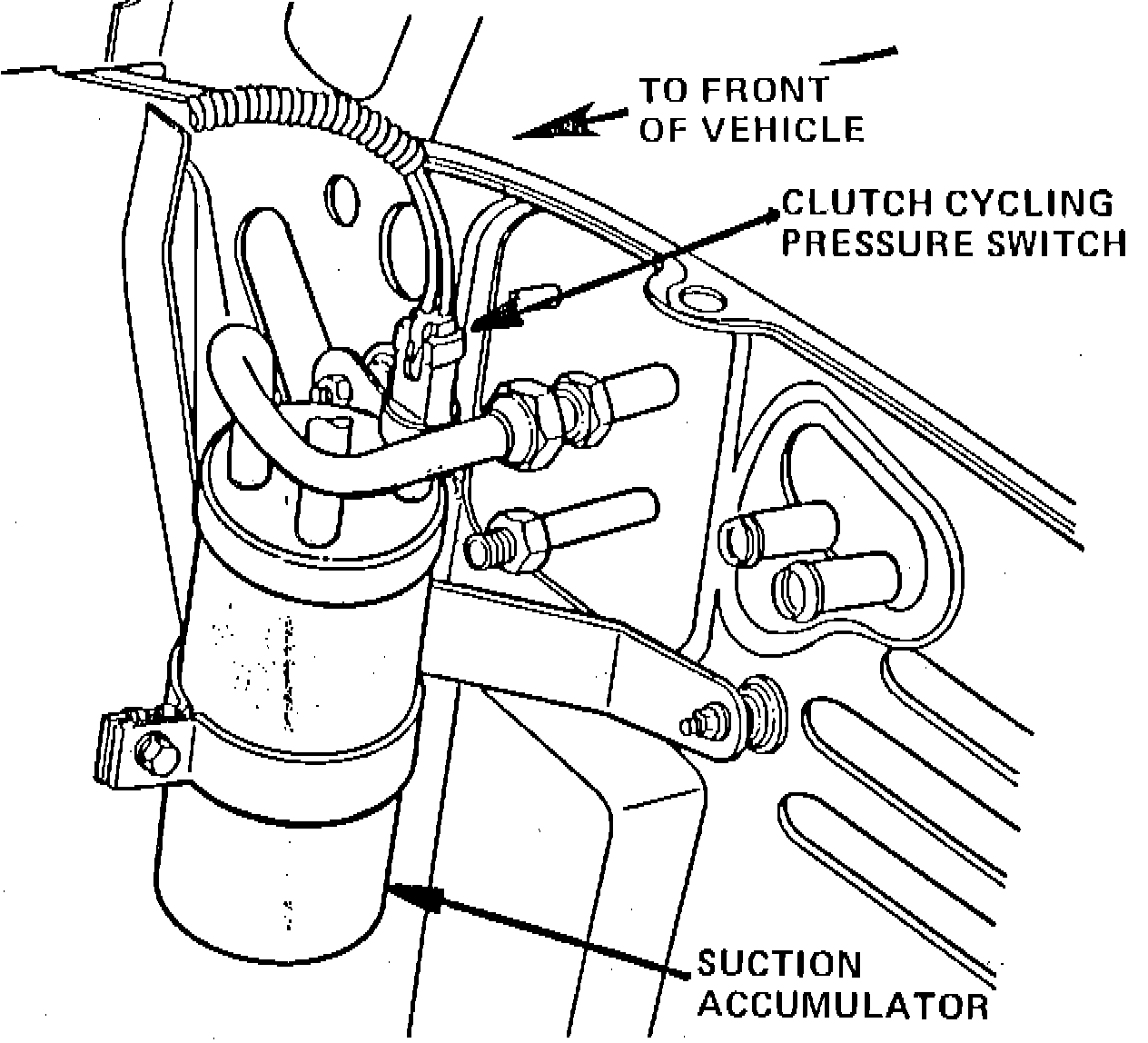

Clutch cycling pressure switch:




At RH Side Of Firewall, On A/C Accumulator
