1988
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

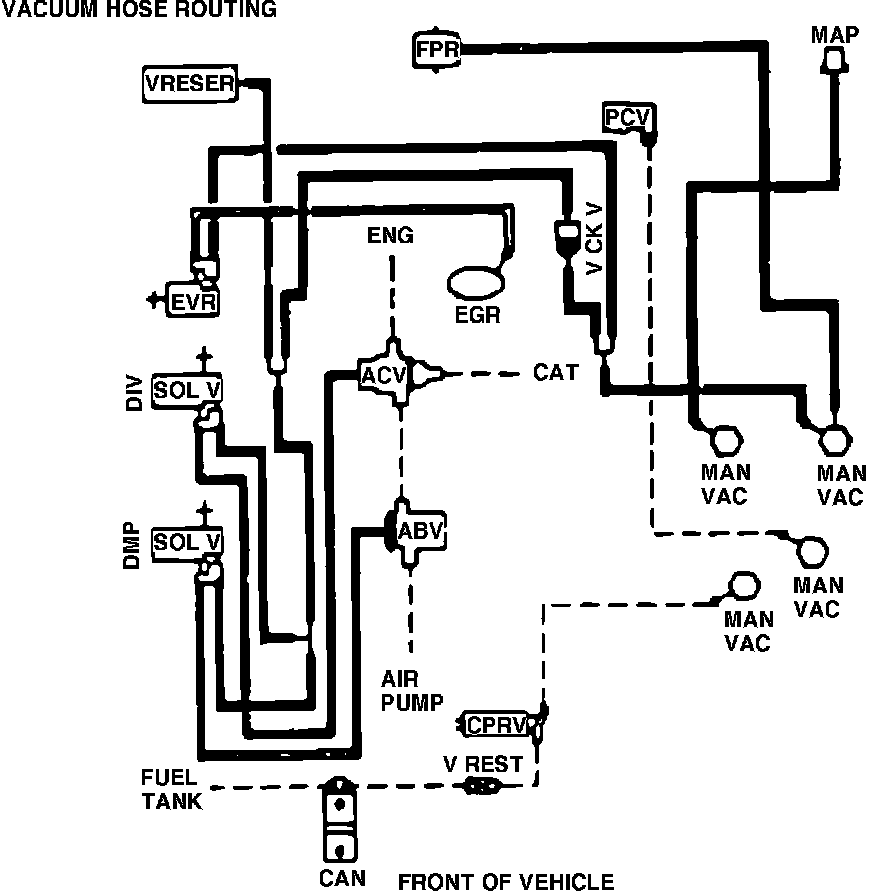

Fig. 17 Vacuum Hose Routing W/EFI
Fig. 17 Vacuum Hose Routing W/EFI
Fig. 17 Calib. Codes 7-21A-R05, 7-21C-R05, 7-22A-R00, 7-22P-R00, 8-22D-R00, 8-22L-R00 & 8-22R-R00:
