Mercury
>>
1988
>>
Cougar/XR7 V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>

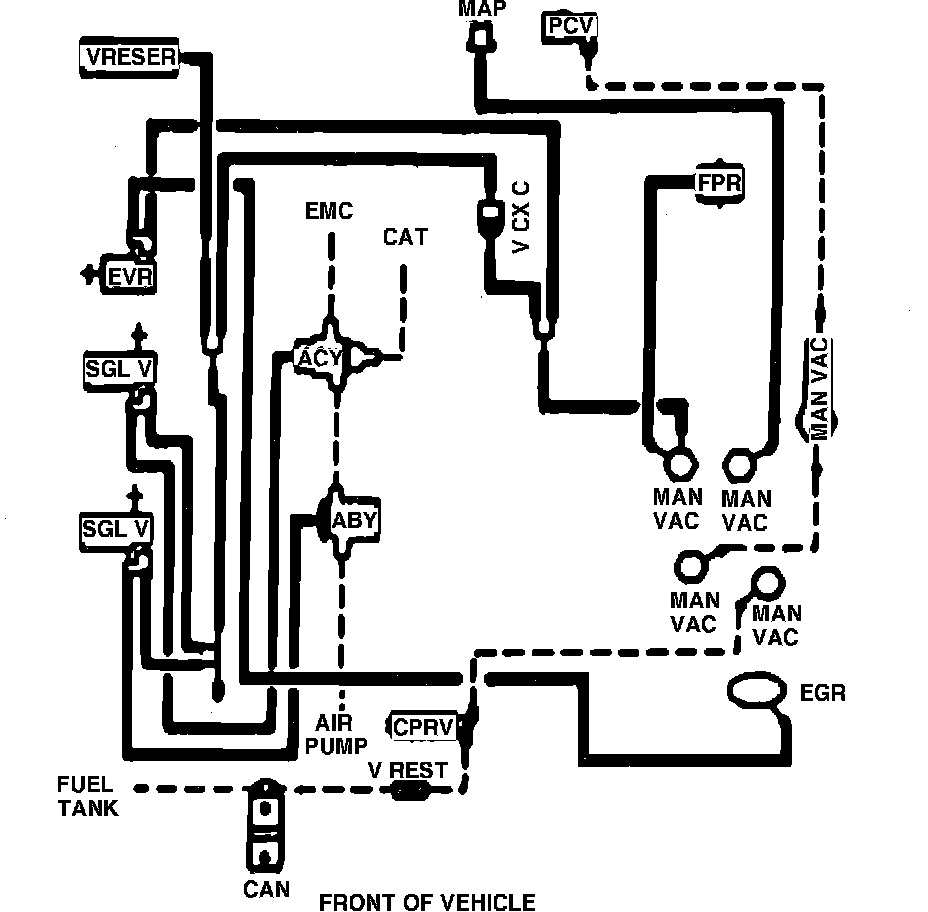

Fig. 16 Vacuum Hose Routing W/EFI
Fig. 16 Vacuum Hose Routing W/EFI
Fig. 16 Calib. Codes 8-22B-R00, 8-22C-R00, 8-22E-R00, 8-22G-R00, 8-22I-R00, 8-22J-R00, 8-22M-R00, 8-22N-R00, 8-22Q-R00 & 8-22S-R00:
