X - Wiring Diagram

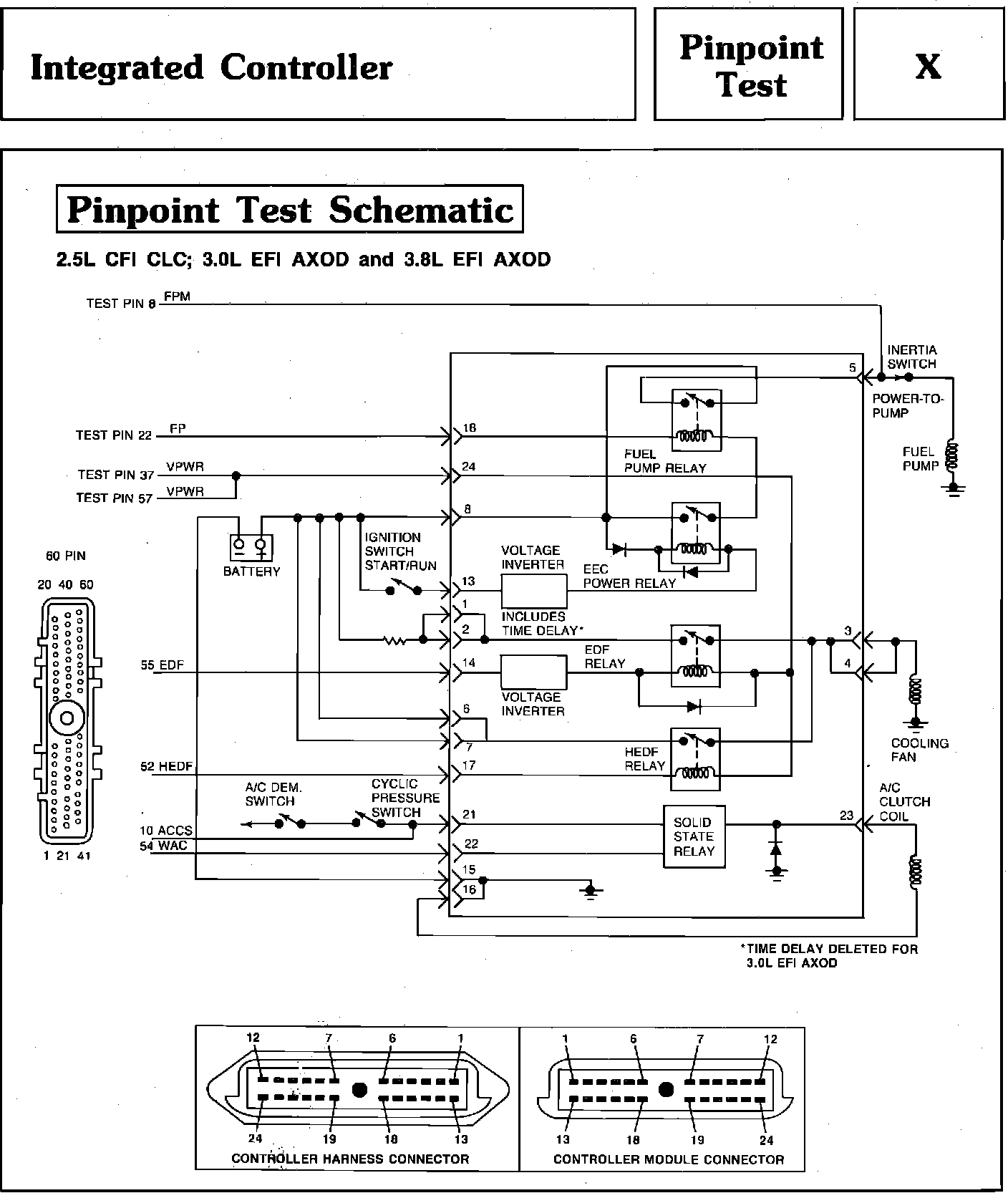

Pinpoint Test X - Integrated Controller:

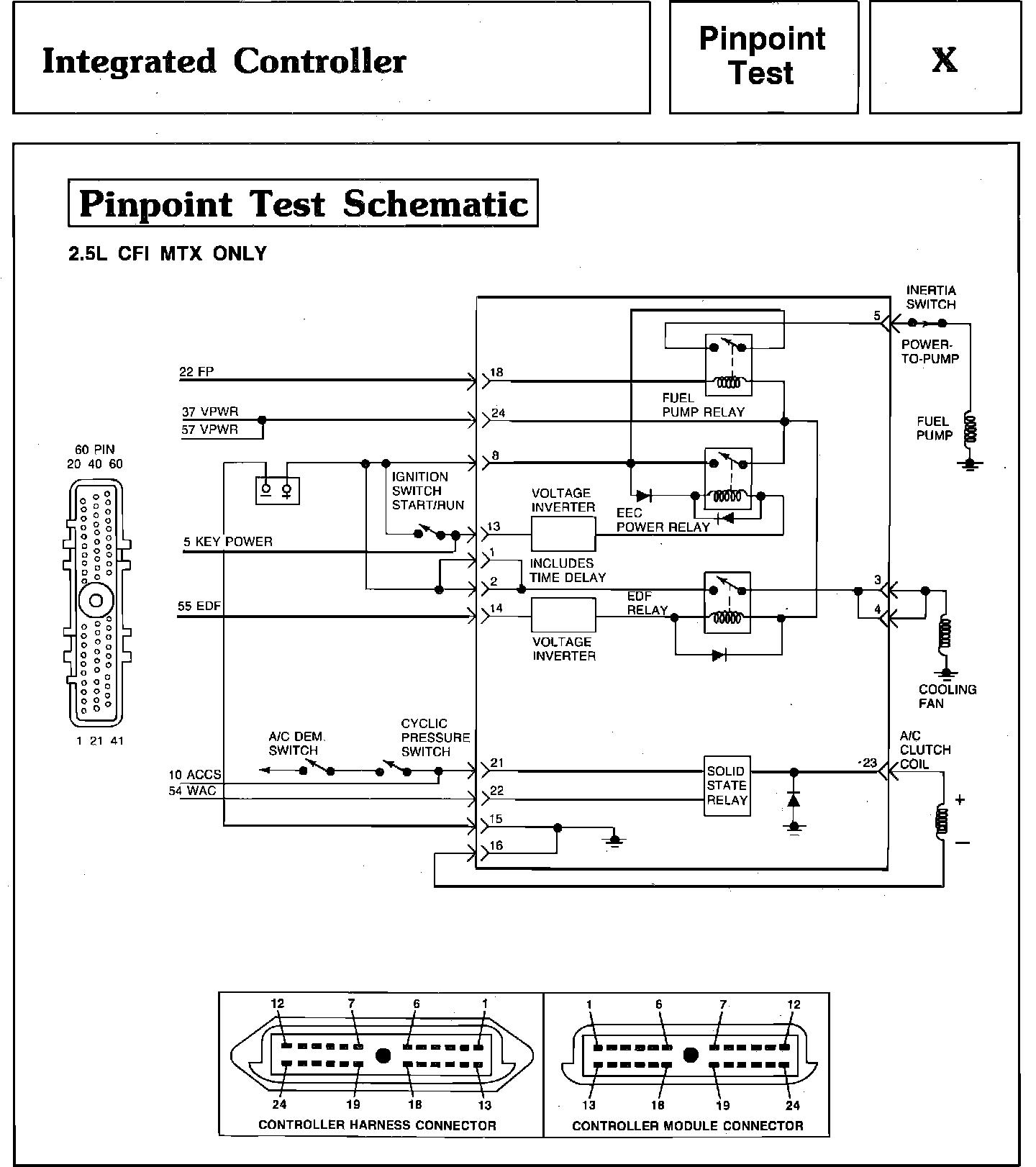

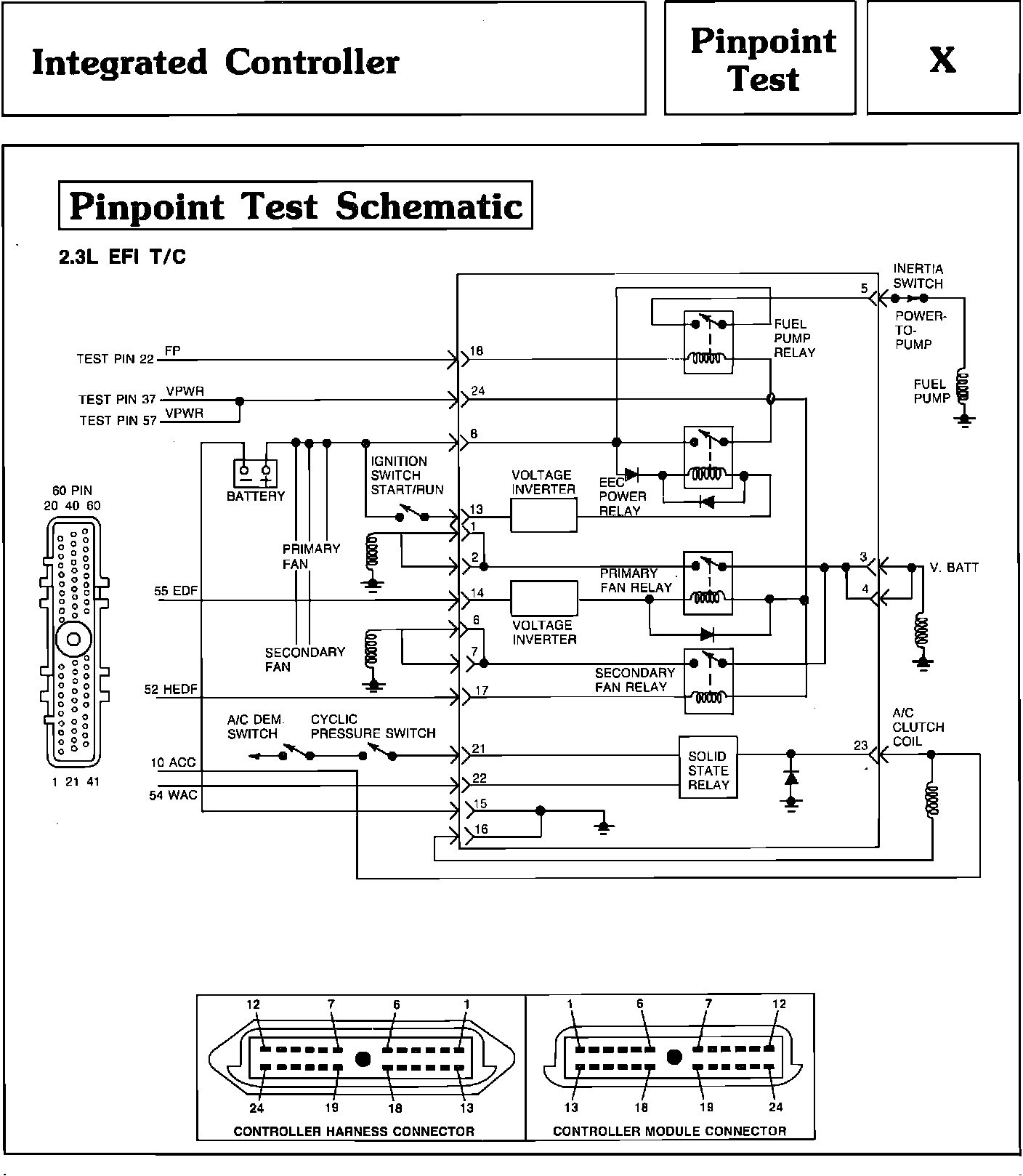

Pinpoint Test X Schematic - Integrated Controller:



Pinpoint Test X Schematic - Integrated Controller:
