Home >> Mercury >> 1988 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> J - Fuel Pump Circuit >> J - Testing Schematic

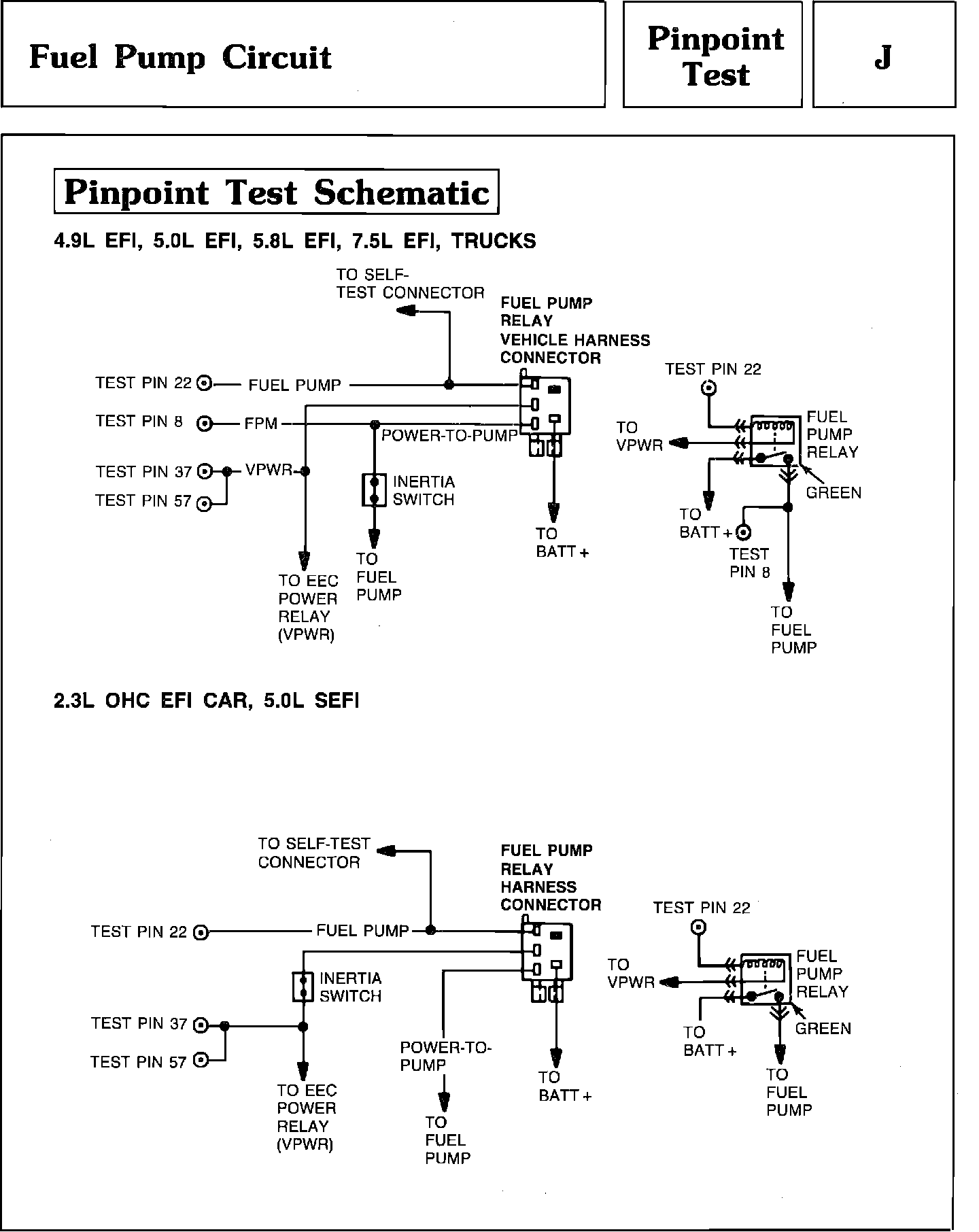

J - Testing Schematic

Pinpoint Test J - Fuel Pump Circuit:



Pinpoint Test J - Fuel Pump Circuit:
