C: Panel/Defrost Door Actuator Diagnosis

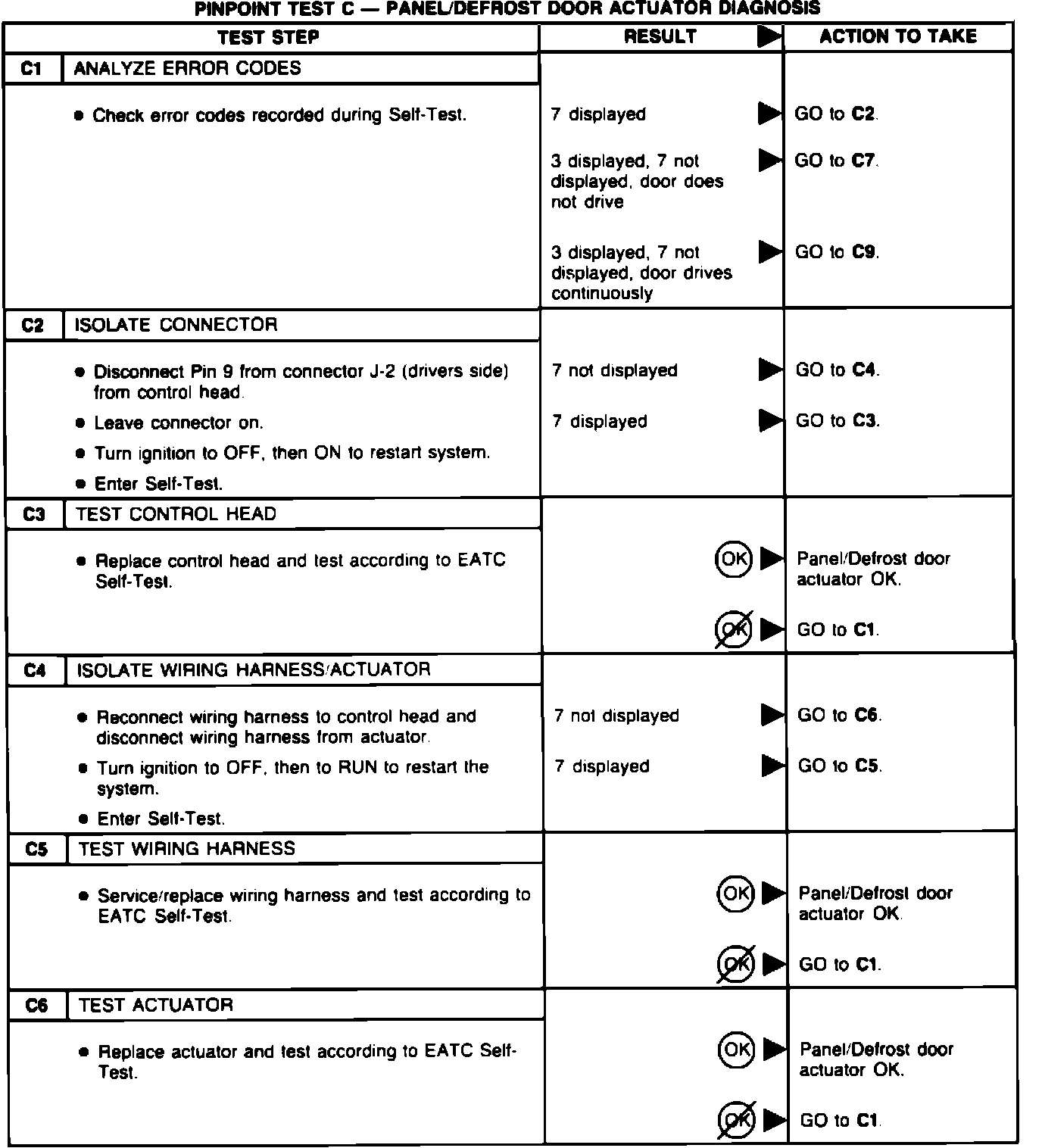

Fig. 49 Pinpoint test C, panel/defrost door actuator diagnosis (Part 1 of 2).:

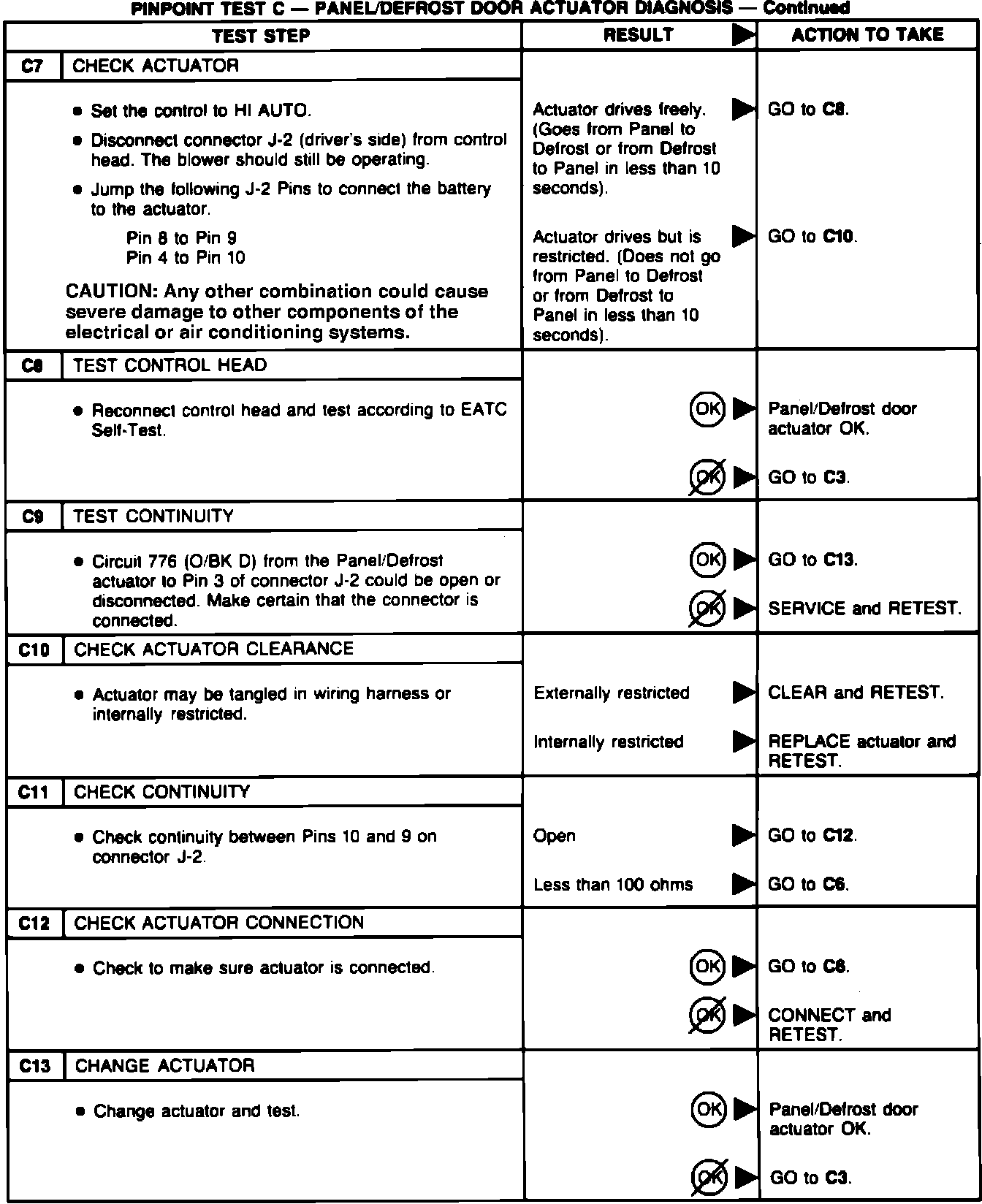

Fig. 49 Pinpoint test C, panel/defrost door actuator diagnosis (Part 2 of 2).:
