Compressor Clutch Coil: Locations

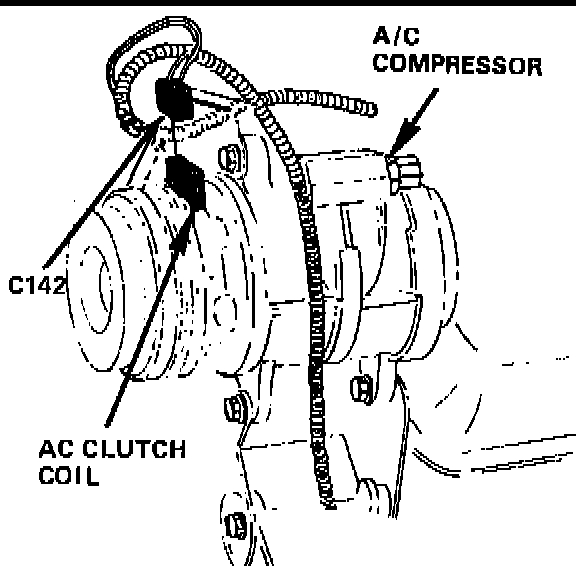

A/C Compressor.:




Compressor Assembly

Applicable to: V8-302/5.0L Engine
