Customer Information, Labor Time Schedule & Special Instructions

5. Customer Information

Inform the customer that the condition is not a durability concern that may cause the engine to stop running with further usage of the vehicle. Explain that a new engine assembly will be ordered and you will notify the customer upon receiving the replacement engine in approximately 3-5 weeks.

A $100.00 deductible is required on vehicles beyond the 12/12 warranty for powertrain coverage.

6. Labor Time Schedule - Engine Assembly

Engines will be shipped complete less the normal components such as the thermactor pump, alternator, belts, pulleys, starter, etc. Operation and time schedules listed are only intended for this program. Follow procedures outlined in the 1987 Car Shop Manual.

1987 Crown Victoria, Grand Marquis, Town Car

Operation Time Dealer Coding

SP-6007-A 8.3 hr. Basic Part No. 6007 - Code 56

Includes time to diagnose the concern and time to clean and transfer components.

1987 Thunderbird, Cougar, Mark VII, Continental

Operation Time Dealer Coding

SP-6007-B 8.4 hr. Basic Part No. 6007 - Code 56

Includes time to diagnose the concern and time to clean and transfer components.





7. Special Instructions

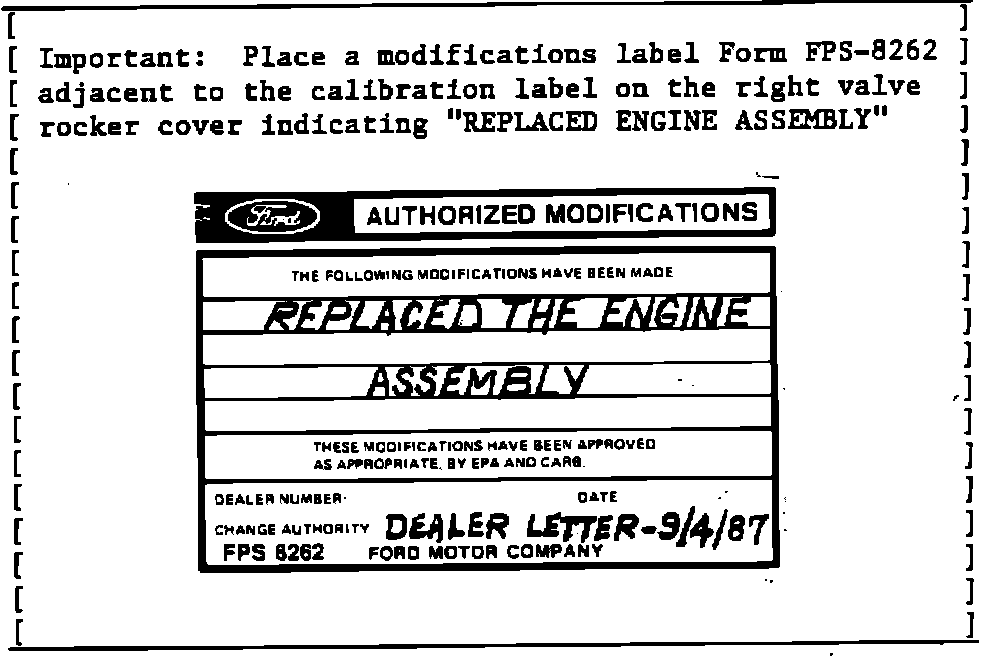

Important: The engine code label should be installed or marked at the engine plant. Verify that the calibration code number is the same as the number on the removed engine.

Attachment 1 Page 4 of 7
