Home >> Mercury >> 1988 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission Control Systems >> Fig. 20 Calib. Codes 8-22F-R00 & 8-22F-R11

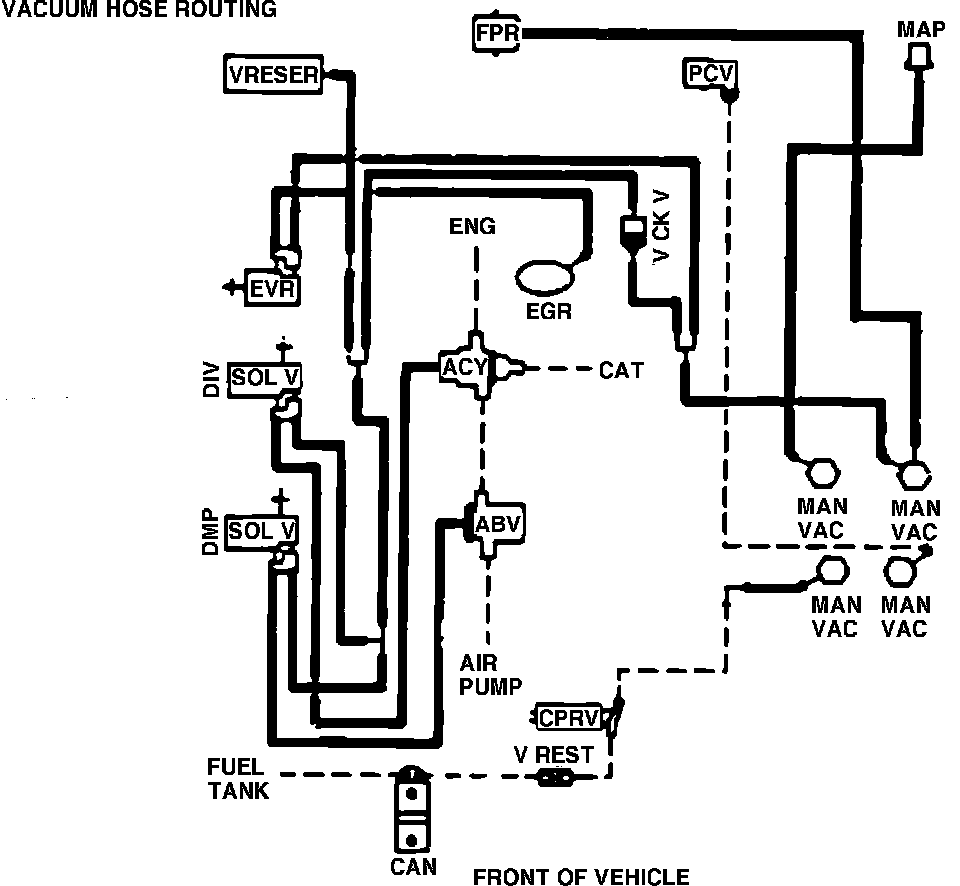

Fig. 20 Calib. Codes 8-22F-R00 & 8-22F-R11

Fig. 20 Calib. Codes 8-22F-R00 & 8-22F-R11:
