Fig. 19 Calib. Codes 8-21P-R1O & 8-22P-R12 W/EFI
Fig. 19 Calib. Codes 8-21P-R1O & 8-22P-R12 W/EFI

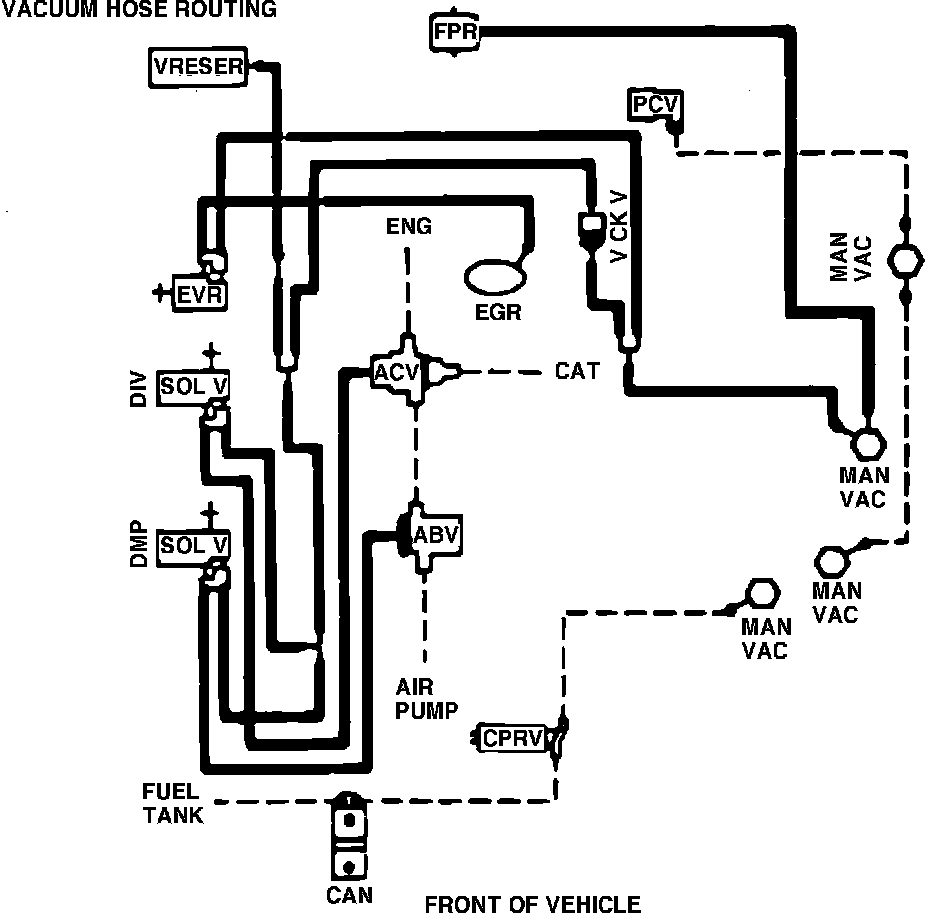

Fig. 19 Calib. Codes 8-21P-R10 & 8-22P-R12 W/EFI:
