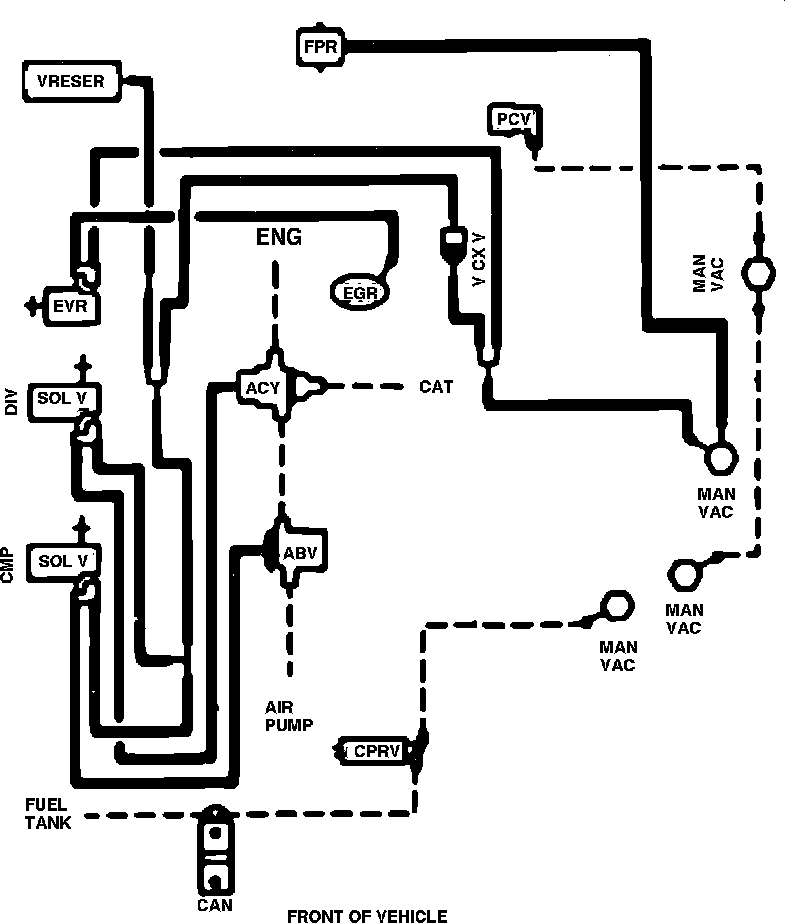

Fig. 18 Calib. Code W/EFI, H.O., 8-22P-R10
Fig. 18 Calib. Code W/EFI, H.O., 8-22P-R10
Fig. 18 Calib. Code w/EFI, H.O., 8-22P-R10:
