Premium Sound & Graphic Equalizer

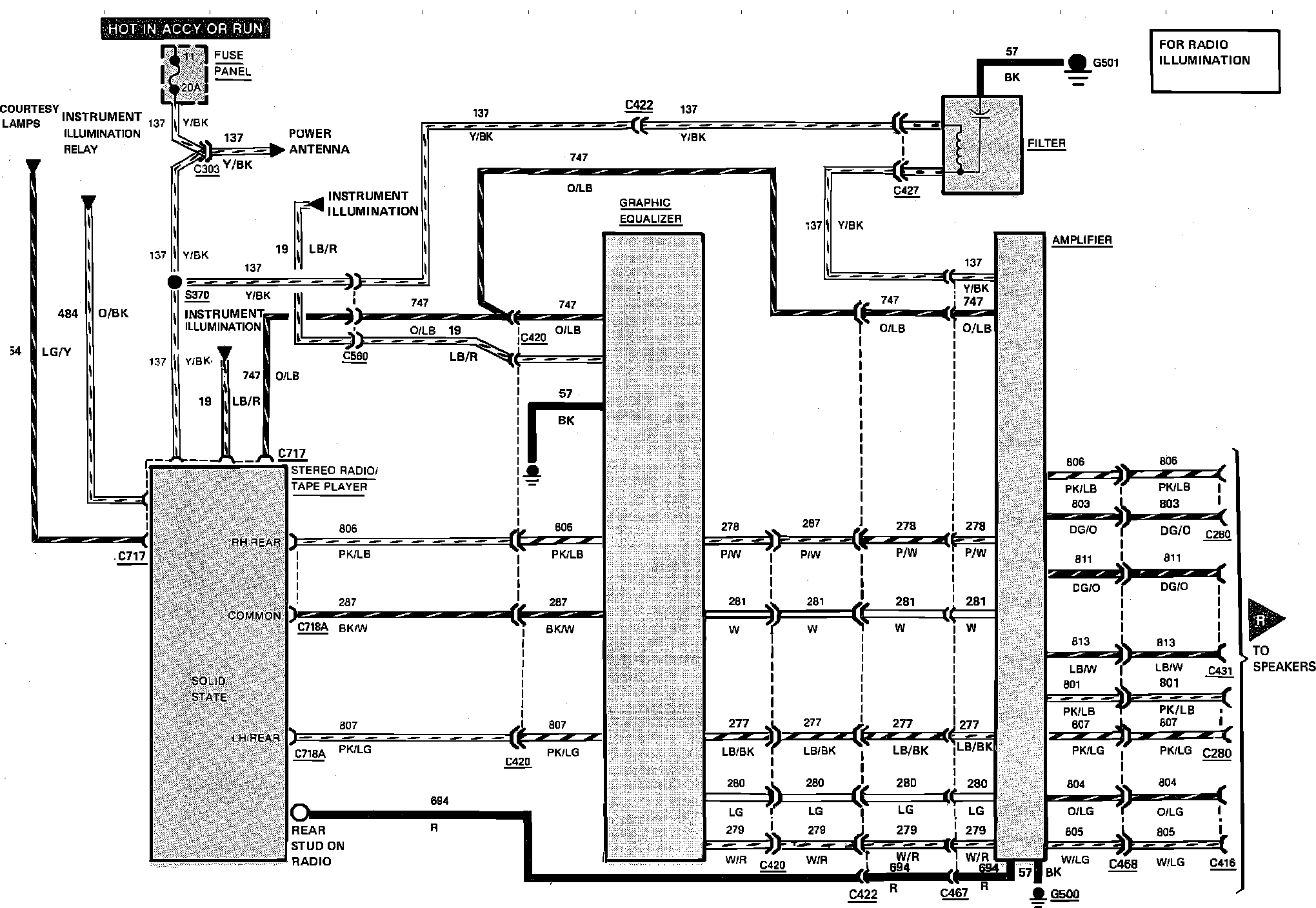

Radio Wiring Circuit. With Premium Sound & Graphic Equalizer (Part 1 of 2):

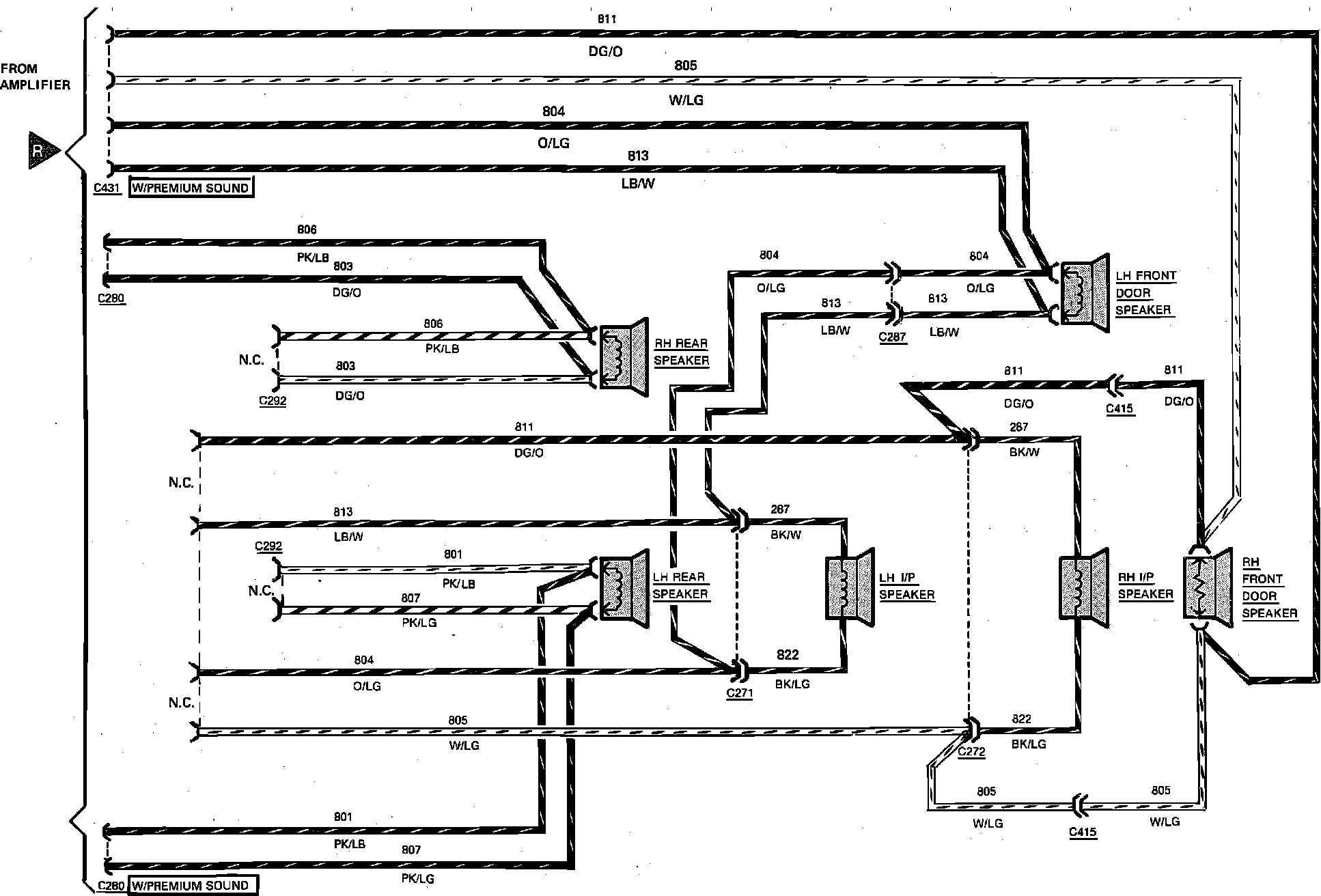

Radio Wiring Circuit. With Premium Sound & Graphic Equalizer (Part 2 of 2):
