Home >> Mercury >> 1988 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Engine Controls

Engine Controls

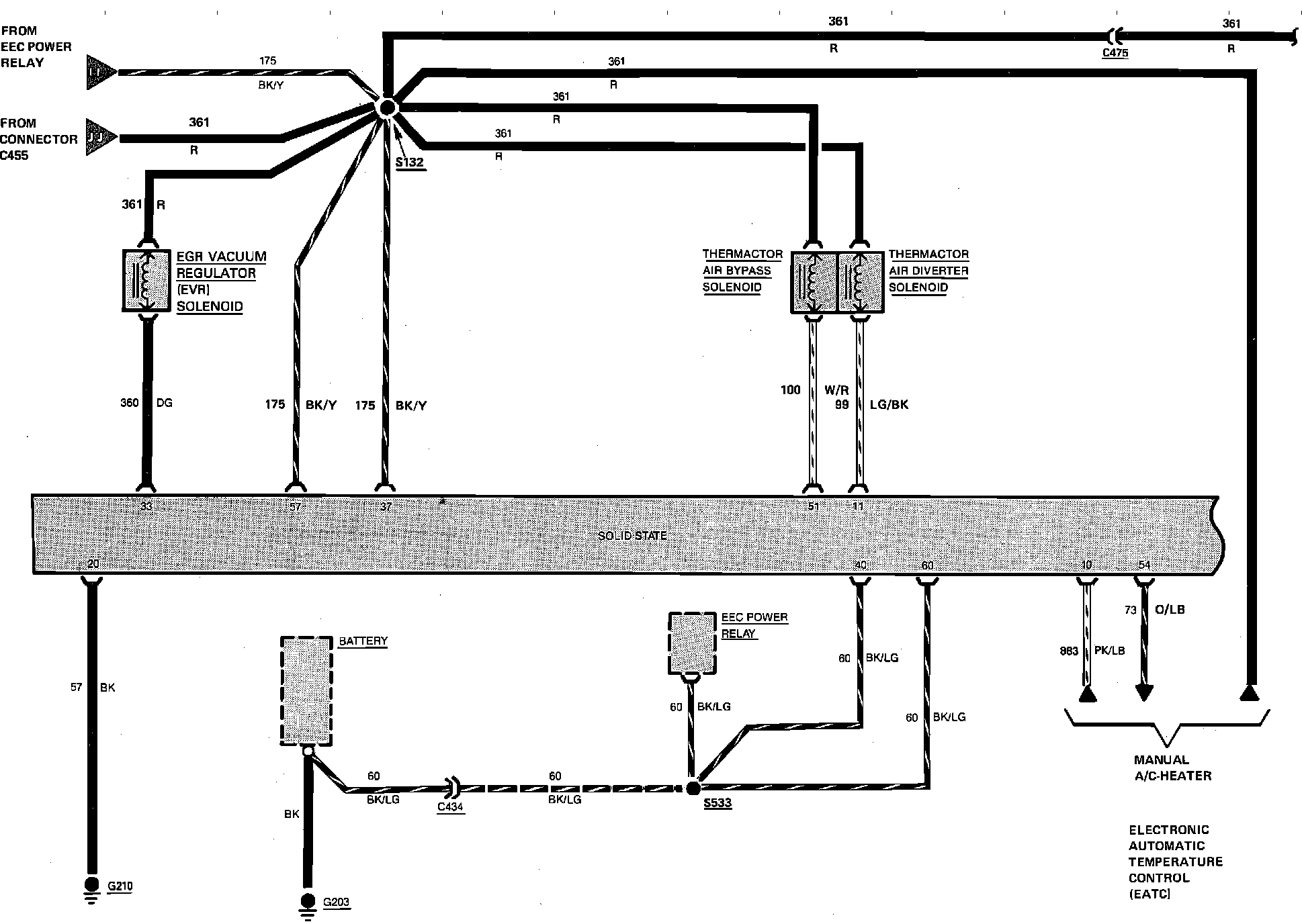

Electronic Engine Control Wiring Circuit (Part 1 of 4):

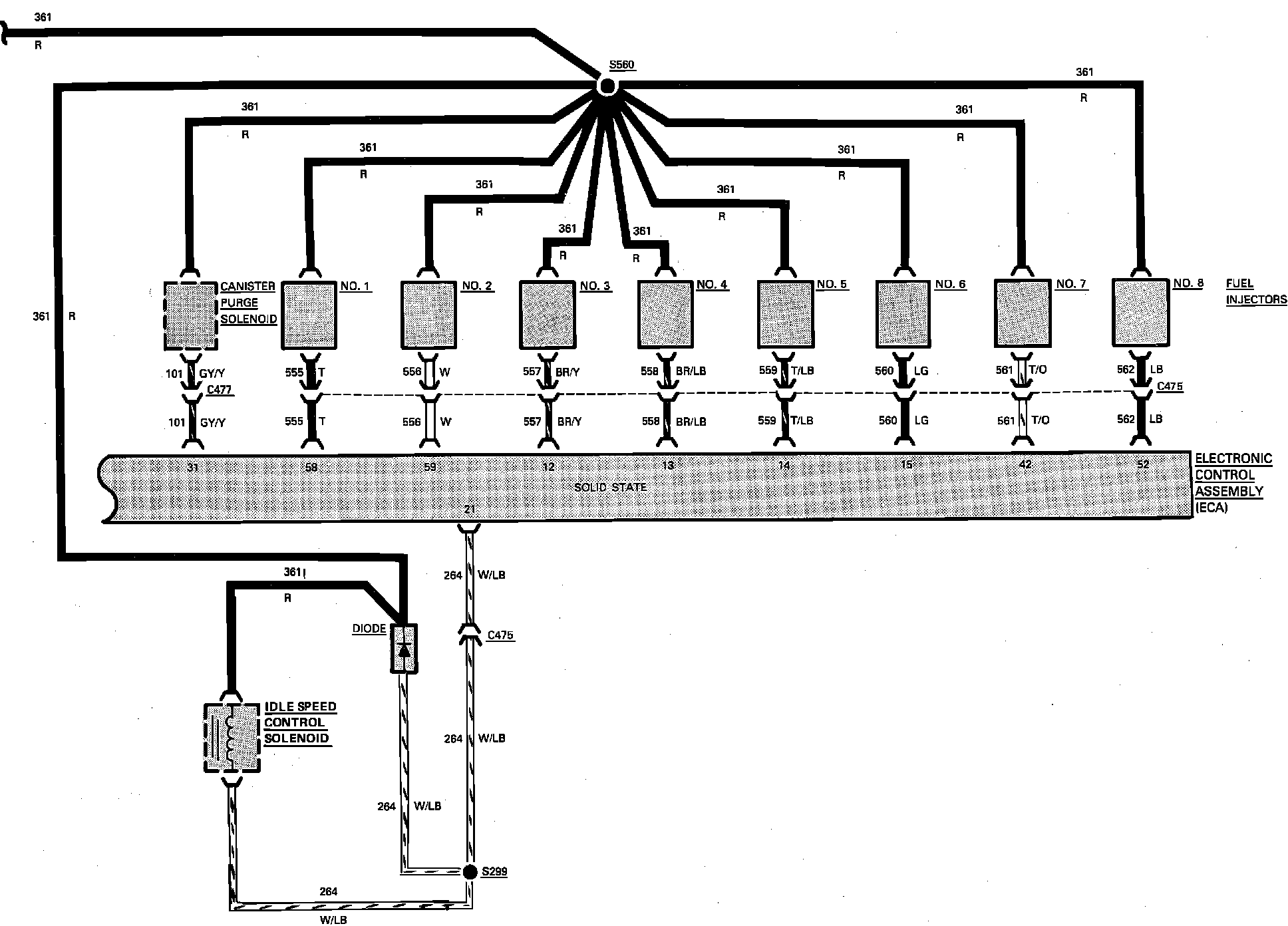

Electronic Engine Control Wiring Circuit (Part 2 of 4):






Electronic Engine Control Wiring Circuit (Part 3 of 4):






Electronic Engine Control Wiring Circuit (Part 4 of 4):
