Elec. Cluster Multi-Gauge, Speedo & Fuel Computer

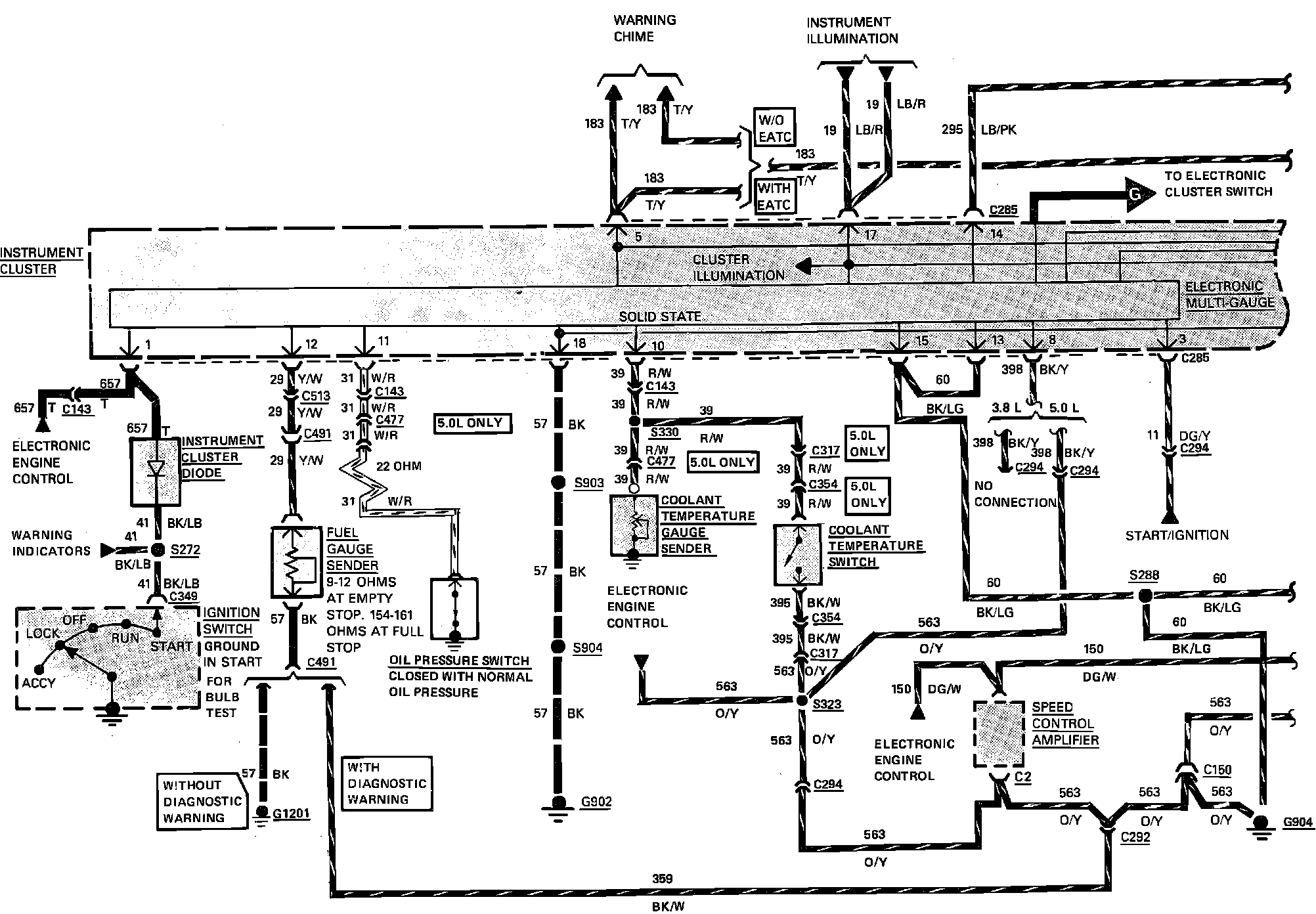

Electronic Cluster Multi-guage, Speedometer-Odometer & Fuel Computer Wiring Circuit (Part 1 of 3):






Part 1 0f 3

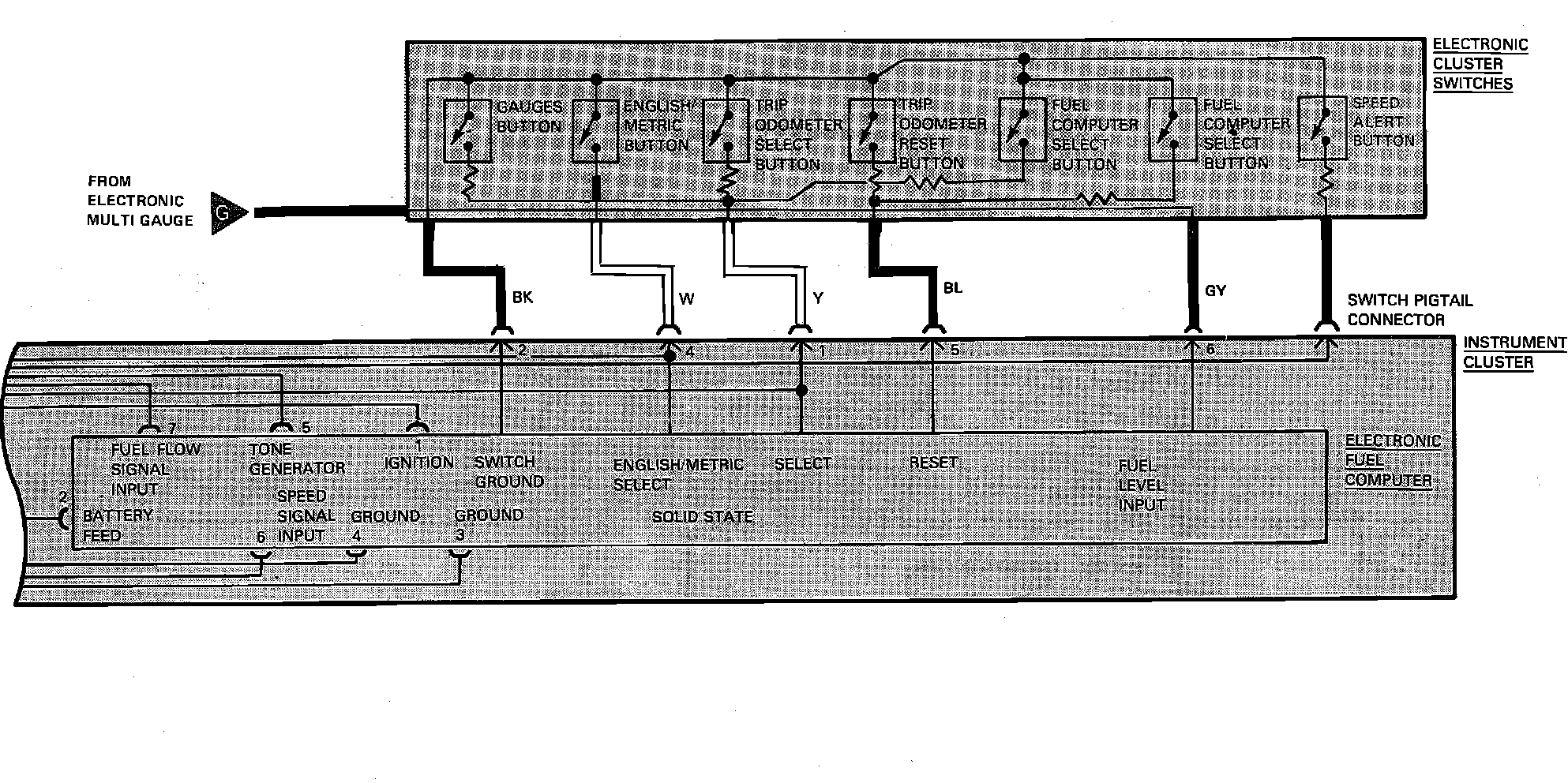

Electronic Cluster Multi-Gauge, Speedometer-Odometer & Fuel Computer Wiring Circuit (Part 2 of 3):





Part 2 0f 3

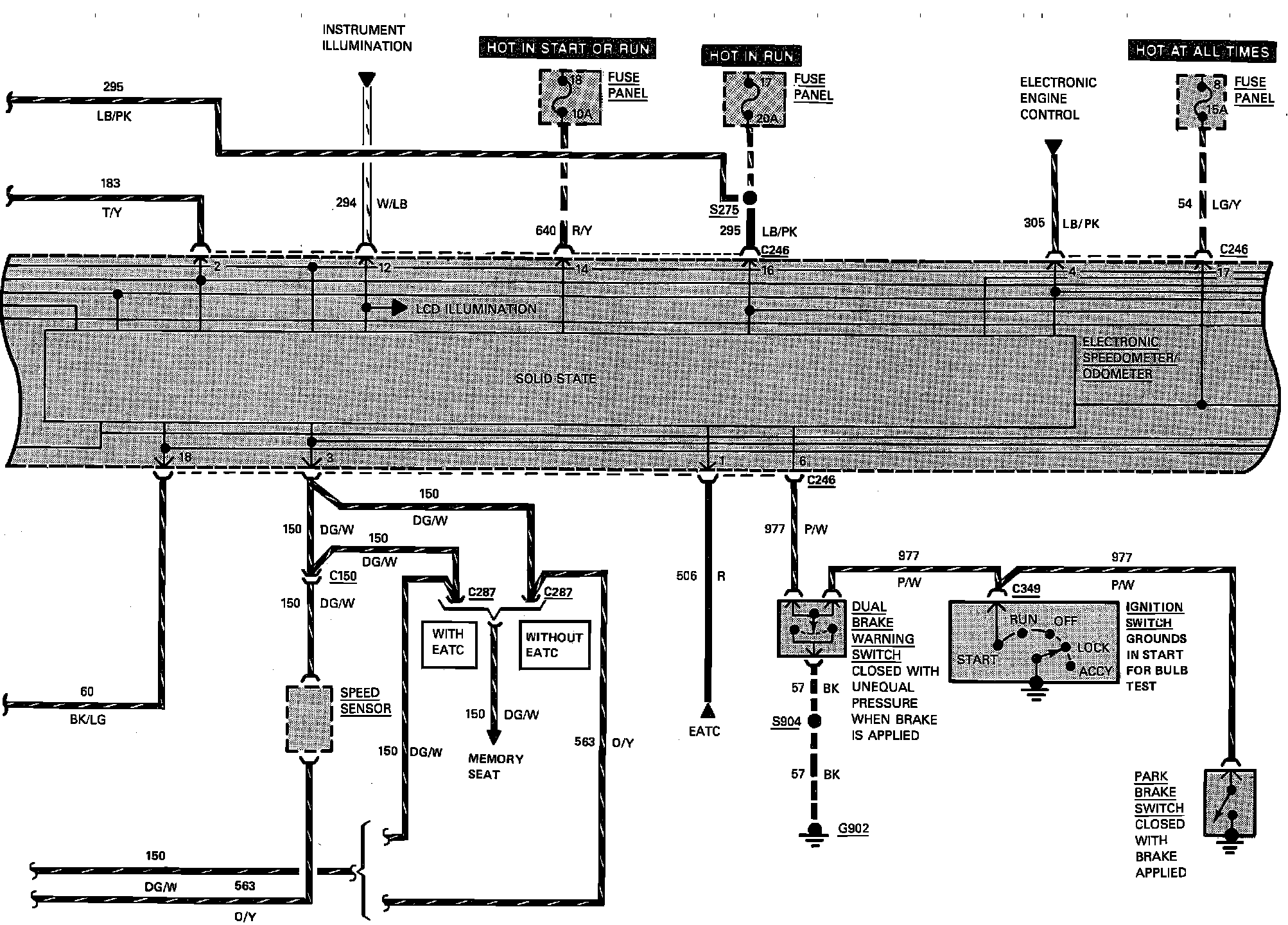

Electronic Cluster Multi-Gauge, Speedometer-Odometer & Fuel Computer Wiring Circuit (Part 3 of 3):






Part 3 0f 3
