Home >> Mercury >> 1988 >> Cougar/XR7 V8-302 5.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD24

DD24

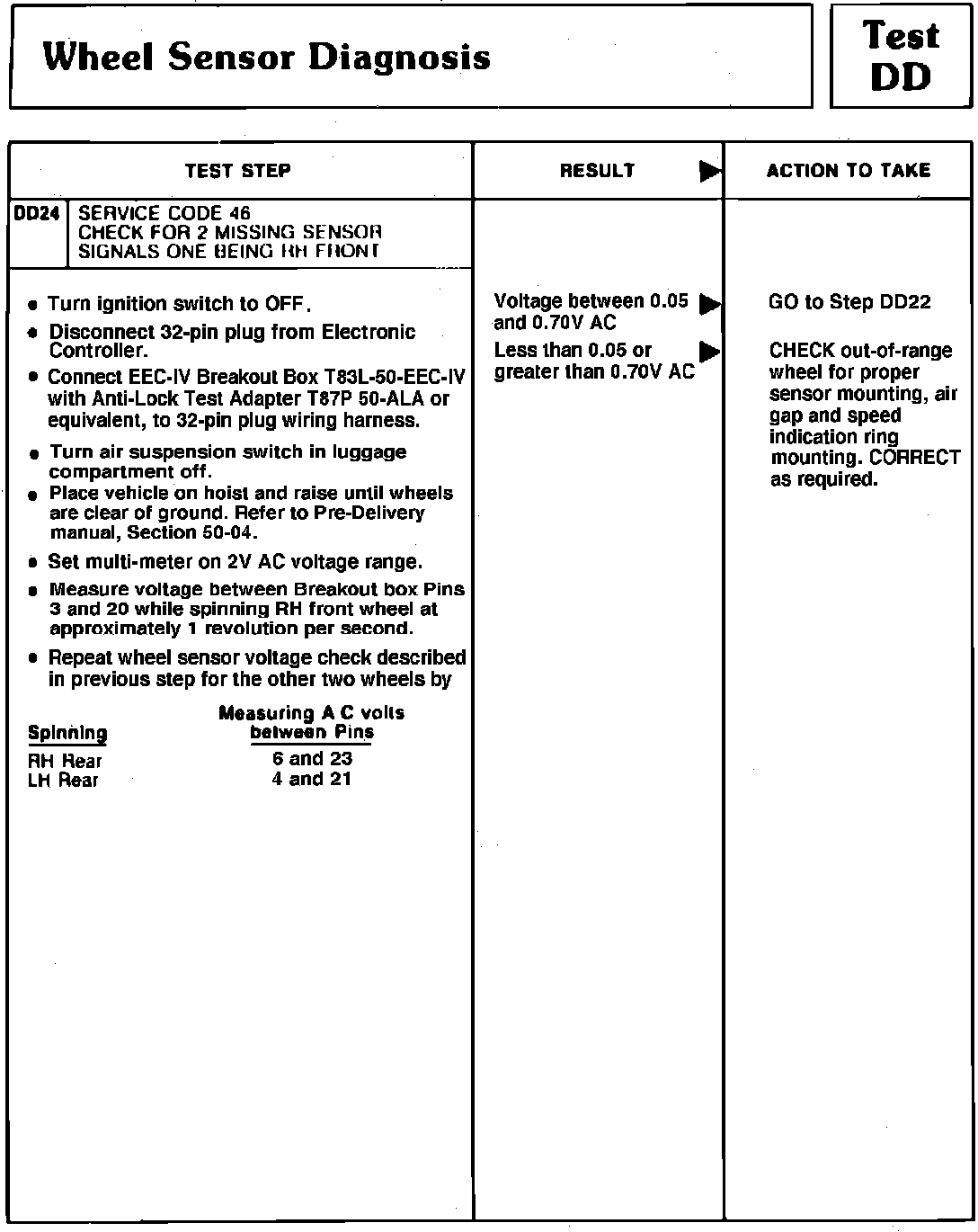

Fig. 15 Test DD, Wheel Sensor Diagnosis (Part 10 Of 12):
