B ABS Warning Indicator on (Brake Indicator Off)
>>
B1, B1A, B2
B1, B1A, B2

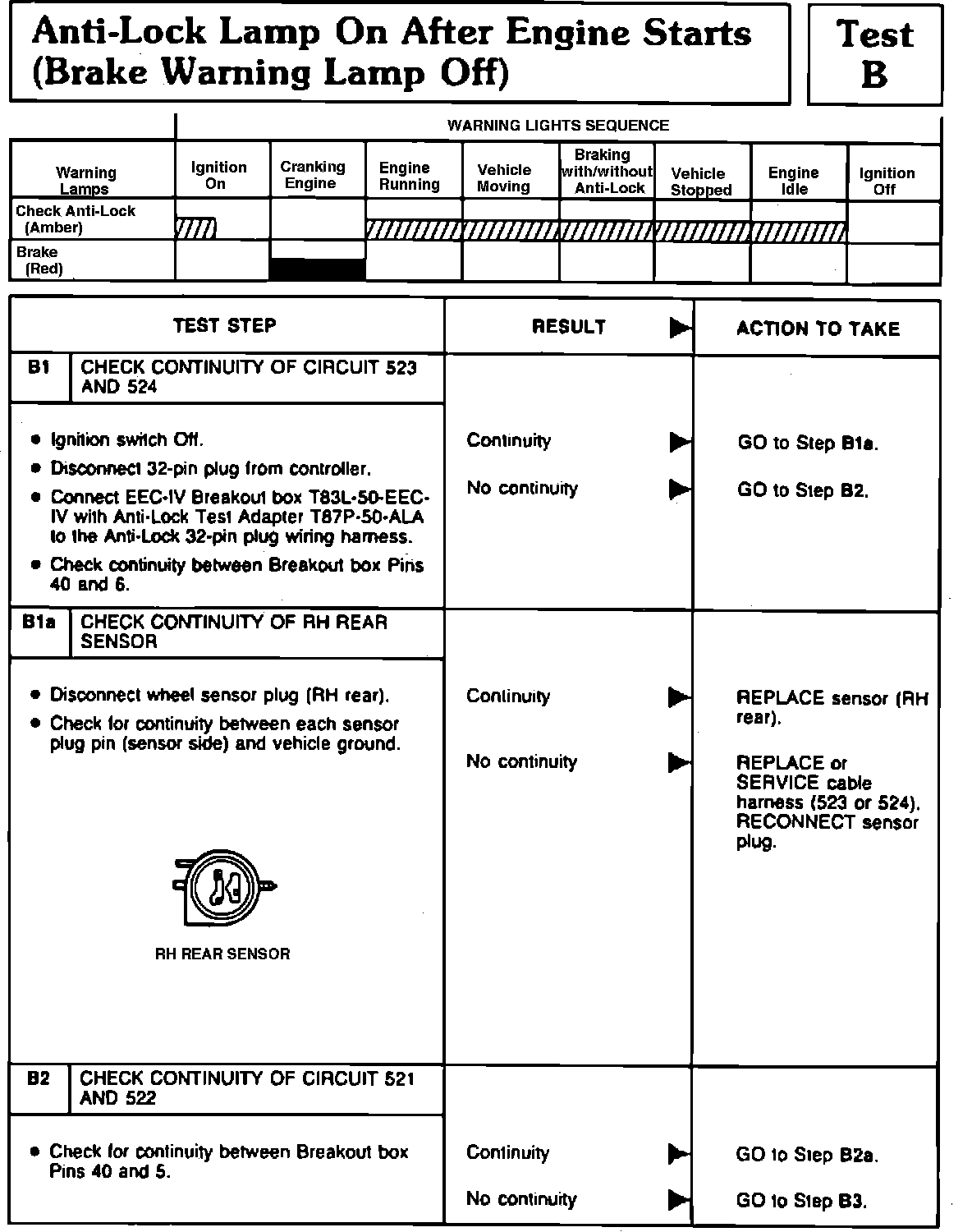

Fig. 24 Test B, ABS Lamp On After Engine Starts (Part 1 Of 3):
