Parking Brake Warning Switch: Locations

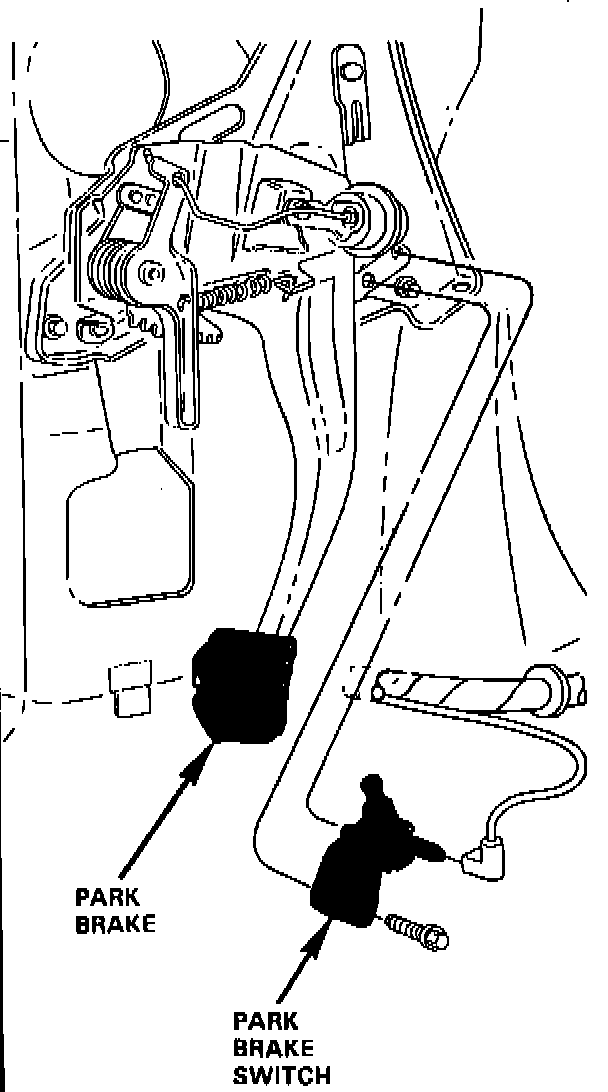

Under LH Side Of I/P:




Under LH Side I/P, At Top Of Parking Brake Assembly
