Without/Keyless-Illum. Entry, Mem. Seat, Power Locks-Windows

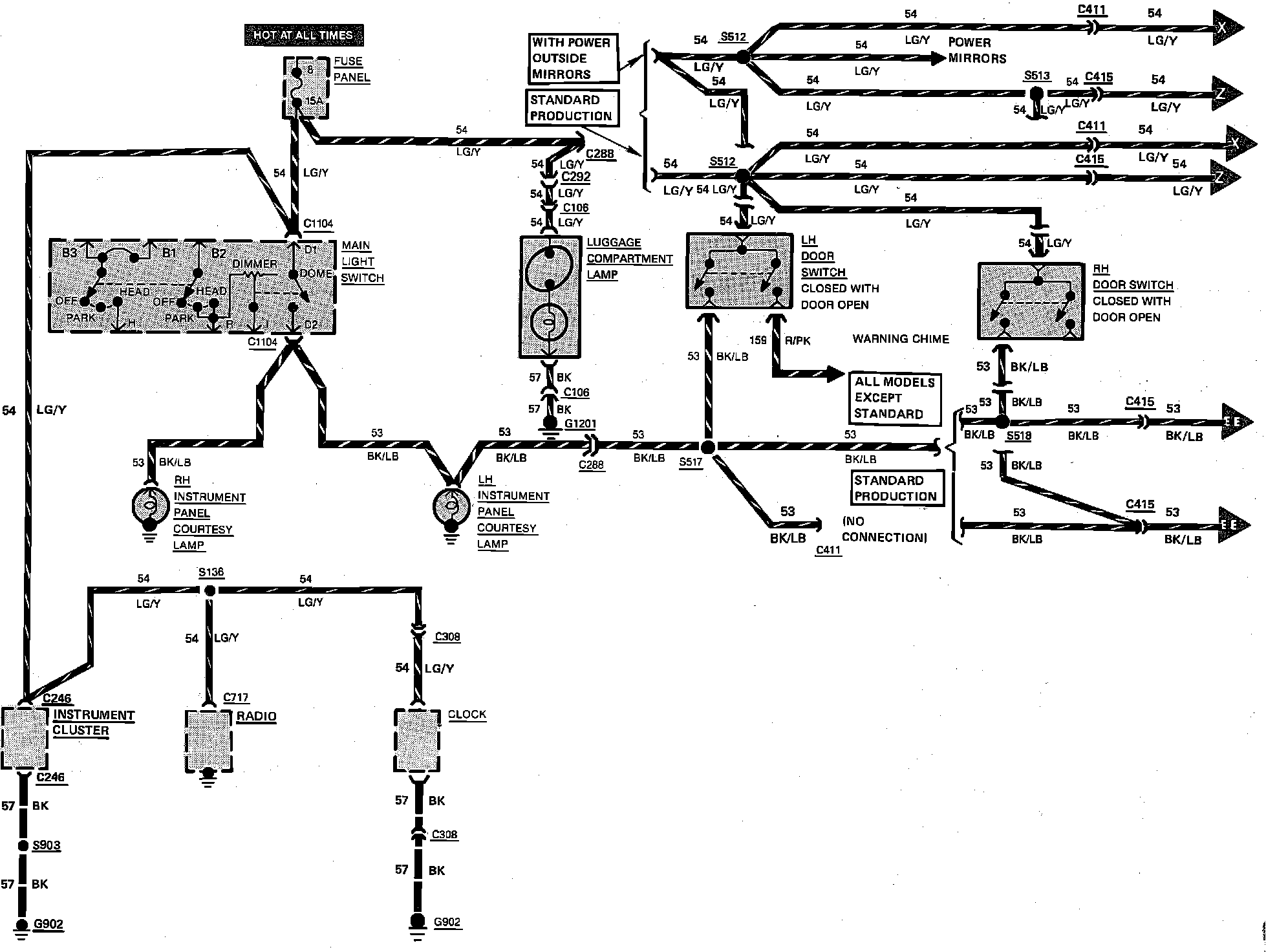

Courtesy Lamps Wiring Circuit. Less Keyless Or Illuminated Entry, Memory Seat, Power Door Locks Or Windows (Part 2 of 2):

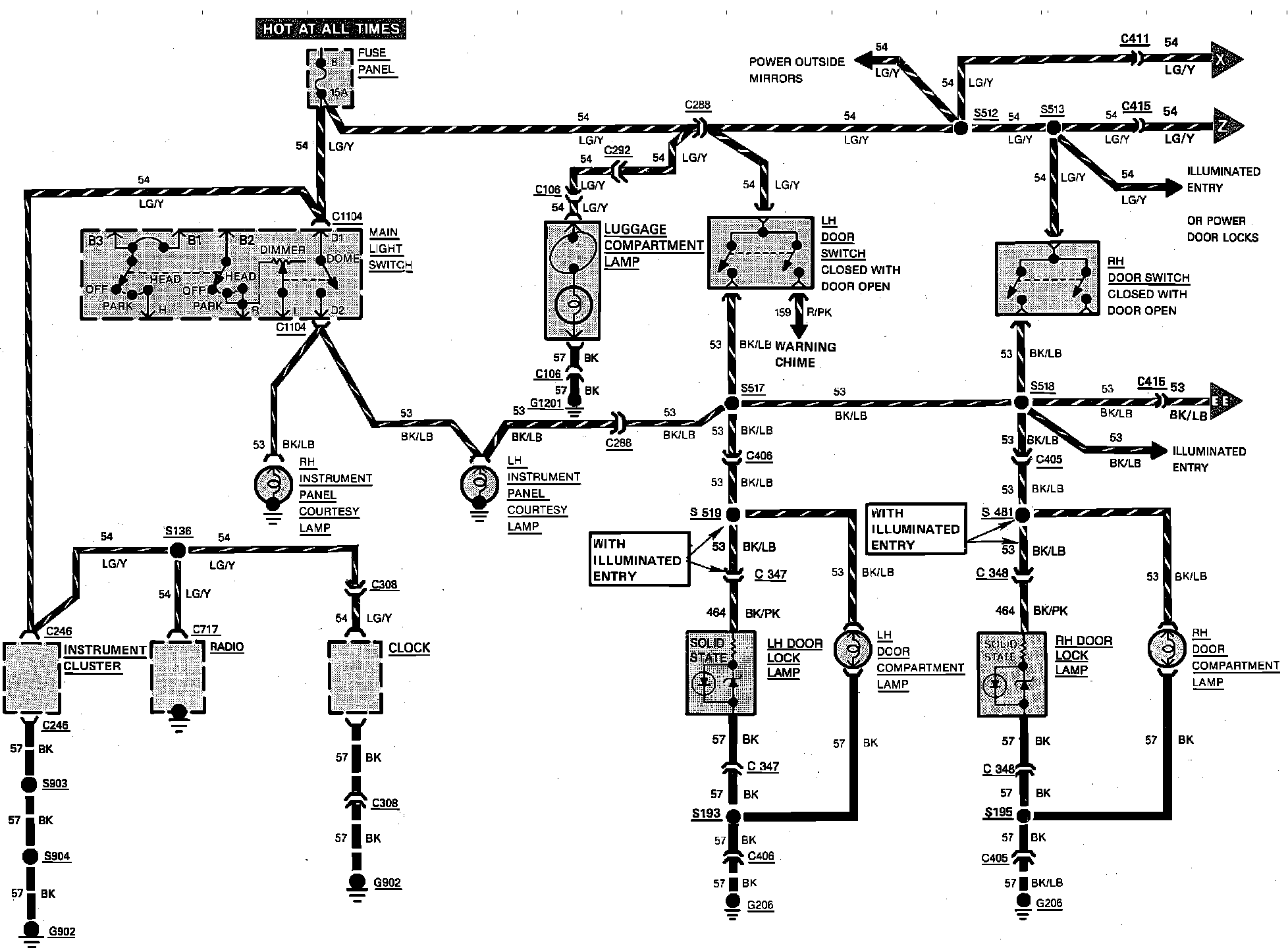

Courtesy Lamps Wiring Circuit. Less Keyless Or Illuminated Entry, Memory Seat, Power Door Locks Or Windows (Part 1 of 2):
