Accumulator HVAC: Locations

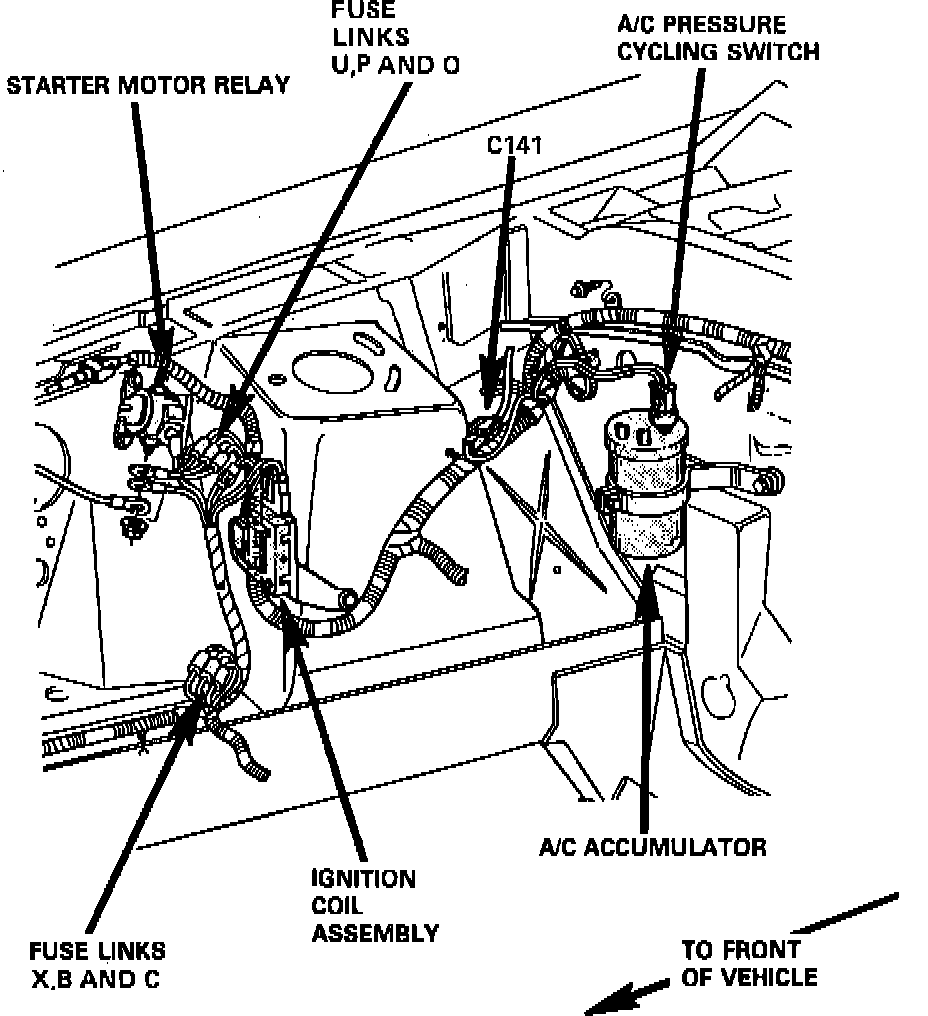

RH Firewall & Fender Apron.:




At RH Side Of Firewall

Applicable to: V6-230/3.8L Engine
